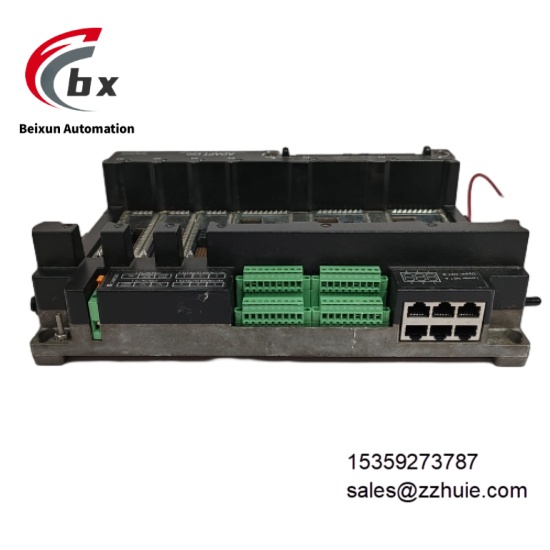

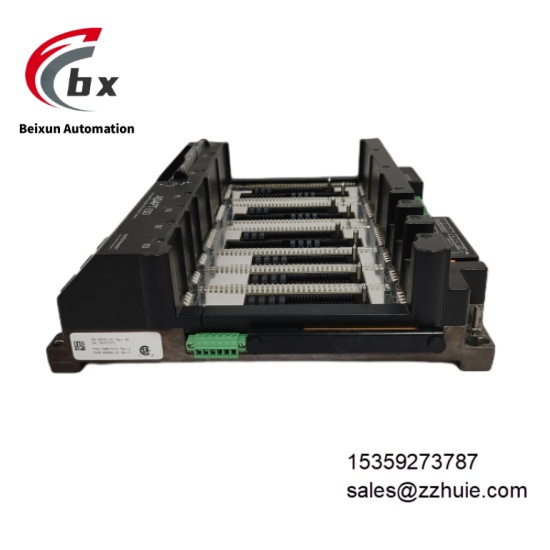

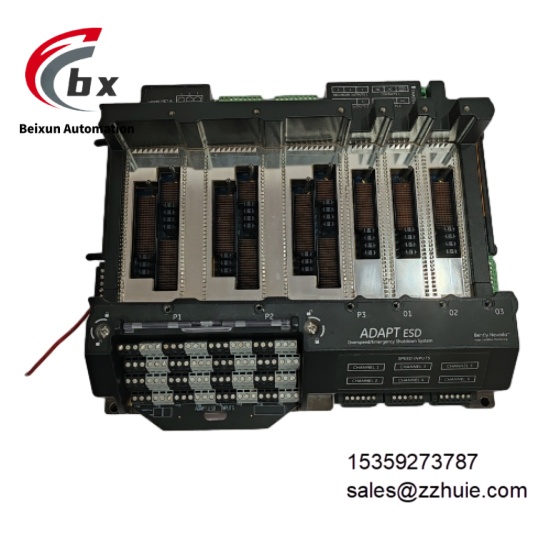

Bently Nevada 3701/55 289761-01 Core module of mechanical equipment protection and emergency shutdown system

Bently Nevada 3701/55 289761-01 Core module of mechanical equipment protection and emergency shutdown system

Specific Parameters

Electrical Parameters

Operating Voltage: 24V DC±10%, compatible with industrial standard power supply systemsInput Channels: Dual vibration measurement channels, 6 independent speed input channels, 32 discrete input channels, 12 configurable 4-20mA analog input channelsMeasurement Types: Vibration (displacement, velocity, acceleration), speed, temperature, pressure, discrete switch signalsMeasurement Range: Vibration displacement 0-2000μm, velocity 0-200mm/s, acceleration 0-50g; speed 0-100000rpmFrequency Response: Vibration measurement 10Hz-10kHz (proximity probe), 2Hz-1kHz (velocity sensor)Measurement Accuracy: ±1% full scale for vibration parameters, ±0.1% full scale for speed measurementSensor Power Supply: Provides -24V DC excitation for proximity probes, no excitation power supply for velocity sensorsOutput Signals: 4 independent 4-20mA analog outputs, 5 SPDT relay outputs (including 4 logic annunciate relays, 1 system status relay)Communication Protocols: Supports Modbus RTU, Ethernet/IP, RS-485, Ethernet, compatible with 3700 series busAlarm Settings: Supports multi-level custom thresholds (warning, danger), compliant with API 670 standardDiagnostic Functions: Integrated diagnosis for sensor faults, module power abnormalities, CPU redundancy mismatch and communication interruption, real-time fault code outputInsulation Resistance: ≥100MΩ between channels and between channels and power supply (measured at 500V DC, normal temperature and state)Voltage Withstand Strength: ≥2500V AC between channels and between channels and power supply (1 minute no breakdown, leakage current ≤1mA)Certification Standards: Compliant with API 670, IEC 61508 SIL 3, CE, UL 508, RoHS 2.0 standards

Mechanical Parameters

Overall Dimensions: 102mm (W) × 152mm (H) × 203mm (D), compact modular designWeight: Approximately 1.5kg, compatible with rack and DIN rail mounting methodsMounting Method: Rack-mounted (compatible with 19-inch standard rack) or DIN rail-mounted, supporting online hot-swappingHousing Material: Die-cast aluminum alloy (main body) + flame-retardant engineering plastic (interface panel), anti-electromagnetic interference and mechanical shockConnection Method: 3 sets of pluggable terminal blocks, compatible with shielded twisted-pair cables and sensor-specific cablesProtection Rating: IP20 (rack-mounted), IP67 (standalone DIN rail-mounted, requiring supporting protective housing)Status Indication: Module-level power (green), fault (red) LEDs; channel-level signal normal (green), alarm (yellow) LEDs

Environmental Parameters

Operating Temperature: -40℃ to +70℃, operation without derating over the entire temperature rangeStorage Temperature: -40℃ to +85℃, meeting extreme storage and transportation requirementsRelative Humidity: 5% to 95% (non-condensing), suitable for high-humidity industrial scenariosVibration Resistance: 3g acceleration at 3Hz-57Hz frequency range, 5g acceleration at 57Hz-500Hz frequency range (sine wave)Shock Resistance: 15g acceleration (half-sine wave, duration 11ms), withstanding shocks during installation and transportationEMC Compliance: Meets EN 55014-1 (emission limits), EN 55014-2 (immunity), EN 61326-1 standardsInstallation Altitude: ≤2000m (normal operation), power derating 10% for every 1000m increase from 2000m to 5000m

Product Performance

Triple modular redundancy architecture: Synchronous signal processing via three CPUs ensures uninterrupted operation under fault conditionsMulti-parameter integrated monitoring: A single module covers vibration, speed, process variables and other signals, reducing system hardware complexityHigh-precision signal processing: Built-in anti-interference filtering algorithm, data reliability up to 99.9% in harsh industrial environmentsFast emergency shutdown response: Shutdown command output response time ≤20ms after fault triggering, avoiding secondary equipment damageStrong system compatibility: Seamless connection with 3700 series modules and 3500 series racks, supporting mainstream industrial communication protocolsHigh maintenance convenience: Hot-swappable design with intuitive LED status indication, fault troubleshooting time ≤15 minutesOutstanding operational stability: Industrial-grade components and wide-temperature adaptation design, Mean Time Between Failures (MTBF) ≥350,000 hours
