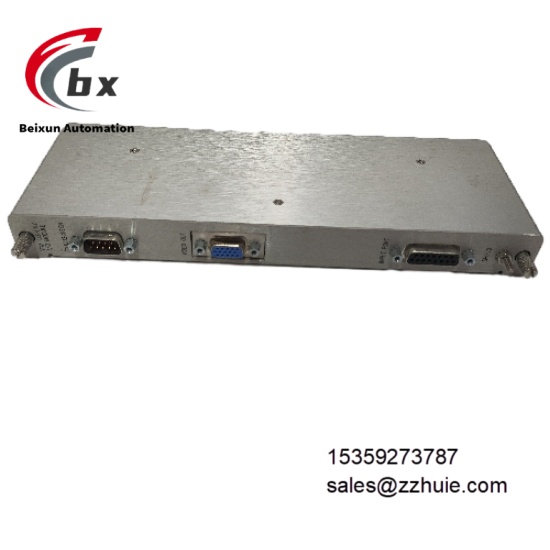

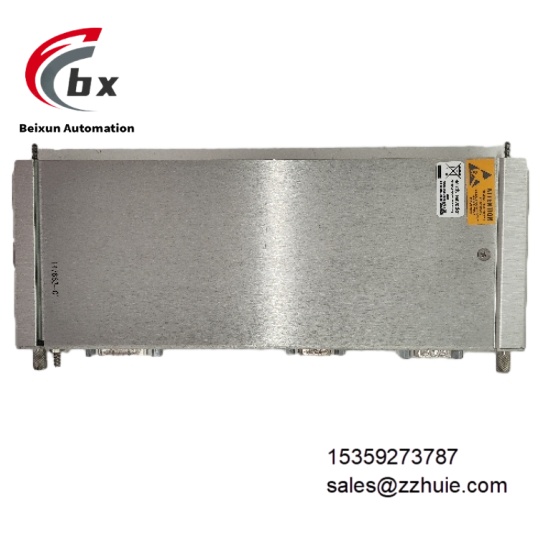

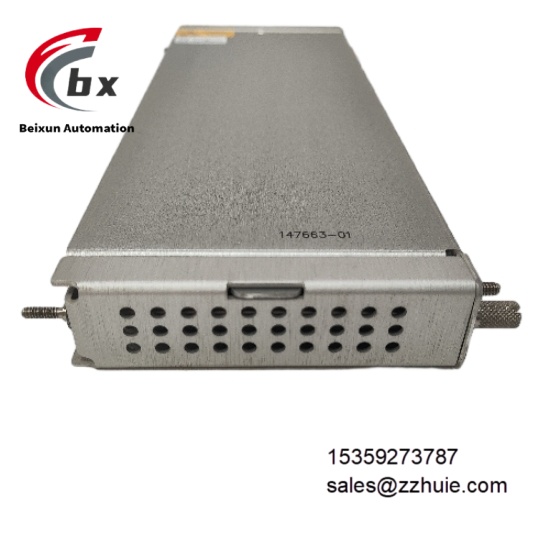

Bently Nevada 3500/94 147663-01 Enhanced VGA display module

Specific Parameters

Electrical Parameters
Supply Voltage: 100-240V AC (50-60Hz) or 24V DC ±10%, supporting dual-voltage automatic switching
Communication Interfaces: 1×10/100Base-T Ethernet (TCP/IP, for rack data interaction), 1×RS422/RS485 (switchable, supporting half-duplex/full-duplex), 1×RS232 (maintenance port)
Relay Output: 4 independent SPDT relays (contact rating 2A@250V AC), contact life ≥100,000 times
Display Parameters: Color VGA display (resolution 640×480), 5.7-inch resistive touch screen (supporting single-point/multi-point touch), brightness ≥300cd/㎡
Storage Capacity: 32MB Flash memory (for configuration files and historical display data storage, power-off retention ≥100 hours)
Isolation Level: 2kV AC between communication interfaces and system (1 minute), 2.5kV AC between relay output and control circuit (1 minute)
Protection Functions: Overvoltage protection (≤35V DC), ESD protection (±15kV contact discharge), reverse polarity protection
Power Consumption: ≤5W under normal operation, ≤1.5W in standby mode
Environmental Parameters
Operating Temperature: 0°C to 65°C (in-frame installation environment, supporting -10°C low-temperature startup)
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation, continuous operation at 40°C/90% humidity)
EMC Immunity: Compliant with EN 61326-1 (industrial grade), common mode rejection ratio ≥130dB, differential mode rejection ratio ≥80dB
Vibration Resistance: 5-500Hz, 1g acceleration (IEC 60068-2-6, sinusoidal vibration, no performance attenuation)
Shock Resistance: 15g acceleration, 11ms duration (IEC 60068-2-27, half-sine shock, no hardware damage)
Protection Class: IP20 (module itself, dependent on 3500 frame protection)
Certification Standards: CE, ATEX Zone 2, Class I Div 2
Mechanical Parameters
Dimensions: 24.4mm (W) × 241.3mm (H) × 245mm (D) (precisely fits the full-height slot of 3500 series standard frame)
Weight: Approximately 0.75kg
Mounting Method: Front slot mounting of 3500 series standard frame (compatible with 19-inch cabinets, no additional fixtures required)
Housing Material: Flame-retardant reinforced nylon (UL 94 V-0 grade, oil-resistant and chemical corrosion-resistant)
Display Distance: Standard cables support a maximum display distance of 15m from the rack; 305m remote display supported with KVM extender
Indicators: Module OK (green), communication status (green/orange), bypass (yellow), fault (red) LEDs

Product Performance

The module adopts a dedicated graphics processing chip with a data refresh rate ≤180ms, which can synchronously display all monitoring parameters in the 3500 frame in real time (including vibration peak-to-peak/effective value, shaft displacement, differential expansion, bearing temperature, and equipment status word). The touch screen response time is ≤40ms with no operation delay. It supports custom configuration of display language (Chinese/English/German, etc.), data units, and alarm colors through 3500 configuration software. 12 custom screens can be edited directly locally, and data can be displayed by categories such as “equipment group”, “parameter type”, and “alarm level”.

The API 670-compliant screen provides “3300-style” bar graph and numerical dual display, and the direct value, gap value, and OK/alarm/trip status of each slot module are intuitively presented. Clicking the module icon to view channel details is supported. With a display router box, it can realize centralized monitoring of 4 3500 racks, with a rack switching response time ≤250ms. The currently monitored rack address and total number of alarms are displayed in real time in the top status bar of the screen.

Integrated with a full-link self-diagnostic system, it real-time monitors the status of the display unit, communication link, touch screen, and power supply, with a fault diagnosis coverage rate ≥99%. In case of a fault, triple alarms are issued through LED indicator flashing, screen pop-ups, and system bus, facilitating quick problem location. It is fully compatible with all series of modules such as 3500/15 frame interface module and 3500/42 vibration monitoring module, and can be integrated into the existing 3500 system without additional drivers.
