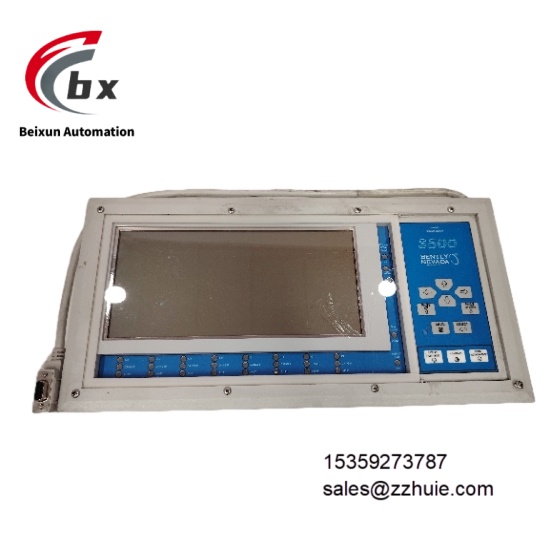

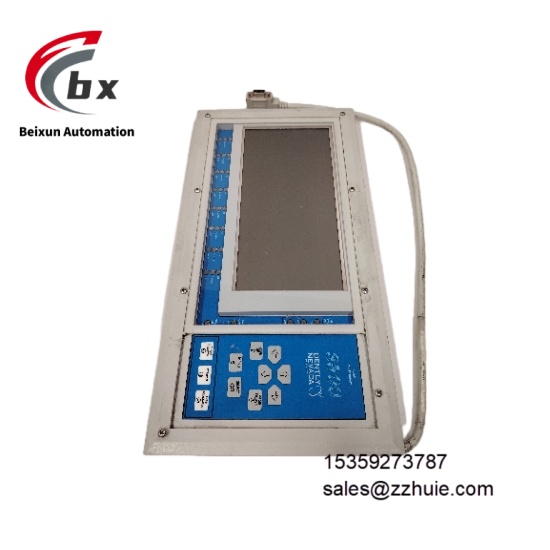

Bently Nevada 3500/93 135785-02C Mechanical protection system display device kit

Specific Parameters

3500/93 Display Unit
Electrical Parameters
Power Supply: Supports 3500 system rack power supply and external power (115Vac/230Vac)
Power Consumption: Maximum 12.0W (including backlight)
Communication Interface: RS422 serial interface, supporting Bently Nevada proprietary protocol and Modbus® protocol
Display Parameters: 640×200 dot transmissive LCD with backlight adjustment
Indicator Elements: 8 groups of OK/Warning/Danger LED indicators, 1 group of new alarm LED indicator
Data Update Rate: 1 second/system status refresh
Protection Functions: Interface overvoltage protection, ESD protection compliant with EN 61000-4 standard
Environmental Parameters
Operating Temperature: -20°C to 65°C
Storage Temperature: -30°C to 80°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61326-1 industrial grade standard
Vibration Resistance: 10-500Hz, 2g acceleration (compliant with IEC 60068-2-6 standard)
135785-02C Dedicated Terminal Board
Electrical Parameters: Supports signal transfer between display unit and system rack, inter-channel electrical isolation
Mechanical Parameters: Integrates cable interfaces and fixing brackets, adapting to multiple installation scenarios
Terminal Configuration: Spring-loaded crimp terminals, compatible with 16-22 AWG wires
Mounting Adaptation: Supports front/rear I/O module connection of rack, maximum cable length 4000 feet (requires adapter)
Overall Mechanical Parameters
Display Unit Dimensions: 203.2mm×412.8mm×31.2mm (H×W×D)
Display Unit Weight: 2.1kg
Mounting Method: Supports hinged rack mounting, 19-inch EIA rail mounting, panel cutout mounting and wall standalone mounting
Protection Class: IP20 (display unit itself)
Housing Material: Flame-retardant alloy material (UL 94 V-0 grade)

Product Performance

The kit adopts high-contrast transmissive LCD display with 640×200 resolution to ensure clear presentation of alarm event lists and channel data. Backlight adjustment function adapts to different lighting environments. 8 groups of tri-color LED indicators map system status in real time, with independent flashing of new alarm LED, ensuring alarm visual response time ≤1 second.

High-speed data interaction with 3500 rack is realized through RS422 interface, supporting Modbus protocol integration into third-party control systems with data transmission delay ≤1 second. Four mounting methods meet diversified needs from local cabinet monitoring to remote control room deployment, with maximum 4000-foot cable distance adapting to large industrial plant layouts.

Wide temperature design and EMC optimization ensure stable operation in -20°C to 65°C environment, with mean time between failures (MTBF) ≥300,000 hours. The display unit works with Display Interface Module (DIM) to support online configuration updates and fault self-diagnosis, with diagnostic information intuitively fed back through LED indicators.
