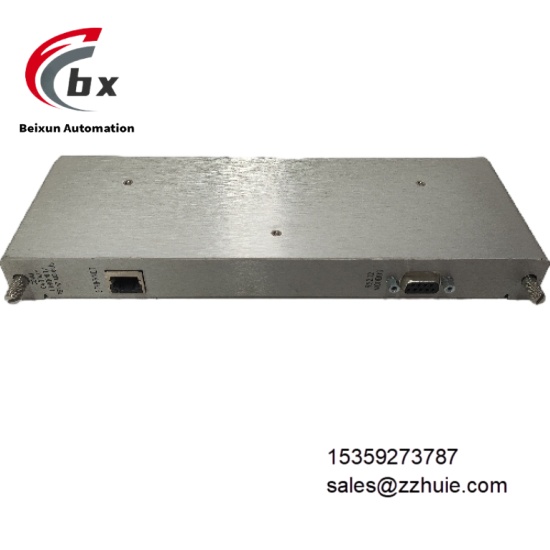

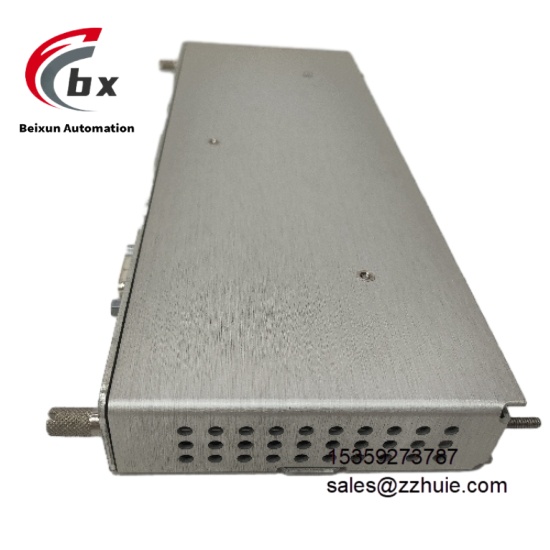

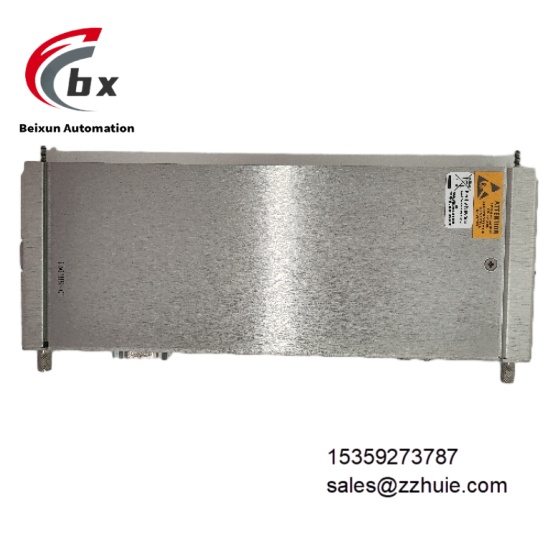

Bently Nevada 3500/92 136188-01 Enhanced redundant communication gateway module

Specific Parameters

Electrical Parameters
Supply Voltage: 24V DC ±10%, uniformly powered by 3500 system rack (supports dual-channel redundant power input)
Communication Interfaces: 2×10/100Base-T Ethernet (RJ45, support link redundancy), 1×RS422/RS485 (switchable half-duplex/full-duplex), 1×RS232 (maintenance port)
Supported Protocols: Modbus TCP, Modbus RTU, OPC UA, Ethernet/IP, Bently Nevada 3500 System Protocol, DNP3.0
Data Transmission Rate: Up to 100Mbps for Ethernet, up to 230.4kbps for serial interface
Data Caching: Local support for 2000 historical event records (with 1ms precision timestamp, power-off retention ≥72 hours)
Isolation Level: 2.5kV AC between communication interfaces and system (1 minute), 1.5kV AC between Ethernet interfaces (1 minute), 1kV AC between serial interfaces (1 minute)
Protection Functions: Overvoltage protection (≤35V DC), surge protection (IEC 61000-4-5, ±2kV), ESD protection (±15kV contact discharge), reverse polarity protection
Power Consumption: ≤8W under normal operation, ≤12W in redundant mode
Environmental Parameters
Operating Temperature: -30°C to 65°C (in-frame installation, supports -40°C low-temperature startup, continuous operation at 65°C high temperature)
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation, stable operation at 40°C/90% humidity)
EMC Immunity: Compliant with EN 61326-1 (industrial grade), common mode rejection ratio ≥130dB, differential mode rejection ratio ≥80dB
Vibration Resistance: 5-500Hz, 1g acceleration (IEC 60068-2-6, sinusoidal vibration, no performance attenuation)
Shock Resistance: 15g acceleration, 11ms duration (IEC 60068-2-27, half-sine shock, no hardware damage)
Protection Class: IP20 (module itself, dependent on 3500 frame protection)
Certification Standards: API 670, IEC 61508 SIL 2, CE, ATEX Zone 2, Class I Div 2
Mechanical Parameters
Dimensions: 24.4mm (W) × 241.3mm (H) × 250mm (D) (precisely fits 3500 series standard frame slots, no installation gap)
Weight: Approximately 0.85kg
Mounting Method: 3500 series standard frame slot mounting (compatible with 19-inch cabinets, supports hot swapping, no power-off required for replacement)
Housing Material: Flame-retardant reinforced nylon (UL 94 V-0 grade, oil-resistant, chemical corrosion-resistant)
Terminal Type: Gold-plated plug-in terminals (contact resistance ≤10mΩ, compatible with 18-24 AWG wires)
Indicators: Power (PWR, green), Ethernet 1/2 communication (ETH1/ETH2, green/orange), serial communication (SER, green/orange), fault (FAULT, red), redundancy status (RED, yellow)

Product Performance

The module adopts a dual-protocol processor parallel architecture, with protocol conversion response time ≤8ms, which can synchronize all monitoring data in the 3500 frame in real time (including vibration peak-to-peak, shaft displacement, differential expansion, bearing temperature, equipment status word), and data transmission delay ≤50ms to ensure the real-time performance of remote monitoring. It supports custom data acquisition cycles (100ms-10s adjustable) and data filtering rules, transmitting only valid monitoring data, reducing network bandwidth usage by ≥30%.

It has Ethernet link redundancy and data path redundancy. When the main link fails, it automatically switches to the backup link with switching time ≤30ms; combined with the local data breakpoint resume mechanism, it can recover all monitoring data during the link interruption period to ensure no data loss. Integrated with a full-link self-test system, it real-time monitors the status of communication interfaces, protocol stacks, power supply circuits, and frame bus connections, with fault diagnosis coverage ≥99.5%. Fault information is fed back through three channels: LED indicators, system bus, and external alarm terminals, facilitating quick problem location.

Fully compatible with Bently Nevada System 1® equipment health management software and third-party DCS (Siemens PCS 7, Rockwell PlantPAx, Emerson DeltaV), it supports online configuration of communication parameters, protocol mapping, and redundancy strategies through a web interface or System 1® software, with no shutdown required for configuration updates. The mean time between failures (MTBF) is ≥500,000 hours, meeting the 24/7 continuous operation needs of industrial scenarios.
