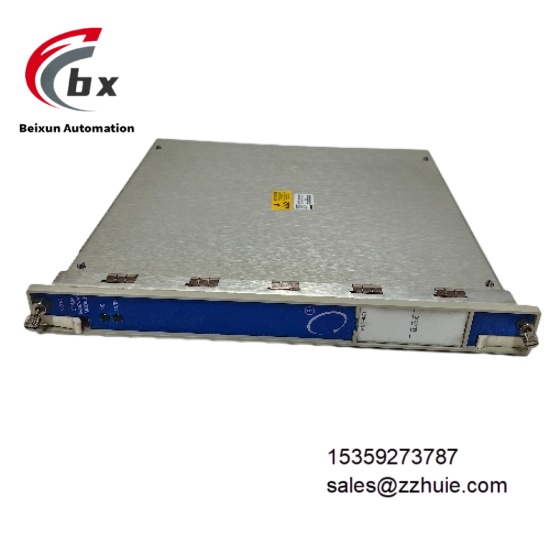

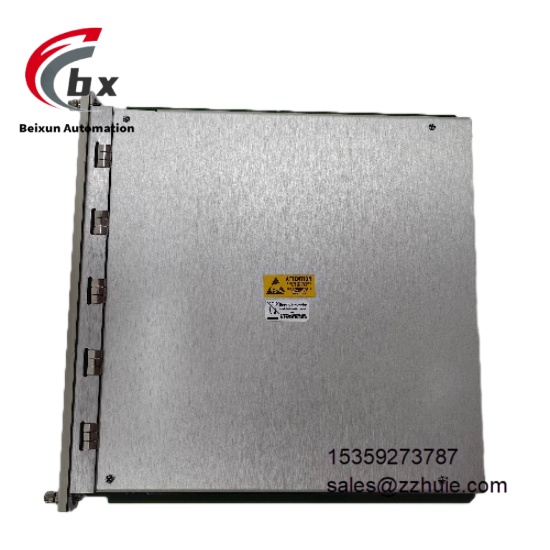

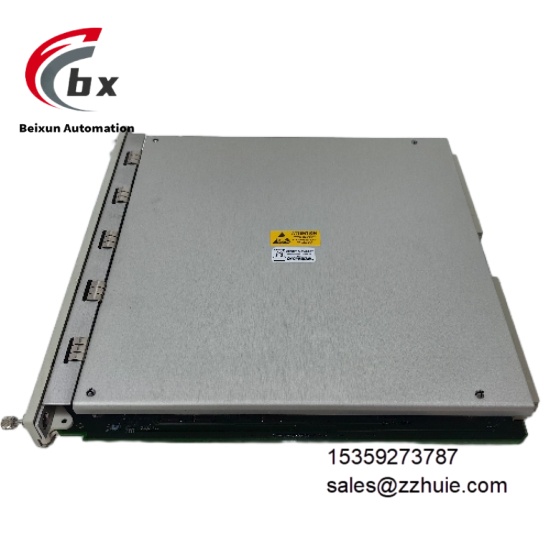

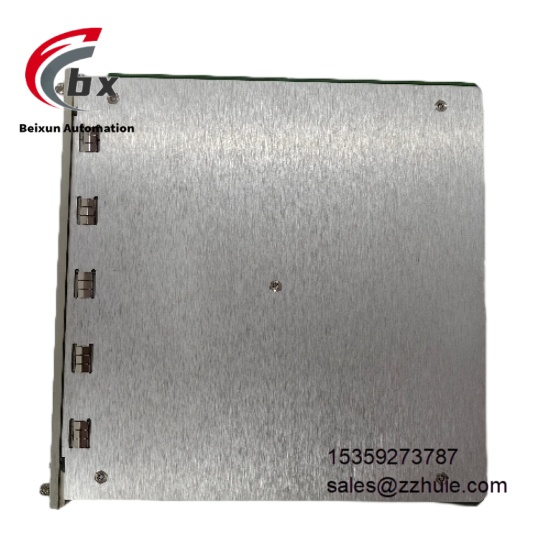

Bently Nevada 3500/92 136180-01 Redundant Communication Gateway Module

Specific Parameters

Electrical Parameters
Supply Voltage: 24V DC ±10%, uniformly powered by 3500 system rack (supports redundant power input)
Communication Interfaces: 1×RS232, 1×RS422/RS485 (switchable), 1×10/100Base-T Ethernet (RJ45)
Supported Protocols: Modbus RTU, Modbus TCP, Ethernet/IP, OPC UA/DA, Bently Nevada proprietary protocol
Data Transmission Rate: Up to 100Mbps for Ethernet, up to 230.4kbps for serial interface
Data Capacity: Supports local caching of 1000 historical event records (with 1ms precision timestamp)
Isolation Level: 2.5kV AC between communication interfaces and system (1 minute), 1.5kV AC between serial interfaces (1 minute)
Protection Functions: Overvoltage protection (≤35V DC), surge protection (IEC 61000-4-5, ±2kV), ESD protection (±15kV contact discharge)
Power Consumption: ≤6W under normal operation, ≤10W in redundant mode
Environmental Parameters
Operating Temperature: -30°C to 65°C (in-frame installation environment, supports -40°C low-temperature startup)
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation, supports continuous operation at 40°C/90% humidity)
EMC Immunity: Compliant with EN 61326-1 (industrial grade), common mode rejection ratio ≥130dB
Vibration Resistance: 5-500Hz, 1g acceleration (IEC 60068-2-6, sinusoidal vibration)
Shock Resistance: 15g acceleration, 11ms duration (IEC 60068-2-27, half-sine shock)
Protection Class: IP20 (module itself, dependent on 3500 frame protection)
Certification Standards: API 670, IEC 61508 SIL 2, CE, ATEX Zone 2
Mechanical Parameters
Dimensions: 24.4mm (W) × 241.3mm (H) × 241.8mm (D) (precisely fits 3500 series standard frame slots)
Weight: Approximately 0.82kg
Mounting Method: 3500 series standard frame slot mounting (compatible with 19-inch cabinets, supports hot swapping)
Housing Material: Flame-retardant reinforced nylon (UL 94 V-0 grade, chemical corrosion resistant)
Terminal Type: Gold-plated plug-in terminals (reduces contact resistance), compatible with 18-24 AWG wires
Indicators: Power (PWR), Ethernet communication (ETH), serial communication (SER), fault (FAULT), redundancy status (RED) LEDs

Product Performance

The module adopts a dual-protocol processor parallel architecture with protocol conversion response time ≤10ms, which can synchronize all monitoring data in the 3500 frame in real time (including vibration peak-to-peak, shaft displacement, differential expansion, bearing temperature, and equipment status word), with data transmission delay ≤100ms to ensure the real-time performance of remote monitoring. It supports custom data acquisition cycles (100ms-10s adjustable) and data filtering rules to reduce invalid data transmission and lower network bandwidth occupation.

Equipped with link redundancy function, it automatically switches to the backup link when the main link fails, with switching time <50ms. Combined with the data breakpoint resume mechanism, it ensures no data loss. Integrated with a full-link self-test system, it real-time monitors communication interface status, protocol stack operation integrity, module power supply, and bus connection with the 3500 frame, with fault diagnosis coverage ≥99%. Fault information can be fed back through three channels: LED indicators, system bus, and external alarm terminals.

Fully compatible with Bently Nevada System 1® equipment health management software and third-party DCS (such as Siemens PCS 7, Rockwell PlantPAx), it supports online configuration of communication parameters, protocol mapping, and redundancy strategies through a web interface or System 1® software, enabling configuration updates without shutdown. The mean time between failures (MTBF) is ≥500,000 hours, meeting the 24/7 continuous operation needs of industrial scenarios.
