Bently Nevada 3500/91M 190782-01 Mechanical Monitoring System Ethernet Communication Module Kit

Specific Parameters

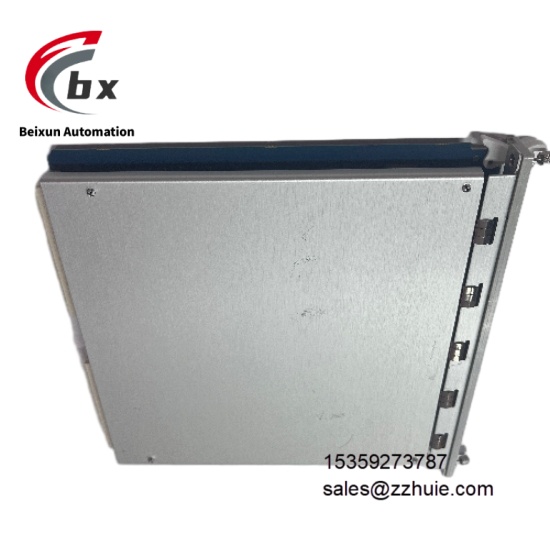

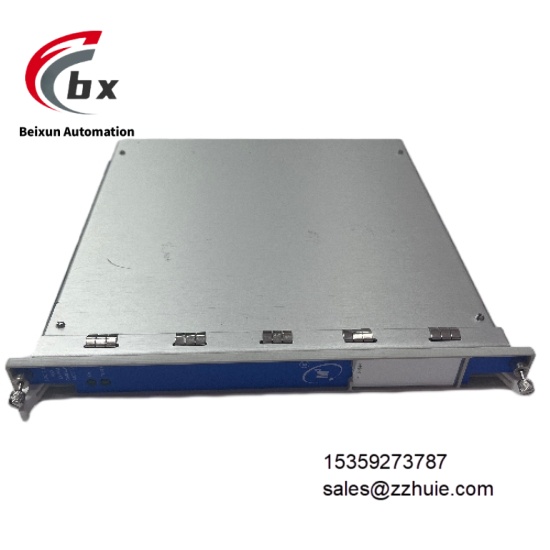

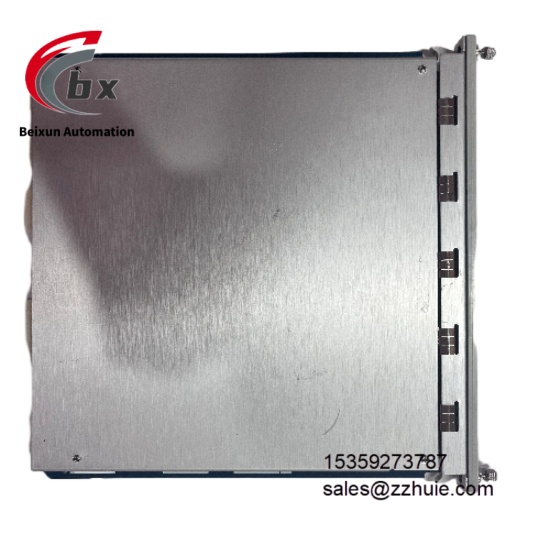

3500/91M Communication Module
Electrical Parameters
Supply Voltage: 5V DC ±5% (provided by 3500 system rack)
Communication Interfaces: 2×Gigabit Ethernet ports (RJ45, link redundancy supported)
Protocol Support: PROFINET IO, Modbus TCP, EtherNet/IP, Bently Nevada proprietary protocol
Data Transmission: Maximum transmission rate 1Gbps, frame aggregation and flow control supported
Isolation Level: 5kV AC between Ethernet interface and system (1 minute)
Synchronization Function: IEEE 1588 PTPv2 precise time synchronization (accuracy ±1μs)
Protection Functions: Port overvoltage protection (≤36V DC), network storm suppression, short circuit protection
Power Consumption: ≤6W under normal operation
Environmental Parameters
Operating Temperature: 0°C to 65°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61326-1 (industrial grade), IEC 61000-4-2/4/6
Vibration Resistance: 10-500Hz, 2g acceleration (compliant with IEC 60068-2-6)
190782-01 Dedicated Interface Component
Electrical Parameters: Ethernet signal filtering and impedance matching supported, compatible with CAT6/CAT5e cables
Mechanical Parameters: Dimensions 80mm×60mm×20mm, weight approximately 80g
Interface Configuration: 2×RJ45 adapter terminals with shielded ground terminal
Mounting Adaptation: Side-mounted on 3500 system rack, supporting cable fixation and anti-loosening design
Overall Mechanical Parameters
Module Dimensions: 40mm (W) × 160mm (H) × 220mm (D)
Module Weight: Approximately 450g
Mounting Method: 3500 system rack standard slot mounting
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant aluminum alloy (UL 94 V-0 grade)

Product Performance

The kit adopts dual gigabit Ethernet port design, supporting link redundancy and automatic switching with switching time ≤10ms, ensuring uninterrupted data transmission. Compatible with multiple industrial protocols, it can seamlessly connect to mainstream monitoring platforms such as GE Predix and Siemens WinCC, with data transmission delay ≤2ms, and a single module can process 1000 monitoring data records per second.

Integrated with IEEE 1588 PTPv2 precise time synchronization function, it achieves timestamp consistency of multi-module data acquisition, providing accurate timing basis for equipment fault traceability. Supports online firmware upgrade and configuration parameter download, with no data transmission interruption during upgrade, and firmware update time ≤30 seconds.

Built-in comprehensive self-diagnosis functions, it can real-time monitor port connection status, network bandwidth utilization and protocol communication abnormalities, with diagnostic coverage ≥99%. Fault status is fed back through dual channels of module LED indicators (Link/Activity/Error) and system bus. Wide temperature adaptability and high isolation level design ensure stable operation in industrial strong electromagnetic environments, with overall mean time between failures (MTBF) ≥400,000 hours.
