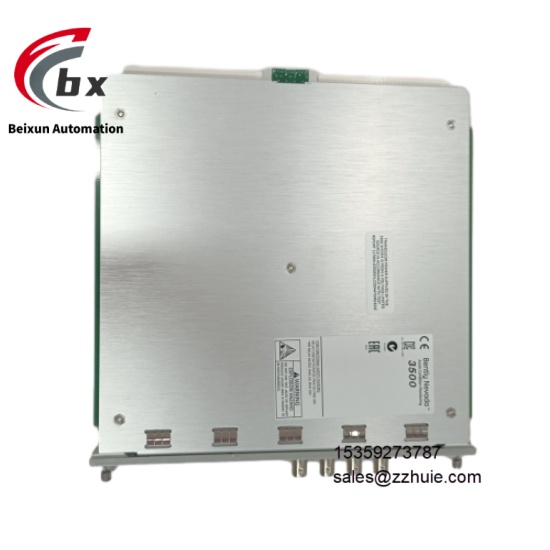

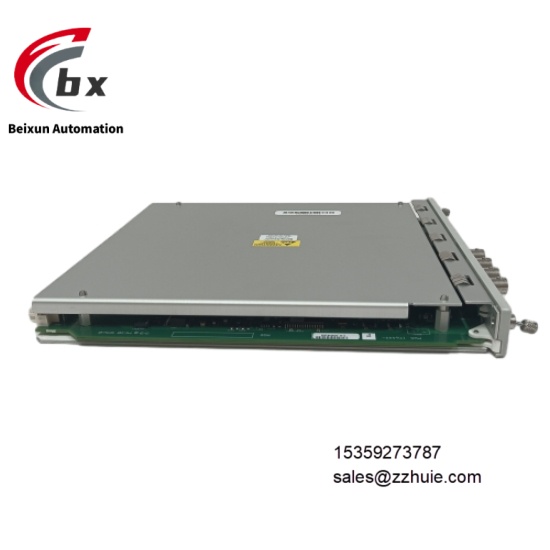

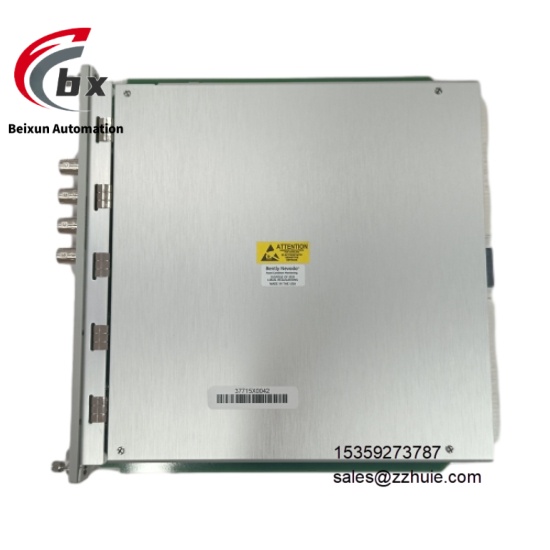

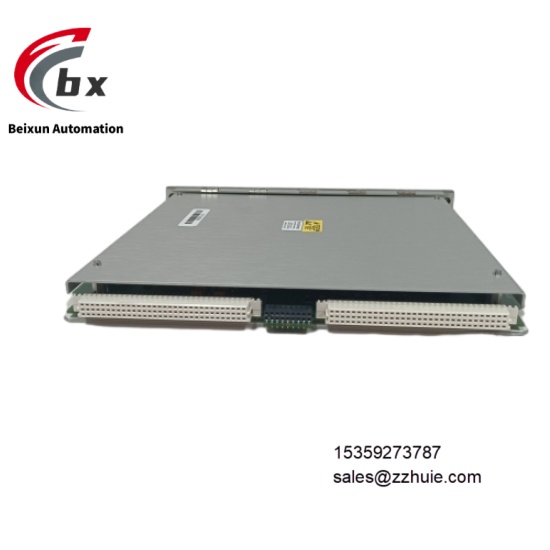

Bently Nevada 3500/45 176449-04 Location Monitoring Module Kit

Specific Parameters

3500/45 Monitoring Module
Electrical Parameters
Supply Voltage: 5V DC ±5% (provided by 3500 system frame)
Input Channels: 4 independent channels, compatible with multiple sensor types
Signal Types:
Position Signals: Shaft displacement, differential expansion (single/double ramp), compensated differential expansion
Extended Signals: Case expansion (channels 3-4 only), valve position (RPT input)
Sensor Compatibility: 25/35/50mm eddy current probes, DC/AC LVDTs, rotary potentiometers
Measurement Accuracy: ±0.33% of full scale, maximum ±0.7%
Resolution: 16-bit A/D conversion
Output Signals: 4×4-20mA analog outputs (proportional to range), front panel LED indicators (OK/TX/RX/Bypass)
Communication Interface: 3500 system backplane bus
Protection Functions: Inter-channel electrical isolation, sensor overvoltage protection
Power Consumption: 5.6–8.5W (varies by I/O module type)
Environmental Parameters
Operating Temperature: -30°C to +65°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61000-4 series standards
Vibration Resistance: Compliant with IEC 60068-2-6 standard

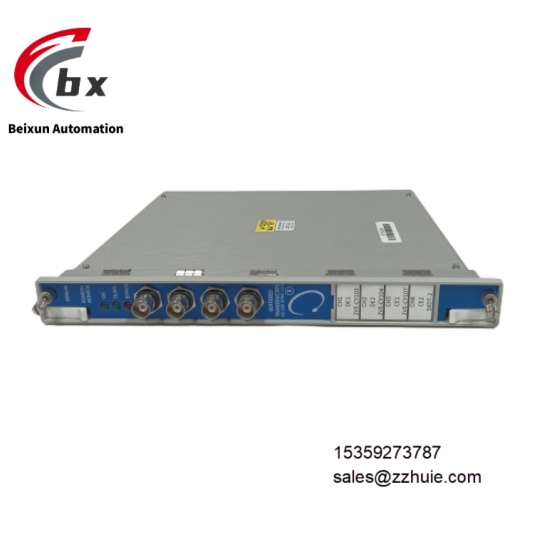

176449-04 Front Panel Assembly
Mechanical Parameters: Integrates channel status indicators and interfaces, compatible with 3500 system frame mounting
Functional Interface: Provides sensor signal buffered output, supporting on-site debugging and monitoring
Overall Mechanical Parameters
Module Dimensions: 241.3mm (H) × 24.4mm (W) × 241.8mm (D)
Module Weight: Approximately 0.91kg
Mounting Method: 3500 system frame standard slot mounting
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant alloy material

Product Performance

The kit adopts high-precision signal conditioning circuit, ensuring differential expansion measurement resolution up to 0.1μm and shaft displacement measurement error ≤±0.33% of full scale, enabling accurate capture of subtle equipment position changes. It supports 7 position measurement types, and the channel pair programming function allows flexible configuration of monitoring functions. The dedicated case expansion monitoring design for channels 3-4 meets the special monitoring needs of large rotating machinery.

Integrated with real-time alarm configuration function, it supports two-level alarm threshold settings (alert and danger) with alarm response time ≤10ms. Through 3500 system configuration software, measurement types, filtering parameters and output signals can be configured online, supporting seamless compatibility with 3500/20 RIM modules with firmware version G or higher.

Wide temperature design and EMC optimization (compliant with EN 61000-4 standards) ensure stable operation in industrial strong electromagnetic environments. Channel-level electrical isolation design effectively eliminates ground loop interference. The overall mean time between failures (MTBF) ≥300,000 hours, and sensors are recommended to be calibrated every 5 years to maintain measurement accuracy.
