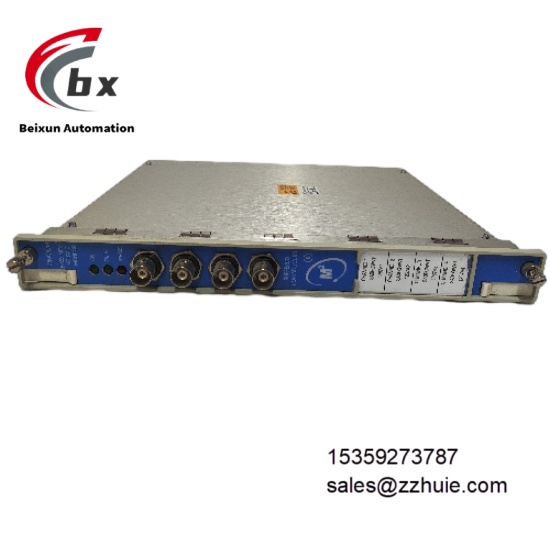

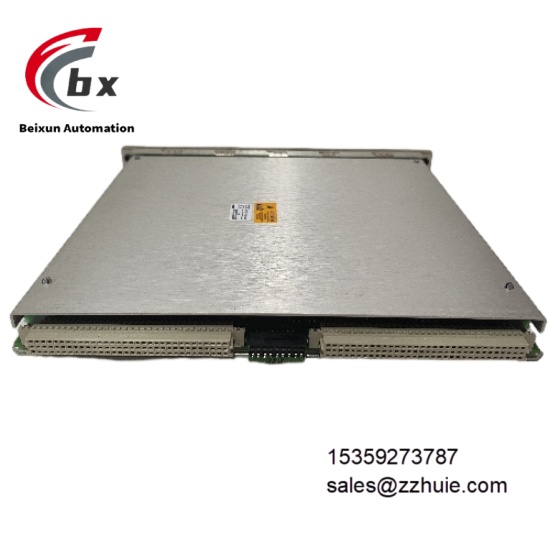

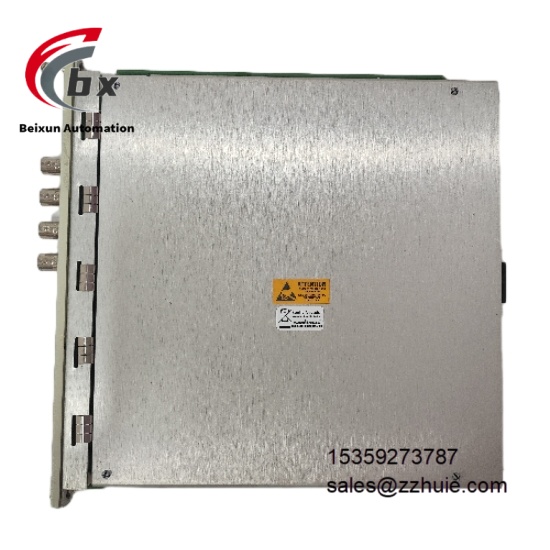

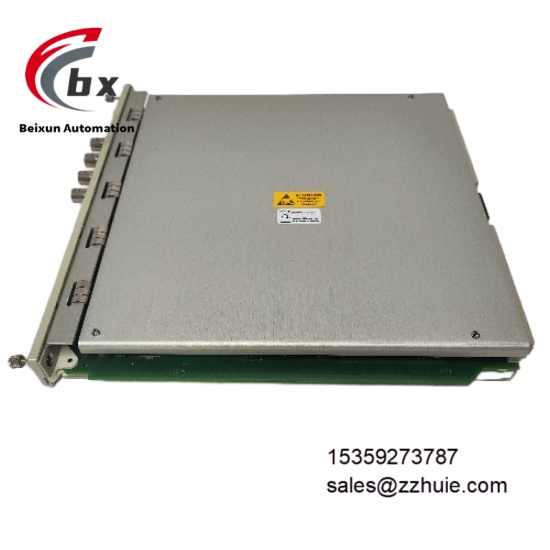

Bently Nevada 3500/42M 176449-02 Mechanical vibration and position monitoring module

Bently Nevada 3500/42M 176449-02 Mechanical vibration and position monitoring module

Specific Parameters

• Electrical Parameters
  • Supply Voltage: 24V DC ±10%, uniformly powered by 3500 frame
  • Channel Configuration: 4 independent monitoring channels, supporting flexible configuration of vibration/position parameters
  • Input Signals:
    • Sensor Type: Compatible with eddy current sensors (input signal range -20V to +20V DC), velocity sensors (0.1V/mm/s to 10V/mm/s)
    • Measurement Range: Radial vibration 0-500μm (peak-to-peak), axial position 0-25mm
    • Resolution: 16-bit A/D conversion, vibration measurement resolution 0.01μm
  • Output Signals:
    • Analog Output: 4-20mA DC (independent output per channel, corresponding to measured values)
    • Digital Output: Dry contact relay output (alarm/trip signals, contact rating 2A@250V AC)
  • Communication Interface: Communicates with controller via 3500 frame backplane bus, supports Modbus RTU protocol
  • Isolation Level: 2.5kV AC between channels (1 minute), 2kV AC between channels and system (1 minute)
  • Protection Functions: Overvoltage protection (≤30V DC), short circuit protection, ESD protection (±15kV contact discharge)
  • Power Consumption: ≤5W per module under normal operation
• Environmental Parameters
  • Operating Temperature: 0°C to 65°C (in-frame installation environment)
  • Storage Temperature: -40°C to 85°C
  • Relative Humidity: 5% to 95% (non-condensing, no dew formation)
  • EMC Immunity: Compliant with EN 61326-1 industrial grade standard, common mode rejection ratio ≥120dB
  • Vibration Resistance: 5-500Hz, 1g acceleration (compliant with IEC 60068-2-6)
  • Shock Resistance: 10g acceleration, 11ms duration (compliant with IEC 60068-2-27)
  • Protection Class: IP20 (module itself, dependent on 3500 frame protection)
• Mechanical Parameters
  • Dimensions: 40mm (W) × 160mm (H) × 220mm (D) (fits 3500 standard frame slot)
  • Weight: Approximately 300g
  • Mounting Method: 3500 series standard frame slot mounting (compatible with 19-inch cabinets)
  • Housing Material: Flame-retardant engineering plastic (UL 94 V-0 grade)
  • Terminal Type: Spring-loaded crimp terminals, compatible with 18-24 AWG wires
  • Indicators: Status LEDs (normal/alarm/trip) for each channel, module global power/fault LEDs

Product Performance

The module adopts 4-channel parallel acquisition technology, with a data sampling rate of 10kHz per channel, vibration measurement accuracy ±0.1% FS, and axial position measurement accuracy ±0.02mm, which can capture small parameter changes during equipment operation. It integrates a digital filtering algorithm, supporting an adjustable filtering frequency band of 5Hz-1kHz, effectively filtering out electromagnetic noise and mechanical interference signals in industrial sites.

Equipped with online self-test function, it real-time monitors channel acquisition circuits, sensor connection status and module power supply, with fault diagnosis coverage ≥99%. Fault information is uploaded to the controller in real time via the frame bus, supporting “first-out fault” recording for easy fault tracing. It supports multi-level alarm threshold setting (alarm/trip), threshold configuration is completed via 3500 configuration software, and alarm response time ≤100ms.

Fully compatible with Bently Nevada 3500/05 frame controller and 3500/22M display module, it supports data storage, trend analysis and report generation via System 1® equipment health management software. The mean time between failures (MTBF) is ≥500,000 hours, meeting the 24/7 continuous monitoring needs of rotating machinery.
