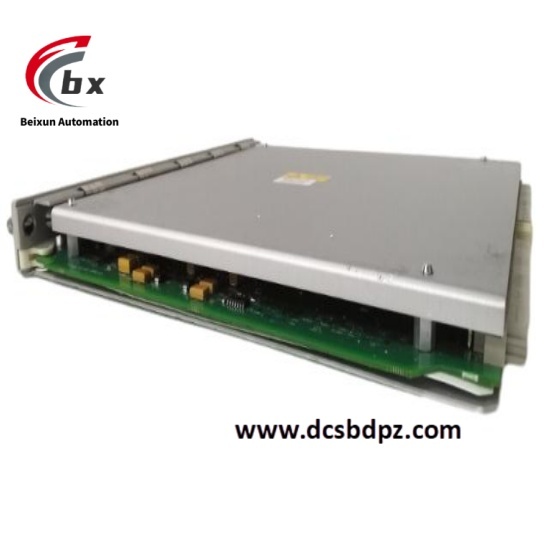

Bently Nevada 3500/42M 135489-02 Mechanical Vibration and Position Monitoring Kit

Specific Parameters

3500/42M Monitoring Module
Electrical Parameters
Supply Voltage: 5V DC ±5% (provided by 3500 system frame)
Input Channels: 4 independent differential inputs
Signal Types:
Vibration Signals: Acceleration (0-50g), Velocity (0-500mm/s), Displacement (0-2000μm)
Position Signals: Shaft displacement (-500μm to +500μm), Differential expansion (0-50mm)
Measurement Accuracy: ±0.1% full scale
Resolution: 24-bit A/D conversion
Sampling Rate: 1024 points/sec/channel (synchronous sampling supported)
Output Signals: 4×4-20mA analog outputs, 2×Form-C relay outputs (250V AC/30V DC, 5A resistive load)
Communication Interface: 3500 system backplane bus (100Mbps)
Protection Functions: Overvoltage protection (≤30V DC), short circuit protection, inter-channel electrical isolation protection
Power Consumption: ≤8W under normal operation
Environmental Parameters
Operating Temperature: 0°C to 65°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with EN 61326-1 (industrial grade)
Vibration Resistance: 10-500Hz, 2g acceleration (compliant with IEC 60068-2-6)
135489-02 Dedicated Terminal Board
Electrical Parameters: 2.5kV AC (1 minute) isolation between channels, supporting differential signal access and signal filtering
Mechanical Parameters: Dimensions 105mm×82mm×22mm, weight approximately 110g
Terminal Configuration: 16-position spring-loaded crimp terminals (compatible with 16-22 AWG wires)
Mounting Adaptation: Side-mounted on 3500 system standard frame
Overall Mechanical Parameters
Module Dimensions: 40mm (W) × 160mm (H) × 220mm (D)
Module Weight: Approximately 520g
Mounting Method: 3500 system frame standard slot mounting
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant aluminum alloy (UL 94 V-0 grade)

Product Performance

The kit adopts 24-bit high-precision A/D conversion chip and anti-aliasing filter circuit, with vibration signal measurement error ≤0.1% and shaft displacement measurement resolution up to 0.1μm, ensuring subtle changes in equipment status can be accurately captured. The 4-channel independent signal conditioning architecture supports synchronous sampling, and the sampling rate of 1024 points/sec/channel can fully record high-frequency vibration impact signals (up to 10kHz spectrum analysis).

Integrated with real-time fault diagnosis algorithm, it can automatically identify typical fault modes such as unbalance, misalignment and shaft bending, with fault response time ≤10ms, and quickly trigger equipment interlock shutdown via relay output. The data transmission delay with 3500 system main controller is ≤5ms, supporting online parameter configuration (alarm threshold, range calibration) and firmware upgrade through System 1 software, without system shutdown for maintenance.

Channel-level 2.5kV AC isolation design combined with shielded terminal board provides common mode rejection ratio ≥100dB, effectively resisting electromagnetic interference and ground loops in industrial sites. The overall wide temperature adaptability and reinforced structure design ensure mean time between failures (MTBF) ≥300,000 hours, fully adapting to the high-reliability monitoring needs of key rotating equipment.
