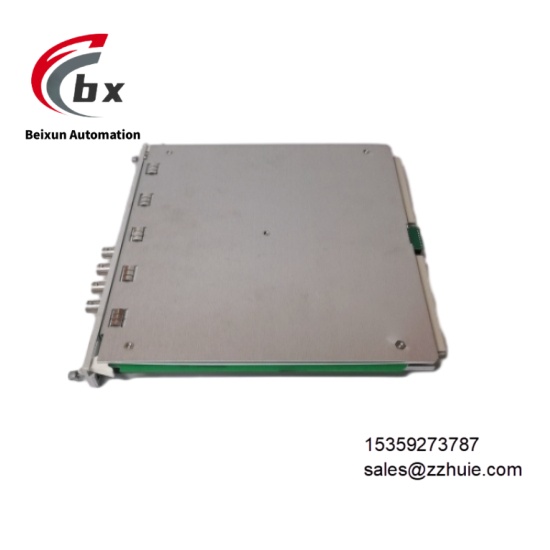

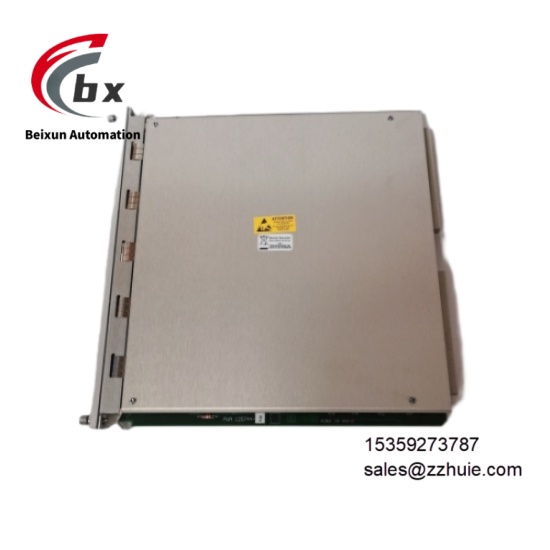

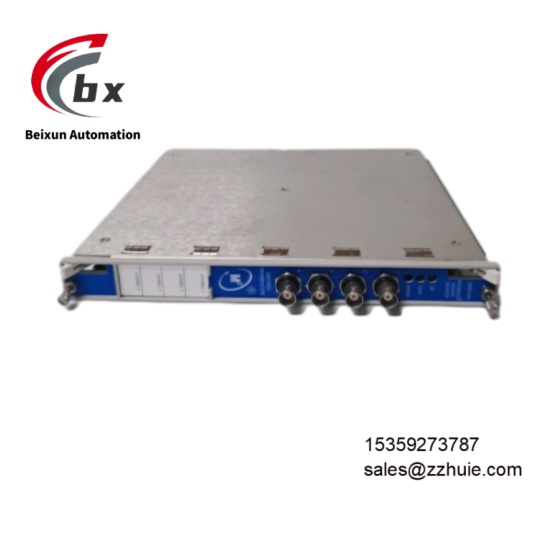

Bently Nevada 3500/40M 140734-02 Speed and key phase monitoring module

Bently Nevada 3500/40M 140734-02 Speed and key phase monitoring module

Specific Parameters​

Electrical Parameters​

Operating Voltage Adapting to 3500 system backplane power supply, rated operating voltage ±15VDC, allowing voltage fluctuation ±5%​

Operating Current Typical operating current 50mA per ±15VDC circuit, maximum operating current 80mA per ±15VDC circuit​

Input Channels 4 independent speed/keyphasor input channels with electrical isolation between channels​

Input Signal Types Magnetoelectric speed sensor signal (sine wave), Hall effect sensor signal (square wave), photoelectric sensor signal (pulse)​

Speed Measurement Range 0.1rpm to 200,000rpm, supporting monitoring of low-speed and high-speed rotating equipment​

Measurement Accuracy Speed measurement accuracy ±0.01%FS, phase measurement accuracy ±0.1°​

Input Signal Amplitude Magnetoelectric sensor input amplitude 20mVpp to 25Vpp, pulse signal high level ≥3V, low level ≤0.8V​

Input Impedance 10kΩ in magnetoelectric input mode, 100kΩ in pulse signal input mode​

Protection Functions Built-in overvoltage protection (maximum withstand voltage ±30VDC), short circuit protection, electromagnetic interference suppression​

Power Consumption Typical power consumption of single module ≤3W, full-load power consumption ≤5W​

Certification Standards Compliant with CE, UL, cUL, API 670, IEC 61010-1 standards​

Mechanical Parameters​

Overall Dimensions 160mm×100mm×30mm, standard rack-mounted design suitable for 3500 system cabinets​

Weight Approximately 0.5kg, lightweight structure facilitating module insertion, removal and maintenance​

Mounting Method 3500 system standard slot mounting, compatible with 3500/15 rack and 3500/20 rack​

Housing Material Industrial-grade high-strength flame-retardant plastic shell with electromagnetic shielding performance​

Connection Method Backplane bus connection (power supply and communication), front-end spring terminals (signal input)​

Protection Rating IP20, suitable for indoor industrial control cabinet environments​

Status Indication Equipped with module power (green), operation (yellow), channel alarm (red), system communication (blue) LED indicators​

Environmental Parameters​

Operating Temperature 0℃ to 65℃, no performance derating over the entire temperature range​

Storage Temperature -40℃ to 85℃, meeting extreme storage and transportation requirements​

Relative Humidity 5% to 95% (non-condensing), adapting to high-humidity industrial scenarios​

Vibration Resistance Complies with IEC 60068-2-6 standard, 2g acceleration at 5Hz-500Hz frequency range​

Shock Resistance Complies with IEC 60068-2-27 standard, 15g acceleration (11ms duration)​

EMC Compliance Complies with EN 55014-1, IEC 61000-4-2/3/4/6 standards, low electromagnetic interference and high anti-interference capability​

Product Performance​

Excellent measurement accuracy, ±0.01%FS speed accuracy and ±0.1° phase accuracy ensuring reliability of monitoring data​

Wide range coverage, 0.1rpm to 200,000rpm range adapting to all types of rotating equipment from low-speed pumps to high-speed turbines​

Strong signal compatibility, supporting input of magnetoelectric, Hall, photoelectric and other sensors, reducing module selection costs​

Fast response speed, signal processing delay ≤1ms, overspeed alarm triggering time ≤5ms​

Flexible system integration, supporting cascading of multiple modules in 3500 system, expandable to 64 speed monitoring channels​

Comprehensive self-diagnostic capability, real-time monitoring of channel status, sensor connectivity and module hardware, with precise fault location​

High operational stability, industrial-grade component selection and strict aging testing, Mean Time Between Failures (MTBF) ≥1,500,000 hours​

High maintenance convenience, modular plug-in design + clear status indication, fault module replacement without system shutdown​
