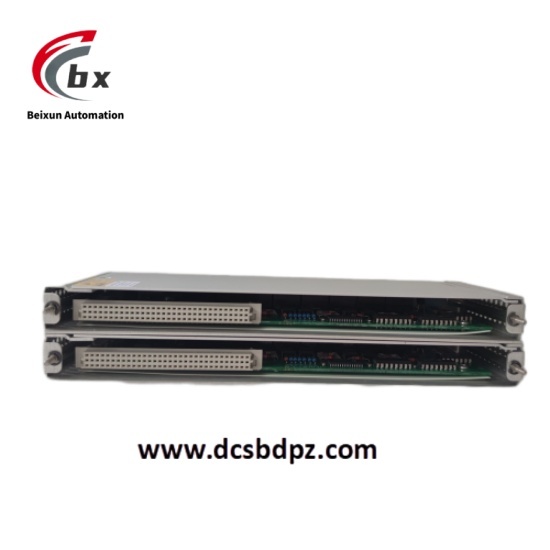

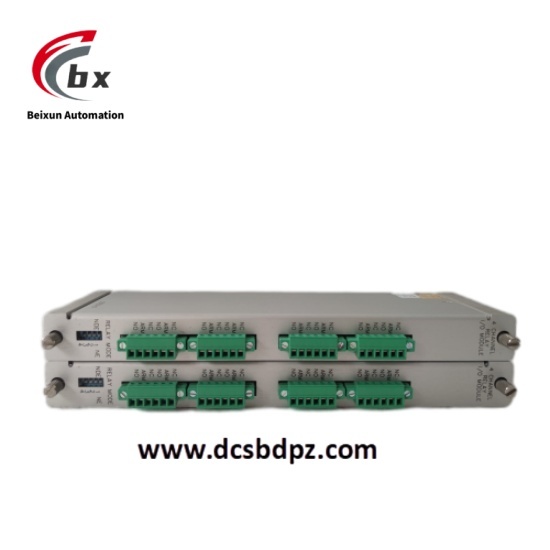

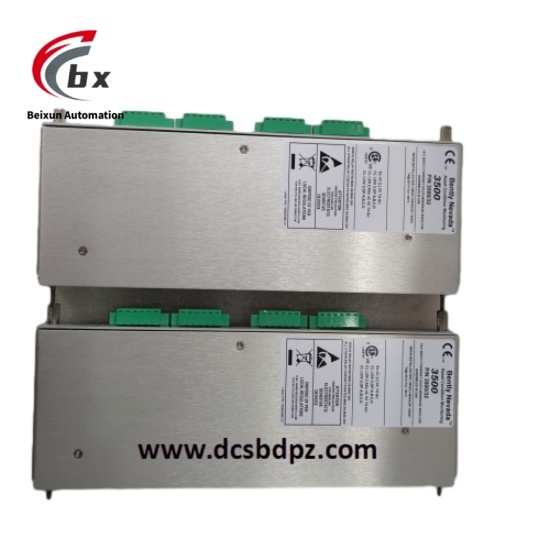

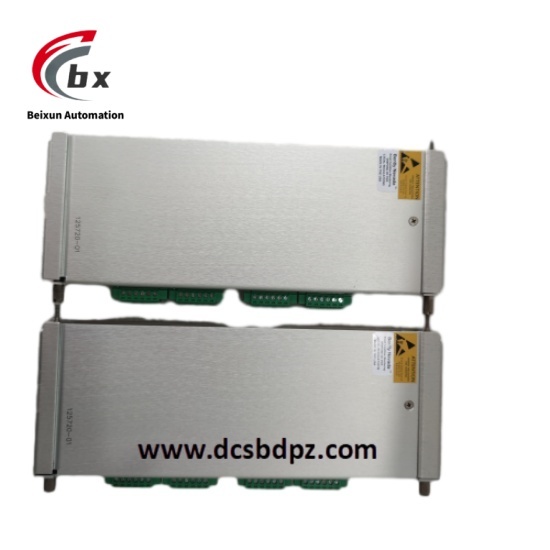

Bently Nevada 3500/32 125720-01 Relay output module
Specific parameters
Working voltage: usually 120VAC, there are also data showing that the power supply compatibility is AC/DC.
Current rating: 5A.
Relay rating: 250VAC/10A.
Switching capability: Supports a maximum voltage of 250VAC/30VDC, 2A resistive load, and a mechanical lifespan of up to 20 million cycles.
Isolation voltage: The isolation voltage between contacts and between contacts and the rack is 1500VAC.
Environmental parameters
Working temperature: -40 ° C to+85 ° C.
Storage temperature: -40 ° C to+85 ° C.
Humidity: 5% to 95%, non condensing.
Physical parameters
Dimensions: Height 241mm x Width 24.4mm x Depth 99.1mm or 2.5cm x 24.1cm x 11.4cm.
Weight: Approximately 0.4kg.
Product Performance
High reliability: Using electromechanical relay technology combined with epoxy resin sealing, it can effectively resist vibration, electromagnetic interference, and harsh environments, ensuring stable operation in industrial applications, MTBF＞500, 000 hours.
Flexible configuration: Users can program the alarm driver logic through the 3500 rack configuration software, using AND and OR logic, utilizing alarm inputs, Not OK, or a single PPL from any monitor channel or combination of monitor channels in the rack to meet the needs of various specific applications. It can be configured as normally open (NO), normally closed (NC), or common terminal (COM) mode.
Status monitoring and diagnosis: This module has diagnostic functions, which can monitor the status and health of relays, provide real-time feedback on the working status of relays, and facilitate maintenance personnel to discover and handle problems in a timely manner.
Redundant design: As a backup module, it can be paired with the main module for seamless switching in case of main system failure, ensuring the continuous operation of critical equipment and meeting SIL 3 safety level requirements.
