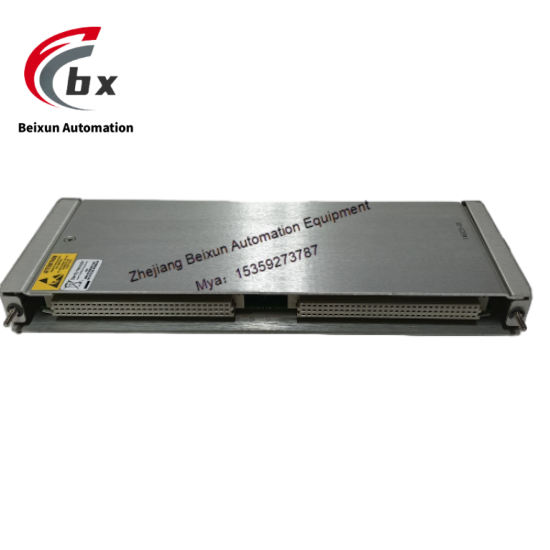

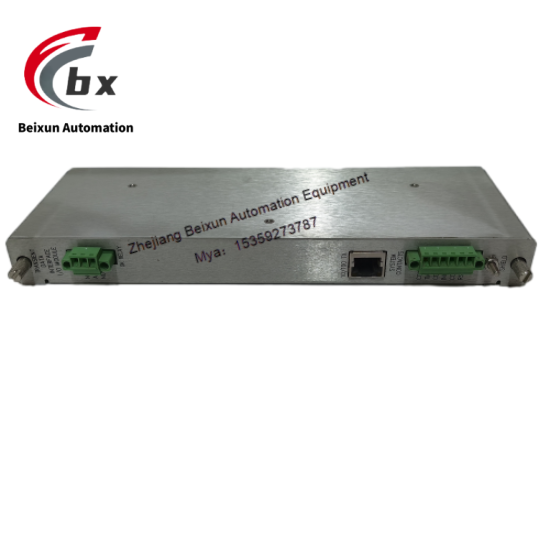

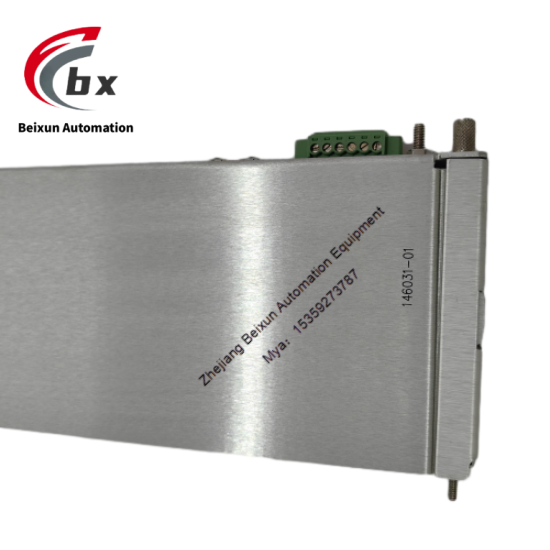

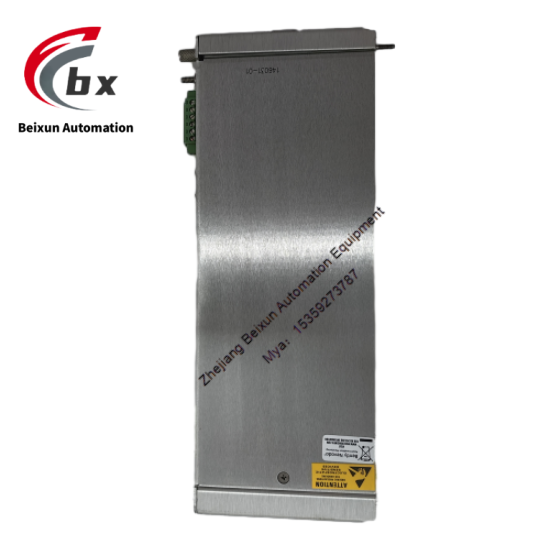

Bently Nevada 3500/22M 146031-01 Transient Data Interface I/O Module

Specific parameters
Communication ports: It has 7 communication ports, including built-in local expansion ports and Ethernet remote I/O ports.
Memory: Equipped with a high-performance CPU with 50MB of memory, it can meet the needs of data storage and processing.
Data recording: Supports USB programming and USB data recording, facilitating data transmission and storage.
Network interface: 10Base-T/100Base TX Ethernet interface, used for network connection with other devices.
Working voltage: usually 220V, there are also other voltage specifications to choose from.
Output frequency: up to 50kHz.

Product Performance
Data collection function
Static data capture: By default, it has built-in static data capture function, which can record steady-state data during device operation.
Dynamic and transient data capture: By installing optional channel enable disks, dynamic and high-resolution transient data can be recorded, which helps analyze the operating status of equipment during transient processes such as start stop and faults.
Communication processing performance
High speed data transmission: It can quickly transmit the collected steady-state and transient waveform data to the host software through Ethernet links, ensuring the real-time performance of the data.
Multi protocol support: Supports multiple communication protocols and can be compatible and communicate with devices and systems from different manufacturers, making it easy to integrate into complex industrial automation control systems.
System compatibility: It can work together with M-series monitors in the 3500 series (such as 3500/40M, 3500/42M, etc.) to complete device monitoring tasks in the RIM slot of the 3500 rack.
Reliability and stability
Non critical monitoring channel design: Although it provides certain functions shared by the entire rack, it does not belong to the critical monitoring channel. Even if a fault occurs, it will not affect the normal operation of the entire monitoring system, improving the reliability of the system.
Durable and sturdy design: Adopting a sturdy casing and circuit design suitable for industrial environments, it can work stably under harsh environmental conditions such as high temperature, humidity, and vibration, ensuring the accuracy and stability of data acquisition and transmission.
