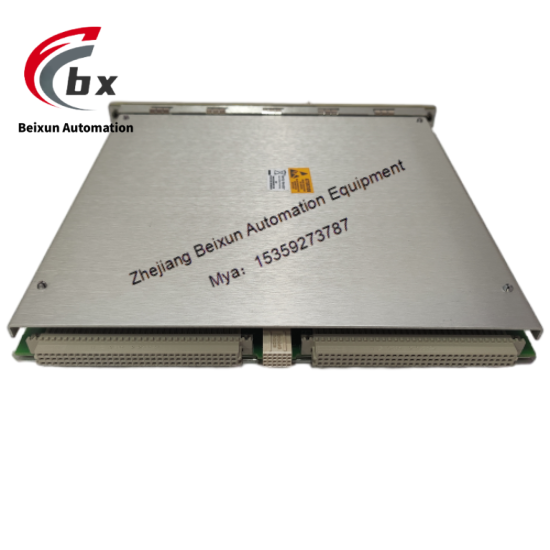

Bently Nevada 3500/22-01-02-00 Transient Data Interface Module (TDI)
Specific parameters
Power consumption: 10.5 watts.
Input signal: -10Vdc to+10Vdc.
Power supply: The shaft power supply and sensor power supply are both -24Vdc.
Communication interface: The front panel has USB-B interface and supports 10Base-T or 100Base TX Ethernet (automatic sensing), or 100Base FX fiber optic Ethernet can be selected.
Size: 9.50 inches x 0.96 inches x 3.90 inches (height x width x depth).
Weight: 0.20 kilograms.
Product Performance
Data collection capability: It has the ability to collect conventional static data and can also enable disk recording of dynamic, high-resolution transient data through optional channels.
System integration function: Through multiple communication interfaces, it is easy to integrate with other devices and systems, achieve data transmission and sharing, and facilitate centralized management and remote control of the entire monitoring system.
Status indication function: LED indicator light with pre – and post alarm data, allowing operators to quickly identify system issues and intervene in a timely manner. At the same time, there is a rack reset button, which facilitates resetting the module in case of operational problems.
