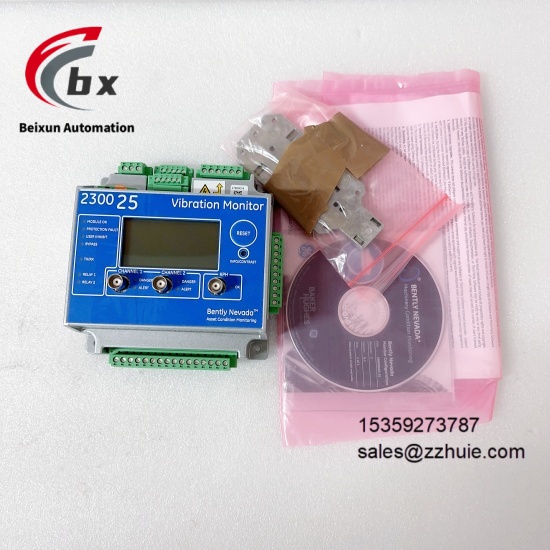

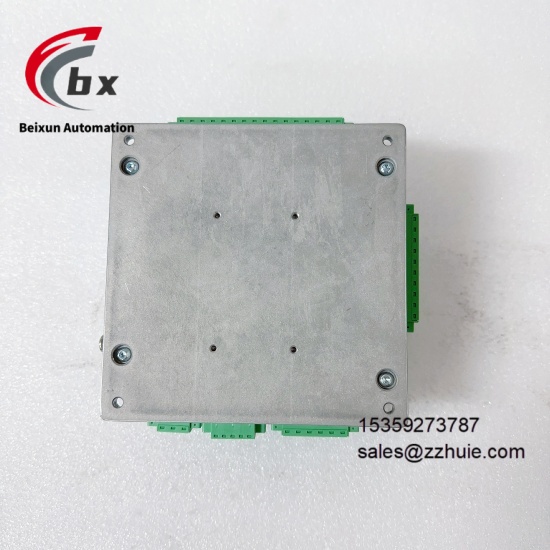

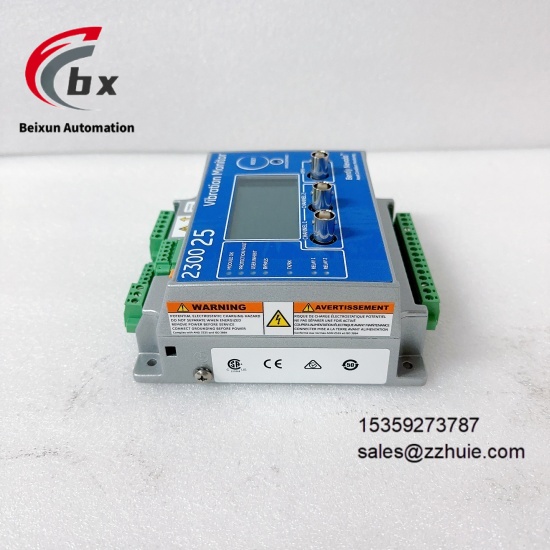

Bently Nevada 2300/25-00 Vibration monitoring module
Specific Parameters
Brand Bently Nevada (under GE)
Product Series 2300 Series Vibration Monitoring System Modules
Product Type Industrial-grade Vibration Monitoring Module
Model 2300/25-00
Number of Input Channels 2 independent vibration input channels
Input Signal Type Magnetoelectric velocity sensor signal (AC 10mV – 20Vpp)
Measured Parameters Vibration velocity RMS, Peak value
Measurement Range Vibration velocity: 0 – 20 mm/s RMS; Vibration displacement: 0 – 500 μm Peak-Peak
Measurement Accuracy ±0.5% Full Scale
Operating Voltage DC 24V ±10%
Operating Temperature Range -20℃ – 65℃
Storage Temperature Range -40℃ – 85℃
Relative Humidity 5% – 95% Non-condensing
Protection Level IP20 (Module-level)
Electrical Isolation 1000V AC isolation between channels and between channel and power supply (1 minute)
Installation Method 35mm standard DIN rail mounting
Dimensions 110mm×160mm×75mm (L×W×H)
Weight Approximately 0.5kg
Power Consumption Typical 2.5W, Maximum 4W
Certification API 670, CE, UL, ATEX
Diagnostic Functions Channel fault self-diagnosis, Sensor open/short circuit diagnosis, Signal loss detection, Power supply abnormality monitoring
Response Time ≤5ms
Product Performance
2 independent input channels design, capable of monitoring the vibration status of two devices or different positions of the same device simultaneously, adapting to the centralized monitoring needs of multiple devices
Compatible with magnetoelectric velocity sensor signals, no additional signal conversion module is required, and it can be directly connected to mainstream on-site vibration sensing equipment with strong versatility
Can accurately measure vibration velocity RMS and peak value, with measurement accuracy up to ±0.5% full scale, which can accurately capture subtle changes in equipment vibration, meeting the needs of early fault warning
Complies with API 670 rotating machinery monitoring standards, has passed authoritative certifications in multiple industries, and can be directly applied to vibration safety monitoring systems of industrial key rotating equipment
1000V AC electrical isolation design, combined with industrial-grade anti-electromagnetic interference circuit, can effectively resist on-site electromagnetic radiation, equipment start-stop surges and other interferences, ensuring the stability of signal acquisition
Equipped with complete fault self-diagnosis functions, real-time monitoring of channel status, sensor working conditions and power supply stability, accurate and timely fault alarm, reducing maintenance difficulty
Wide operating temperature range of -20℃ – 65℃, combined with industrial-grade rugged packaging, can long-term stable operation in harsh industrial sites such as high temperature and high vibration, with strong environmental adaptability
Deeply compatible with the Bently Nevada 2300 series monitoring system, supporting plug-and-play and online configuration debugging, simplifying system integration and maintenance processes
High-reliability design, MTBF ≥2,500,000 hours, meeting the 24-hour uninterrupted operation needs of industrial sites
