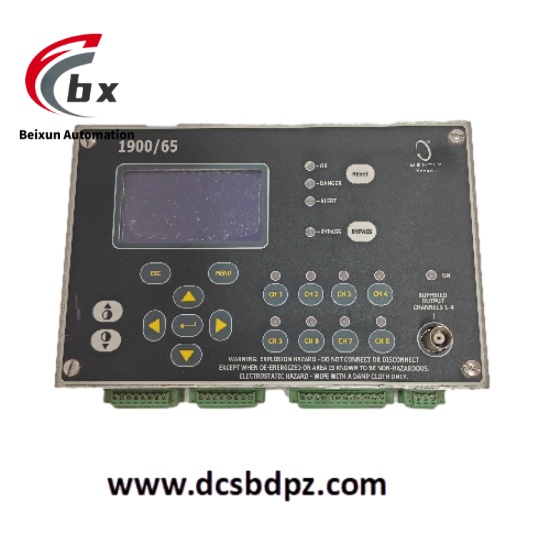

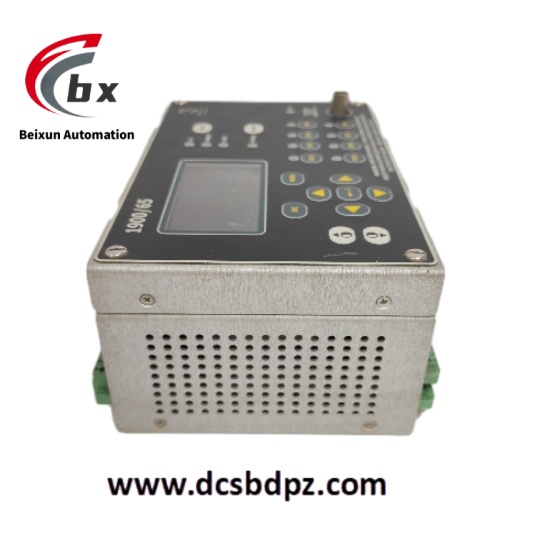

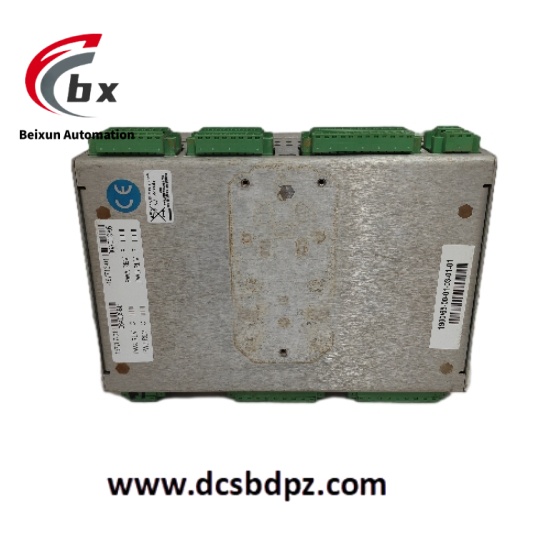

Bently Nevada 1900/65-00-01-03-01-01 Equipment Monitor
The Bently Nevada 1900/65-00-01-03-01-01 is a general - purpose equipment monitor used for continuously monitoring and protecting critical equipment assets in a wide range of industries. It features 8 input channels, including 4 transducer input channels and 4 temperature input channels. Software can configure each transducer input channel to support 2 - wire and 3 - wire accelerometers, velocity sensors, or proximity sensors. Each temperature input channel supports type E, J, K, and T thermocouples, as well as 2 - wire or 3 - wire resistance temperature detectors (RTDs). Parameter settings of this device are carried out through configuration software based on Microsoft Windows®, enabling easy monitoring and management of equipment operating status and providing a reliable basis for equipment preventive maintenance.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
Bently Nevada 1900/65-00-01-03-01-01 Equipment Monitor
Specific Parameters
- Input Channels: 4 transducer input channels, 4 temperature input channels
- Supported Transducer Input Types: 2 – wire and 3 – wire accelerometers, velocity sensors, proximity sensors
- Supported Temperature Input Types: Type E, J, K, T thermocouples, 2 – wire or 3 – wire RTDs
- Outputs: 6 configurable alarm relays, 4 4 – 20mA outputs, 1 dedicated buffered output
- Power Option: 18 to 36VDC
- Display Option: No display
- Mounting Method: 35mm DIN rail mounting
- Protection Rating: IP65 (weatherproof housing)
- Operating Temperature Range: -20°C to +70°C
- Storage Temperature Range: -30°C to +90°C
- Humidity: Up to 95% non – condensing
- Dimensions (Length x Width x Height): 19.69cm x 14.94cm x 7.44cm (monitor module)
- Weight: Approximately 8kg
Product Performance
- Multi – parameter Monitoring: It can simultaneously monitor multiple key parameters of equipment, such as vibration, speed, position, and temperature, providing a comprehensive understanding of equipment operating status.
- High – precision Measurement: Adopting 24 – bit A/D conversion technology, it ensures high – precision measurement and can accurately reflect the operating conditions of equipment.
- Flexible Configuration: Users can customize the operating parameters of the monitor through configuration software, such as alarm thresholds and measurement ranges, to meet the monitoring needs of different equipment.
- Reliable Alarm Output: The 6 configurable alarm relays can be programmed according to the normal, alert, and danger statuses of equipment operation, and output alarm signals in a timely manner.
- Convenient Data Output: The 4 4 – 20mA outputs can be used to connect to recording devices or other control systems, and the buffered output is convenient for connecting portable diagnostic instruments, facilitating data collection and analysis.
- Communication Function: Supports Modbus communication and can transmit data with distributed control systems (DCS), supervisory control and data acquisition systems (SCADA), programmable logic controllers (PLC), etc. through Ethernet and a software – configurable RS 232/485 serial port.
