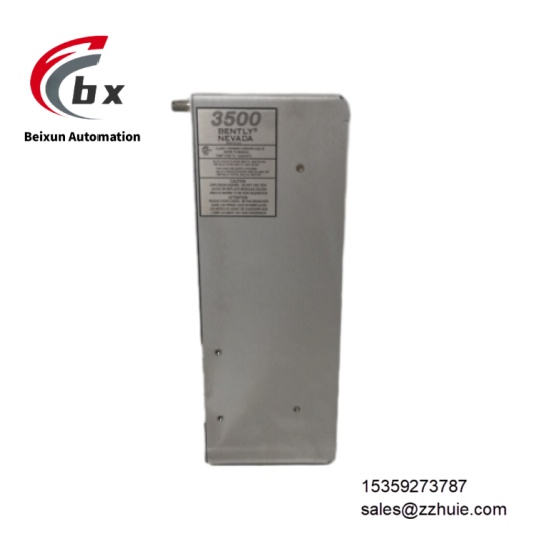

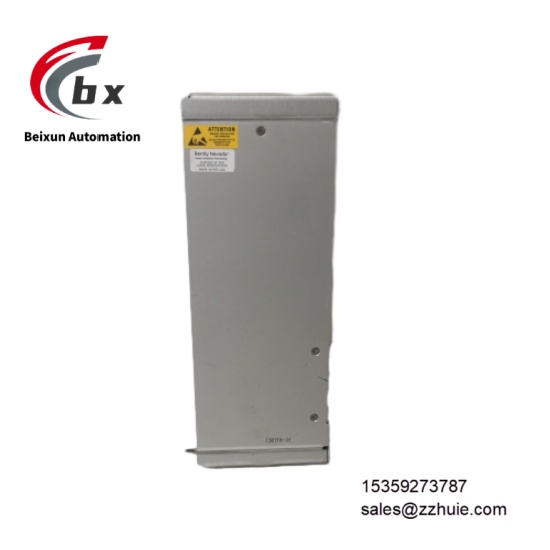

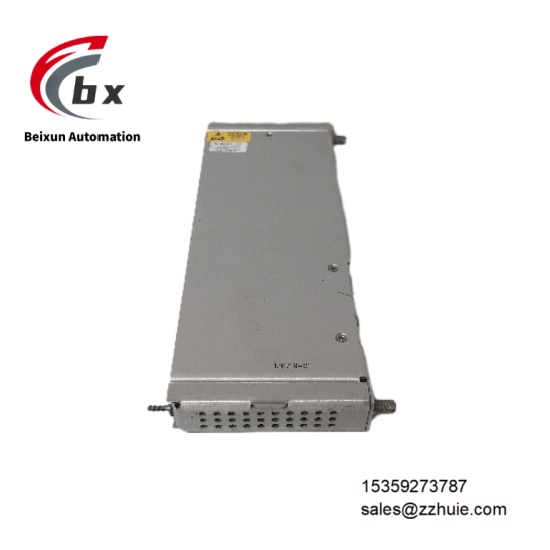

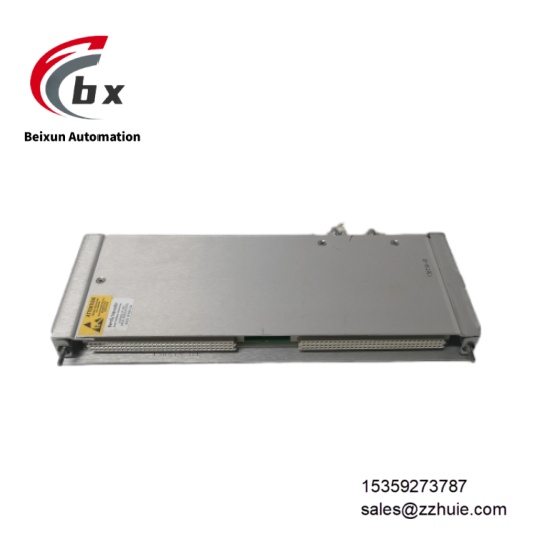

Bently Nevada 136719-01 Dual channel vibration monitoring module
Specific Parameters
Electrical Parameters
Operating Voltage: 24V DC±10%, compatible with industrial standard power supply systemsInput Channels: 2 differential vibration input channels, supporting independent configurationMeasurement Types: Vibration acceleration (0.1~1000m/s²), vibration velocity (0.1~100mm/s), vibration displacement (0.1~1000μm)Measurement Accuracy: ±0.5% full scale, stable and reliable data acquisition across the full rangeSensor Compatibility: Compatible with eddy current displacement sensors, magnetic velocity sensors, piezoelectric acceleration sensorsSignal Processing: Supports real-time calculation of RMS, peak, peak-to-peak, crest factor, outputting key characteristic parametersOutput Signals: 2 independent 4-20mA analog outputs, 2 alarm/trip relay outputs (SPDT type)Communication Protocols: Compatible with 3500 system dedicated backplane bus, supporting Ethernet/IP and Modbus TCP/IP data interactionAlarm Settings: Each channel supports 2 sets of custom alarm thresholds (warning, danger), compliant with API 670 standardDiagnostic Functions: Integrated self-diagnosis for sensor open circuit, short circuit, signal over-limit and module power failure, real-time fault code outputInsulation Resistance: ≥100MΩ between channels and between channels and power supply (measured at 500V DC, normal temperature and state)Voltage Withstand Strength: ≥2500V AC between channels and between channels and power supply (1 minute no breakdown, leakage current ≤1mA)Certification Standards: Compliant with API 670, IEC 61508 SIL 2, CE, UL 508 standards
Mechanical Parameters
Overall Dimensions: 48.3mm (W) × 82.6mm (H) × 190.5mm (D), half-height modular designWeight: Approximately 0.5kg, compatible with 3500 series standard frame slot installationMounting Method: Plug-in installation (compatible with 3500 series 19-inch frame), supporting online hot-swappingHousing Material: Die-cast aluminum alloy (main body) + flame-retardant engineering plastic (interface panel), anti-electromagnetic interferenceConnection Method: 16-pin pluggable terminal, compatible with shielded twisted-pair cables, supporting direct sensor accessProtection Rating: IP20 (module itself), relying on the overall protection of the 3500 frameStatus Indication: Channel-level green LED (normal signal), yellow LED (warning), red LED (danger); module-level power/fault LED
Environmental Parameters
Operating Temperature: -40℃ to +70℃, operation without derating over the entire temperature rangeStorage Temperature: -40℃ to +85℃, meeting extreme storage and transportation requirementsRelative Humidity: 5% to 95% (non-condensing), suitable for high-humidity industrial scenariosVibration Resistance: 10-500Hz frequency range, 1.5g acceleration (sine wave), no structural loosening or measurement driftShock Resistance: 20g acceleration (half-sine wave, duration 11ms), withstanding shocks in frame-mounted scenariosEMC Compliance: Meets EN 55014-1 (emission limits), EN 55014-2 (immunity), EN 61326-1 standardsInstallation Altitude: ≤2000m (normal operation), power derating 10% for every 1000m increase from 2000m to 5000m
Product Performance
Excellent monitoring accuracy: ±0.5% full-scale accuracy combined with multi-characteristic value calculation, fault identification accuracy ≥98%Efficient signal processing: 512Hz sampling rate per channel, real-time output of vibration parameters, response time ≤20msWide sensor compatibility: Compatible with three types of mainstream vibration sensors, no additional adapter modules requiredStrong system compatibility: Seamless integration with 3500 protection system, supporting real-time data interaction with DCS and SCADA systemsComprehensive diagnostic capability: Channel-level fault self-diagnosis can accurately locate abnormalities, diagnostic coverage ≥99%High maintenance convenience: Hot-swappable design with intuitive LED status indication, fault troubleshooting time ≤15 minutesOutstanding operational stability: Industrial-grade components and wide-temperature adaptation design, Mean Time Between Failures (MTBF) ≥350,000 hours
