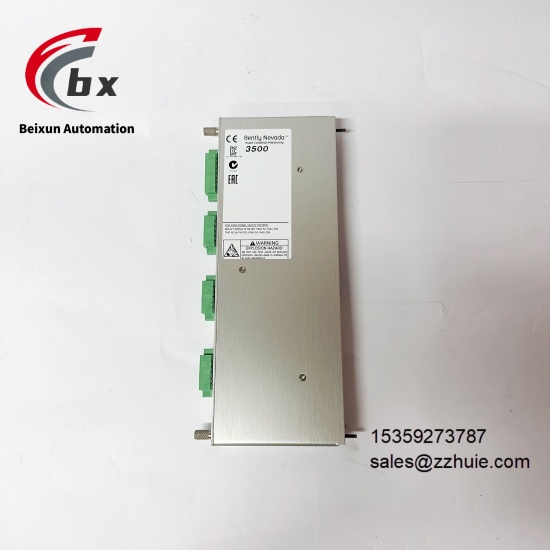

Bently Nevada 133442-01 System wiring terminal board

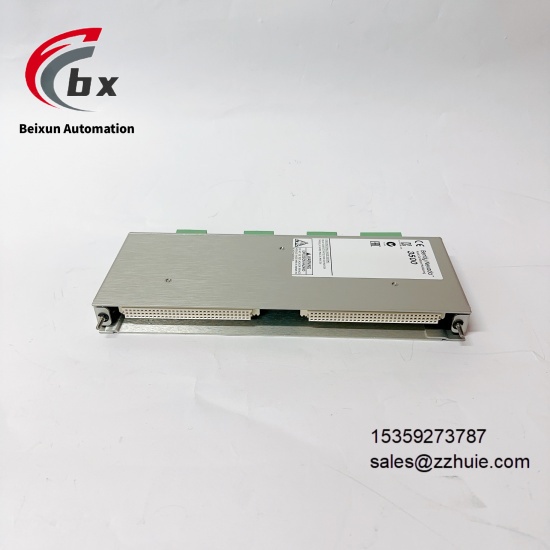

Bently Nevada 133442-01 System wiring terminal board

Specific Parameters​

Electrical Parameters​

Rated Voltage Maximum rated operating voltage 300VAC/300VDC, adapting to industrial control signal voltage range​

Rated Current Maximum rated current per terminal 10A, meeting sensor signal and control signal transmission requirements​

Signal Compatibility Compatible with analog signals (4-20mA, ±10VDC), digital signals (switch signals, pulse signals), sensor excitation signals (±15VDC, 24VDC)​

Insulation Resistance Insulation resistance between terminals and between terminals and housing ≥100MΩ (500VDC)​

Withstand Voltage Withstand voltage between terminals ≥1500VAC (duration 1 minute), no breakdown or arcing​

Contact Resistance Terminal contact resistance ≤2mΩ, ensuring low-loss signal transmission​

Anti-electromagnetic Interference Supporting signal grouping shielding design, common mode rejection ratio ≥80dB​

Mechanical Parameters​

Overall Dimensions 220mm×160mm×30mm, standard rack-mounted installation dimensions, suitable for 3500 system cabinets​

Weight Approximately 0.5kg, lightweight structure facilitating installation and deployment​

Mounting Method 3500 system standard rail mounting or screw-fixed installation, compatible with 3500/15 and 3500/20 rack supporting installation​

Terminal Configuration 32-way terminal blocks, adopting spring-loaded crimp terminals, supporting 0.5-2.5mm² wire connection​

Housing Material Industrial-grade high-strength flame-retardant ABS housing, with mechanical protection and insulation performance​

Connection Method Front-end wiring (on-site cable access), back-end docking with 3500 modules via dedicated connectors​

Protection Rating IP20, suitable for indoor industrial control cabinet environments, anti-miscontact and dustproof​

Identification Design Clear terminal numbering and supporting wiring diagrams for easy wiring and troubleshooting​

Environmental Parameters​

Operating Temperature 0℃ to 65℃, no performance derating over the entire temperature range​

Storage Temperature -40℃ to 85℃, meeting extreme storage and transportation requirements​

Relative Humidity 5% to 95% (non-condensing), adapting to high-humidity industrial scenarios​

Vibration Resistance Complies with IEC 60068-2-6 standard, 2g acceleration at 5Hz-500Hz frequency range​

Shock Resistance Complies with IEC 60068-2-27 standard, 15g acceleration (duration 11ms)​

Aging Resistance Complies with UL 94 V0 flame retardant standard, no deformation or cracking during long-term use​

Product Performance​

High connection reliability, spring-loaded crimp terminals + low contact resistance ensuring stable signal transmission without attenuation​

Wide signal compatibility, adapting to all types of signal transmission of 3500 system without additional transfer accessories​

Convenient installation and wiring, standardized dimensions + clear terminal identification simplifying system integration processes​

Excellent protection performance, flame-retardant housing + IP20 protection ensuring wiring safety and equipment protection​

Strong anti-interference capability, signal grouping isolation design reducing cross-interference between different types of signals​

Stable and durable structure, high-strength material + vibration and shock resistance design adapting to industrial on-site environments​

High maintenance convenience, front-end wiring design enabling cable inspection without removing modules​

Strong system adaptability, specifically designed for 3500 series modules with seamless docking and no compatibility issues​
