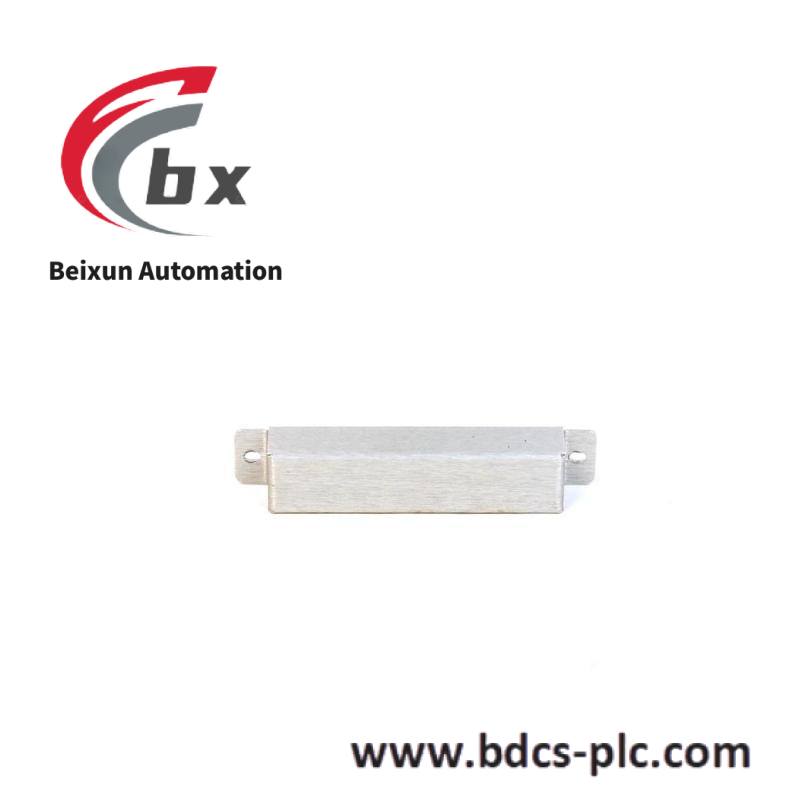

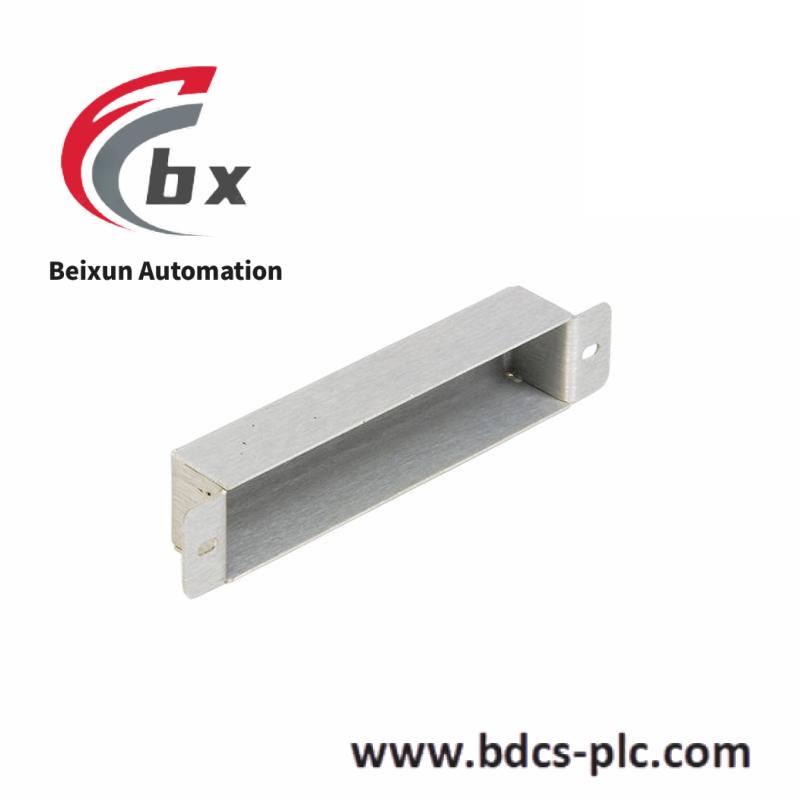

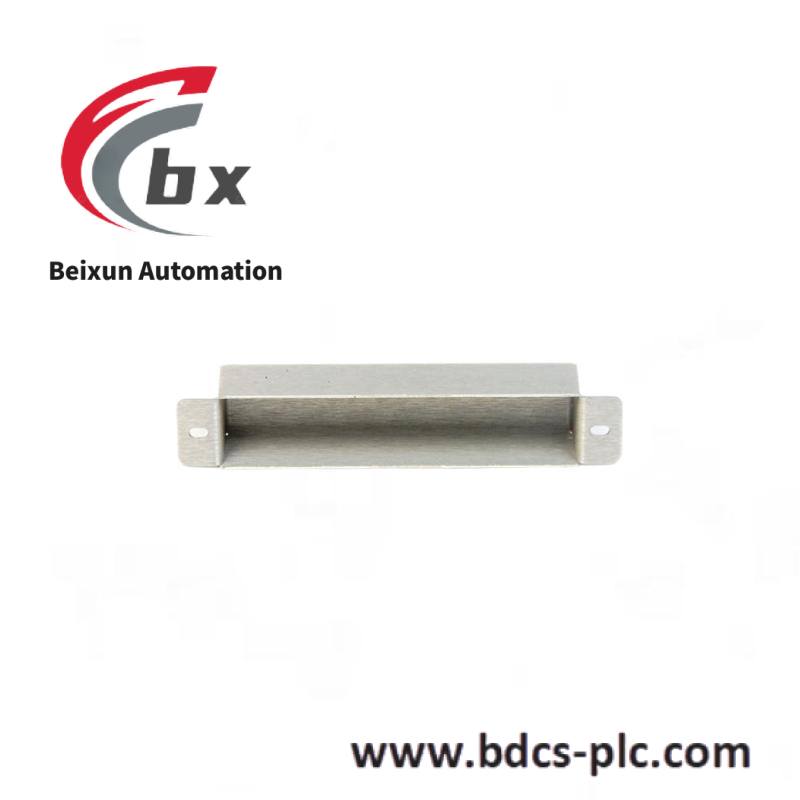

BENTLY 128031-01 Vibration Monitoring Module for Industrial Control Systems

Specific Parameters

Brand BENTLY (BENTLY NEVADA, now part of General Electric GE)

Product Series 3500 Series

Product Type Blank Filler Plate, Rear Connector Cover, PLC Rack Supporting Component

Model 128031-01

Compatible System BENTLY 3500 Series Controller Rack

Compatible Rack Specifications 19-inch EIA Full-Size Rack (14 Module Slots), 12-inch Mini Rack (7 Module Slots)

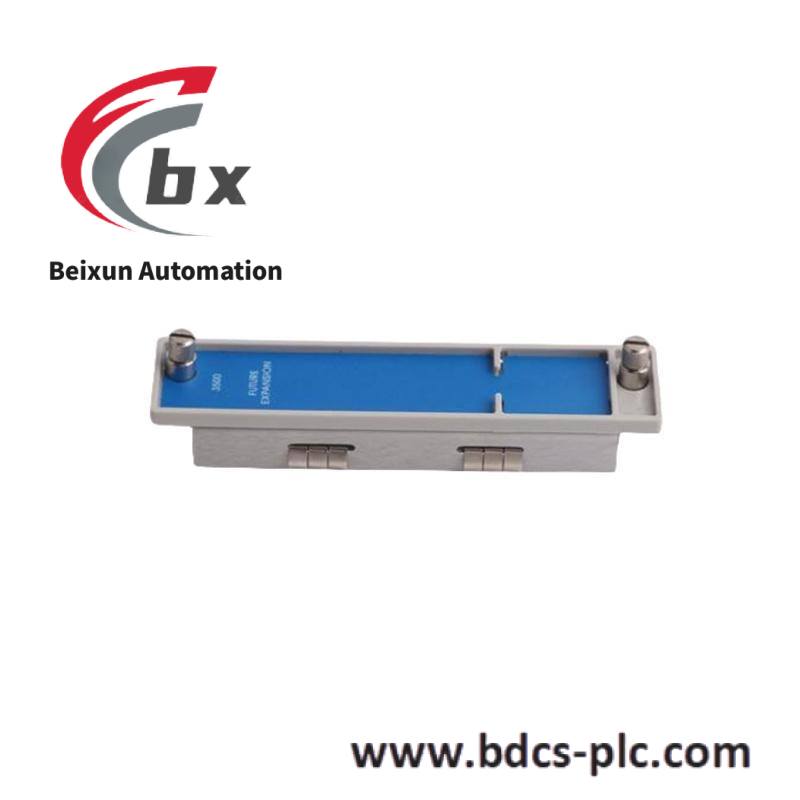

Supporting Components Can be used with BENTLY 128031-02 Future Expansion Board

Physical Dimensions Version 1: 19 Inches (Width) × 1U (Height) × 2.5 Inches (Depth); Version 2: 20.5cm×22.4cm×3.3cm

Physical Weight Version 1: 2 Pounds; Version 2: Approximately 0.1kg

Supply Voltage 24VDC

Operating Temperature Range -40℃ to 70℃

Storage Temperature Range -55℃ to 90℃

Relative Humidity 95%, Non-Condensing

Vibration Resistance 2grms

Shock Resistance 50g, 11ms Half Sine Wave

Certification Standards CE Certification

Country of Origin USA

Mounting Method Rack Slot Mount

Core Functions Filling Empty Rack Slots, Dust and Debris Prevention, Assisting Module Communication, Cooperating with Power Distribution

Material Industrial-Grade Durable Material

Warranty Period 1 Year

Product Performance

Made of industrial-grade durable materials, it has a robust structure, can withstand harsh industrial environments such as high dust, high and low temperatures, and vibration, is not easy to be damaged, and has a long service life.

Precisely compatible with BENTLY 3500 series full-size racks and mini racks, it can perfectly fill empty rack slots, fit closely with the rack structure, effectively block dust and debris from entering, and protect the electronic components inside the rack from damage.

It has auxiliary communication and power distribution functions, can cooperate with the rack to realize stable communication between various 3500 series modules, and at the same time assist the rack to distribute power to each module on demand, ensuring the normal operation of the entire control system.

With a compact structure, it adopts a standardized rack slot mounting design, which is easy to install, no complex wiring and debugging are required, and installation and replacement can be completed quickly, improving maintenance efficiency.

It has a wide temperature adaptation range, with an operating temperature covering -40℃ to 70℃ and a storage temperature covering -55℃ to 90℃, which can maintain structural stability in extreme high and low temperature environments without affecting the use effect.

It has good vibration and shock resistance, with a vibration resistance of 2grms and a shock resistance of 50g, which can resist vibration and shock interference in industrial fields, avoiding its own loosening or damage.

It can be seamlessly used with the BENTLY 128031-02 future expansion board, reserving space for subsequent module expansion of the rack, and improving the scalability and flexibility of the equipment.

Certified by CE, it meets international industrial safety standards, is safe and reliable to use, and can be directly applied to various industrial control scenarios without additional adaptation and modification.
