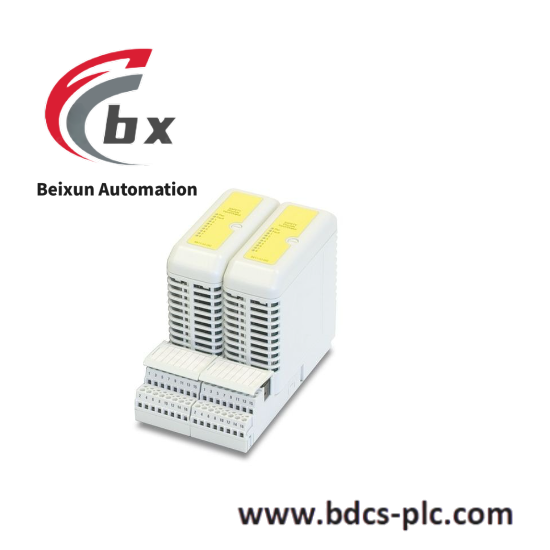

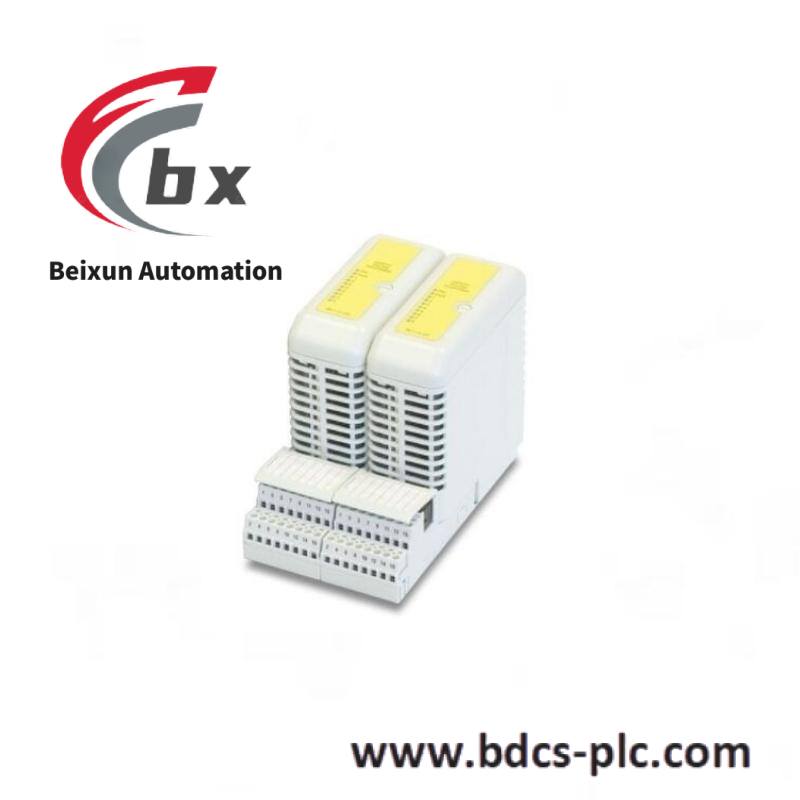

GE 8810-HI-TX Synchronization Device Module

Specific Parameters

Brand GE (GE Fanuc)

Product Series PAC8000 Series

Product Type 8-channel Safety Analog Input Module, HART Protocol Compatible Module, Industrial Safety I/O Module

Model 8810-HI-TX

Number of Input Channels 8 single-ended input channels

Input Signal Type 4-20mA analog signal, non-incendive field circuits

Communication Protocol Supports HART Protocol

Resolution 16-bit

Response Time 25ms (analog signal); 0.75s/pt (HART signal)

Safety Certification SIL 2 Safety Certification

Hazardous Area Adaptation Class I, Div. 2 Hazardous Areas

Rated Power Supply Requires 24VDC bussed field power from 8914-PSAC module

Current Consumption System Side 70mA; Field Side 350mA

Accuracy ±0.1%

Isolation Voltage 2500V

Operating Temperature Range 0℃ to 45℃

Storage Temperature Range -40℃ to 70℃

Relative Humidity 10% to 90%, Non-Condensing

Physical Dimensions 440mm×44mm×220mm (Length×Width×Height)

Physical Weight 3kg

Mounting Method Flat Panel Mount or T-section/G-section DIN Rail Mount

Compatible System PAC8000 Series Modular I/O System

Core Functions 4-20mA Analog Signal Acquisition, HART Pass-through, Data Reporting, Status Diagnosis, Safety Interlock Support

Terminal Characteristics 1 field terminal per module, supporting direct on-site wiring without additional terminals

Compatible Transmitters 2-wire, 3-wire, 4-wire transmitters

Warranty Period 12 Months

Product Performance

Adopting an 8-channel single-ended input design, specially built for 4-20mA analog signal acquisition, it can simultaneously collect 8 channels of on-site process parameter signals with an acquisition accuracy of ±0.1%, ensuring the accuracy and reliability of data acquisition and meeting the high-precision requirements of industrial safety control.

Supports the HART communication protocol, which can realize HART pass-through, data acquisition and status reporting functions, seamlessly connect with HART protocol transmitters, complete bidirectional conversion between analog and digital signals, and facilitate staff to remotely monitor the status of on-site equipment.

Passed SIL 2 safety certification, compatible with Class I, Div. 2 hazardous areas, with a high safety level, it can be directly applied to industrial safety interlock systems, effectively ensuring the safety of equipment and personnel and avoiding safety accidents.

Adopts a fully modular open architecture, which can be seamlessly connected with PAC8000 series bus interface modules, controllers and power modules, supports flexible system expansion, and adapts to industrial automation control systems of different scales.

Equipped with a comprehensive mechanical keying safety system, the field terminals can be quickly plugged and replaced, and on-site wiring can be connected directly without additional terminals or connectors. It can be quickly repaired and replaced after damage, greatly improving maintenance efficiency.

It has complete self-diagnostic functions, which can real-time monitor the operating status of the module, feedback fault information in a timely manner, facilitate staff to quickly locate fault points, reduce downtime maintenance time, and ensure continuous and stable operation of the system.

The isolation voltage reaches 2500V, with excellent anti-electromagnetic interference performance, which can resist complex electromagnetic interference in industrial fields, prevent high voltage from entering and damaging the module and system equipment, and ensure stable signal transmission and safe operation of the module.

The response speed is stable, the analog signal response time is only 25ms, and the HART signal response time is 0.75s/pt, which can quickly collect and transmit on-site process parameters, ensure real-time response of control commands, and improve system control accuracy.

Compatible with 2-wire, 3-wire and 4-wire transmitters, it has extremely strong compatibility, can be connected with different types of on-site detection equipment without additional modification, and reduces system integration costs.

It has a reasonable temperature adaptation range, with an operating temperature covering 0℃ to 45℃ and a storage temperature covering -40℃ to 70℃, which can maintain structural and performance stability in conventional and extreme storage environments, with a long service life.
