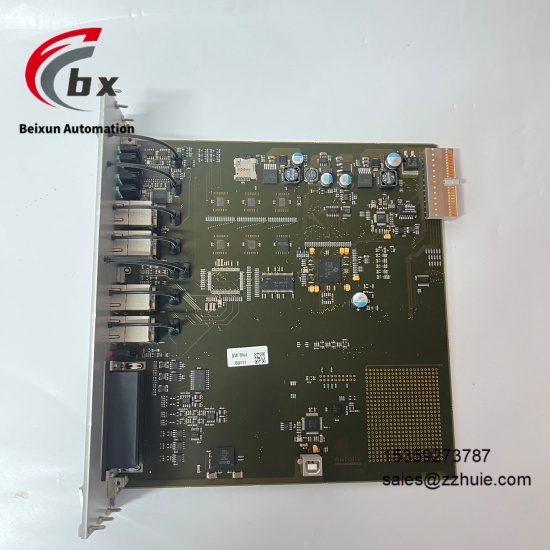

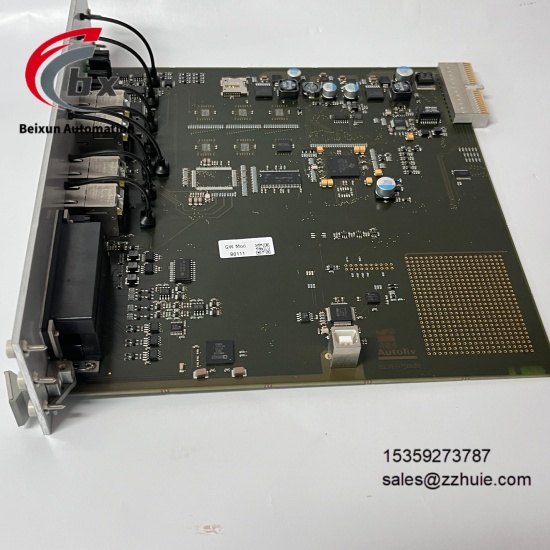

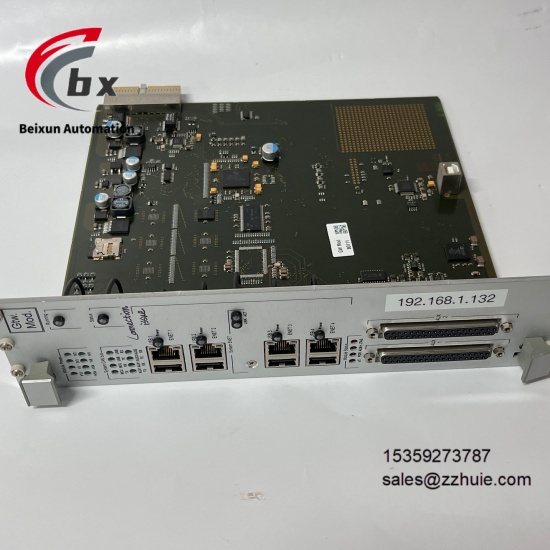

Autoliv Gtw.Mod. B0110 627697900B Automotive safety system dedicated gateway module

Autoliv Gtw.Mod. B0110 627697900B Automotive safety system dedicated gateway module

Specific Parameters​

Electrical Parameters​

Supply Voltage 9V DC-16V DC, compatible with automotive battery power supply system​

Quiescent Current ≤35mA, Operating Current ≤200mA​

Communication Protocols Supports CAN 2.0A/B, LIN 2.2A, compatible with SAE J1939 protocol​

Communication Rate Up to 1Mbps for CAN bus, up to 20kbps for LIN bus​

Communication Interfaces 4 CAN bus interfaces, 2 LIN bus interfaces​

Signal Input 8 digital inputs, 4 analog inputs (0-5V)​

Signal Output 6 digital outputs (transistor type), maximum output current 2A per channel​

Isolation Level 2500V AC isolation between power supply and communication interfaces, complying with ISO 10605 standard​

Response Time Data forwarding delay ≤5ms​

Mechanical and Environmental Parameters​

Overall Dimensions 70mm×50mm×22mm, compact structure​

Weight 150g, lightweight design suitable for vehicle installation space​

Mounting Method Bolt fixing, compatible with installation at the rear of the vehicle instrument panel or chassis bracket​

Protection Rating IP6K9K, with waterproof, dustproof and high-temperature flushing resistance​

Operating Temperature -40℃ to 85℃, covering the full operating environment temperature of the vehicle​

Storage Temperature -55℃ to 125℃, meeting extreme storage and transportation requirements​

Vibration Level Complies with ISO 16750-3 standard, withstanding 10Hz-2000Hz vibration (acceleration 20g)​

Shock Level Complies with ISO 16750-3 standard, withstanding 100g peak acceleration (duration 11ms)​

EMC Compliance Complies with ISO 11452-2/4 standard, radiated emission ≤30dBμV/m​

Product Performance​

High communication efficiency, ≤5ms data forwarding delay ensures real-time interaction of safety signals​

Strong protocol compatibility, supporting multiple types of bus protocols to achieve seamless connection of different safety subsystems​

Excellent anti-interference capability, complying with automotive-grade EMC standards, no data loss or signal disorder​

High operational reliability, selection of automotive-grade components, Mean Time Between Failures (MTBF) ≥150000 hours​

Comprehensive diagnostic functions, real-time monitoring of bus status and module self-fault, triggering fault code storage and reporting​

Wide environmental adaptability, wide temperature, vibration resistance and shock resistance characteristics adapt to various climates and road conditions​

Excellent protection performance, IP6K9K rating can resist high-pressure water during car washing and high-temperature cleaning operations​

Excellent power consumption control, low quiescent current design reduces vehicle standby energy consumption, meeting the energy-saving needs of new energy vehicles​
