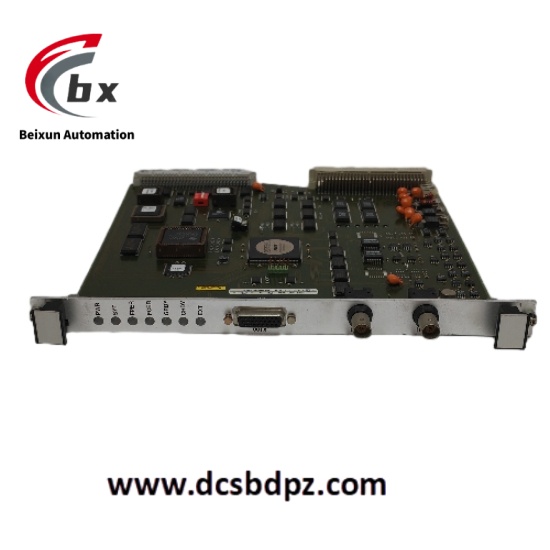

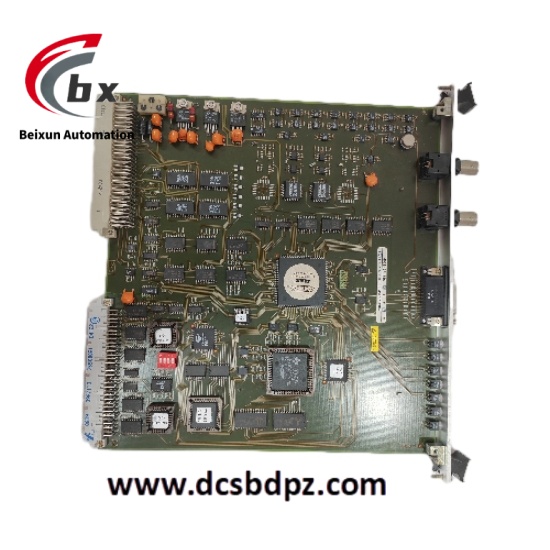

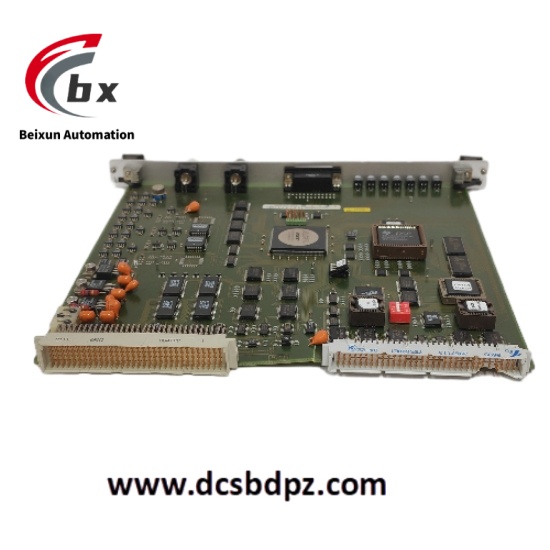

ASML MC1AB37 4022.437.1856 High precision motor controller

Specific Parameters

Electrical Parameters

Supply Voltage: 3-phase 200V AC±10% (50/60Hz)

Rated Power: ≤9kVA (full load operation)

Control Signal Output: Differential signal (±10V DC, 16-bit resolution)

Motor Drive Current: 0-20A (continuous output), 30A peak (100ms duration)

Insulation Resistance: ≥1000MΩ (tested at 500V DC, between terminals)

Signal Transmission Impedance: 100Ω±10% (high-speed differential signal channels)

Control Precision Parameters

Position Control Resolution: 0.06nm (full stroke range)

Speed Control Accuracy: ±0.001% (at rated speed)

Dynamic Response Time: ≤1ms (step command response)

Multi-axis Synchronization Error: ≤50ns (four-axis coordinated control)

Position Repeatability: ≤0.3nm (100 consecutive positioning tests)

Environmental Parameters

Operating Temperature Range: 20℃±10℃ (Class 1 cleanroom environment)

Storage Temperature Range: -20℃ to +60℃

Relative Humidity: 30%-50% (non-condensing, when temperature ≤40℃)

Vibration Resistance: Complies with IEC 60068-2-6 standard (10-500Hz, acceleration ≤5g)

EMC Compliance: Meets EN 61000-6-2 industrial equipment standard

Physical Parameters

Mounting Type: Equipment embedded installation (compatible with ASML standard control cabinet rails)

Dimensions (L×W×H): 482mm×177mm×132mm (19-inch rack-mount)

Weight: Approximately 8.5kg

Connector Type: High-speed differential connector, power interface with IP67 protection class

Substrate Material: Ceramic-reinforced FR4 (high temperature resistance up to 260℃)

Product Performance

Ultra-Precision Positioning Capability: The 0.06nm position control resolution enables atomic-level motion adjustment. Combined with real-time error compensation algorithms, the overlay accuracy of lithography equipment is stably maintained at 1-2nm, meeting the manufacturing requirements of 2nm and below advanced process chips, and adapting to ASML’s High-NA EUV lithography machines mass-produced in 2025.
High Dynamic Response: The ≤1ms command response time and 30A peak current output support servo motors to achieve high-speed start-stop with 7g acceleration, adapting to the switching frequency of 300 wafers per hour for dual stages, ensuring the mass production efficiency of lithography equipment.
Strong Anti-Interference Performance: Adopting double electromagnetic shielding housing and differential signal transmission design, the control signal bit error rate is ≤10⁻¹² in the high-frequency electromagnetic environment of lithography machines; the temperature compensation algorithm can offset mechanical deformation errors caused by ±5℃ ambient temperature difference.
High-Reliability Operation: Key components use military-grade materials, with Mean Time Between Failures (MTBF) ≥80000 hours; supports online fault diagnosis, which can real-time monitor parameters such as current and temperature through the ASML equipment main control system, with fault location accuracy reaching chip level.
Multi-Platform Compatibility: It can adapt to both DUV and EUV lithography technology routes through firmware upgrades, supporting different models of lithography machines such as NXT 2000i and EXE 5000 without hardware replacement, while being compatible with 2nm logic nodes and memory nodes of the same density process equipment.
