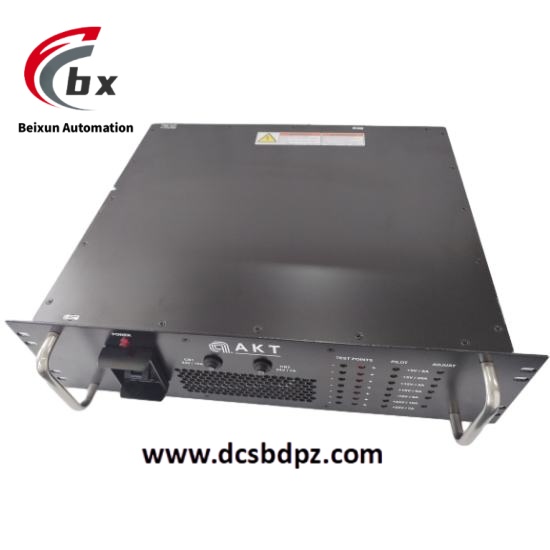

AMAT 0190-73524 High precision servo drive
Electrical specifications
Input voltage: 200-480V AC
Current level: 5-90A (divided into different power models, such as 230V series 5A, 8A, 400V series 14A, 20A, etc.).
Power range: 0.75-400kW (supporting different equipment load requirements).
control performance
Control accuracy: ± 0.1% (based on servo drive industry standards, suitable for semiconductor precision motion scenarios).
Response time:<1ms (fast dynamic response, meeting high-speed process switching requirements).
Control mode: Supports multiple modes such as sensorless vector control (SVC), V/F control, torque control, etc.
communication interface
Protocol support: RS485, Modbus RTU
Expansion interface: 8-channel digital input, 2-channel analog input, 2-channel analog output (supports seamless integration with PLC or upper computer).
Physical specifications
Size: Approximately 300 × 200 × 150mm (compact design, suitable for embedded installation).
Protection level: IP65 (dustproof and waterproof, suitable for clean room environment).
Product Performance
High precision and stability
Nano level positioning: Combined with high-precision servo motors and encoders, it can achieve a positioning accuracy of ± 1 μ m for wafer transfer robotic arms, meeting the requirements of advanced processes for alignment accuracy.
Anti interference capability: Adopting electromagnetic shielding design and digital filtering technology to reduce the impact of electromagnetic interference (EMI) on control signals during the operation of plasma equipment.
Reliability and Durability
Redundant design: The key circuit adopts dual power backup and overcurrent/overheat protection to ensure the stability of the equipment under long-term high load operation.
Maintenance convenience: The modular structure supports online replacement of vulnerable components (such as IGBT modules), with an average repair time (MTTR) of less than 30 minutes.
Intelligence and compatibility
Adaptive control: Built in AI algorithm can automatically adjust PID parameters according to load changes, optimize motion trajectory and reduce energy consumption.
Multi axis collaboration: supports synchronous control of multiple drivers to achieve multi joint linkage of complex robotic arms (such as the 3-axis synchronization of Delta robots).
