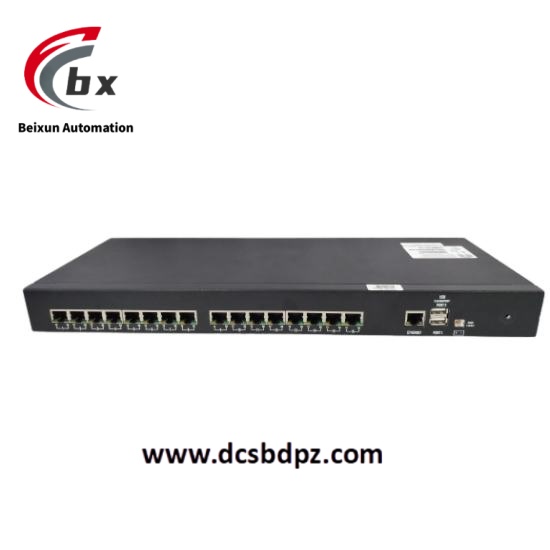

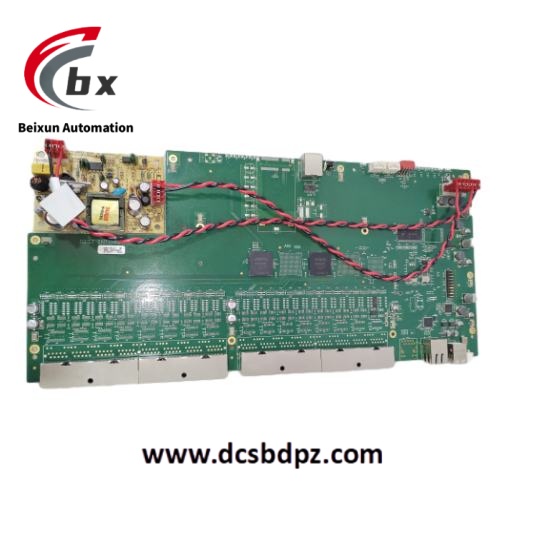

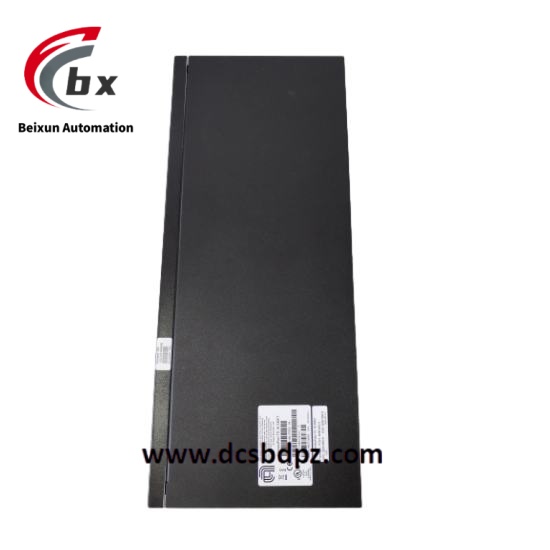

AMAT 0190-27952 Industrial grade serial port server module

Technical Parameter
Interface Configuration
16 RS232 ports (can be flexibly configured to RS422/485 mode through software), supporting full duplex or half duplex communication, with signals including TXD/RXD/RTS/CTS/DTR/DCD/RI.
Dual Ethernet ports (10/100 Mbps), supporting IPv4/IPv6 dual protocol stacks, providing redundant network connections.
USB 2.0 interfaces (2), used for data storage or configuration loading.
Power supply and power consumption
Input voltage: Supports 9-30V DC or 100-240V AC to meet the wide voltage requirements of industrial environments.
Power consumption: Typical value of 6W, maximum value of 12W, with low-power mode.
Physical specifications
Size: 43.18cm × 17.65cm × 4.1cm, weight approximately 2.3kg, suitable for rack mounted installation.
Environmental tolerance: Operating temperature from 0 ° C to 60 ° C, humidity from 5% to 95% (non condensing), in compliance with industrial standards.
Security features
Supports SSL/TLS encryption, SSHv2 authentication, and FIPS 197 encryption algorithms to ensure secure data transmission.
Built in ESD protection (15kV serial port) and surge protection to enhance equipment reliability.

Product Performance
Communication protocol support
Basic protocols: TCP/UDP, DHCP, Modbus TCP, RFC2217 (serial remote login).
Semiconductor Industry Agreement: Supports SECS/GEM standards (SECS I/II, GEM, HSMS) and can seamlessly integrate with the Manufacturing Execution System (MES) of wafer fabs.
Patent technology: Digi RealPort realizes virtual mapping of serial devices and supports bidirectional connection between hosts and devices.
Data processing capability
The maximum throughput of a single port is 230kbps, meeting the requirements of real-time data acquisition and control.
Supports multi-threaded processing and can manage concurrent communication of 16 serial devices simultaneously.
Configuration and Management
Flexible configuration through web interface or CLI command line, supporting remote firmware upgrade and log monitoring.
Built in LCD display screen, real-time display of port status, network connection, and diagnostic information.
