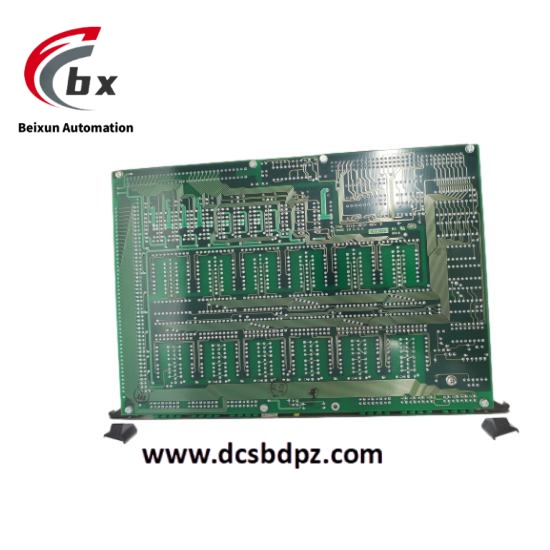

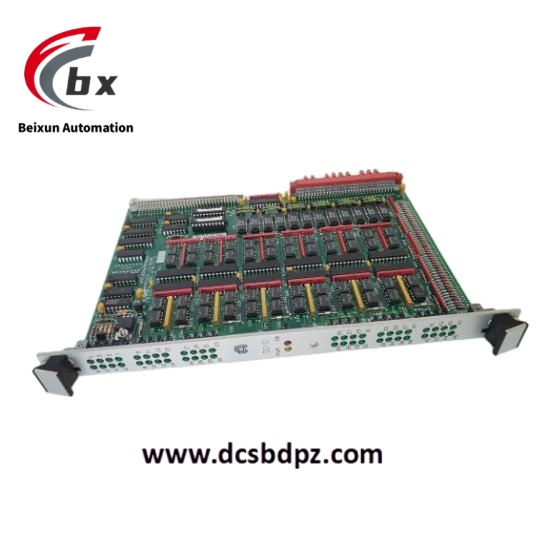

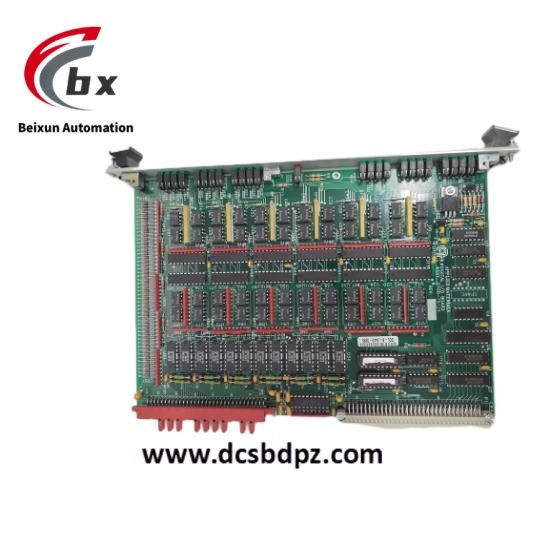

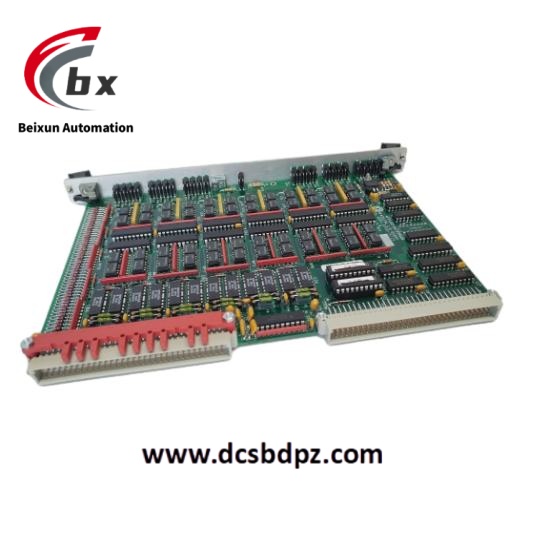

AMAT 0100-76124 Digital Input/Output (DI/DO) Control Module

Specific parameter

Electrical characteristics:
Working voltage: 24V DC (± 10%), supports redundant power input (main+backup).
Digital channel: 32 inputs/32 outputs, compatible with NPN/PNP signals, output load capacity ≥ 2A/channel.
Communication interface: VME64x bus (bandwidth 160MB/s), supporting high-speed data transmission with the main controller.
Physical specifications:
Size: 3U height, compatible with standard 19 inch cabinets
Weight: Approximately 0.8kg (estimated value).
Environmental parameters:
Working temperature: 0 ° C to 50 ° C (typical environment for semiconductor equipment).
Humidity: 5% -95% (non condensing).

Product Performance
Real time decoupling control:
Supports μ s level response time, suitable for precise synchronization of valve actions in semiconductor processes, such as scanning electrode timing control in ion implantation equipment.
Built in decoupling algorithm, which can dynamically adjust valve position to compensate for inlet or exhaust pressure fluctuations and improve process stability.
High reliability design:
Each channel is equipped with independent LED indicator lights that display signal status (input/output levels, fault alarms) in real-time.
Support channel level diagnostic function, which can remotely detect abnormalities such as short circuits and open circuits, and trigger fault safety mode (such as forced output of safety level) through the main controller.
Scalability and compatibility:
Support direct connection with AMAT 0100 series backplane modules to build a distributed I/O system.
Compatible with AMAT 0100-71311 high-speed processing module, enabling collaborative work between complex logic control and signal acquisition.
Anti interference capability:
By using a metal shielding shell and power filtering circuit, it can operate stably in high-frequency noise and mechanical vibration environments, meeting the stringent requirements of semiconductor equipment.

application area
Semiconductor manufacturing equipment:
Etching and thin film deposition system: Control the opening and closing timing of vacuum pumps and gas valves, coordinate multi-channel RF power sensor data, and dynamically adjust process parameters.
Ion implantation equipment: Monitor ion beam parameters, adjust scanning electrodes and acceleration voltage through decoupling control to ensure doping uniformity.
CVD cluster tools, such as the P5000 series, are used to control chamber pressure, temperature, and gas flow rate to optimize the quality of thin film growth.
Energy and Electricity:
Smart grid substation: Collecting circuit breaker status signals and implementing relay protection actions through digital output.
Turbine control system: Decouple high/low pressure valve control, maintain stable inlet and exhaust pressure, and improve energy conversion efficiency.
Industrial automation:
Robot workstation: processes the joint position sensor signals of the robotic arm, outputs control instructions to adjust the motion path.
Intelligent warehousing system: controls the start and stop of shelf motors and conveyor belts to achieve automatic sorting of goods.
