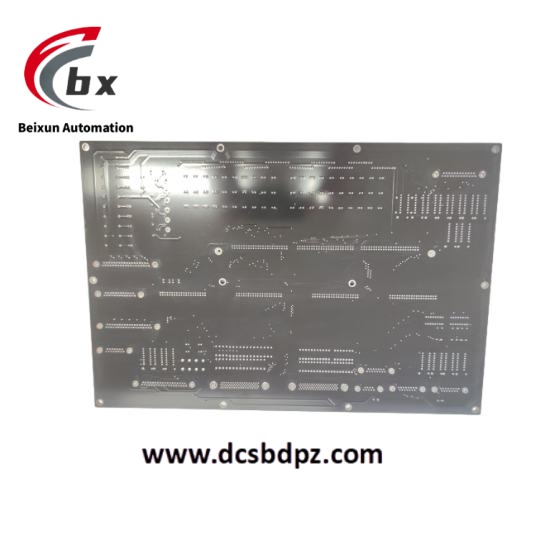

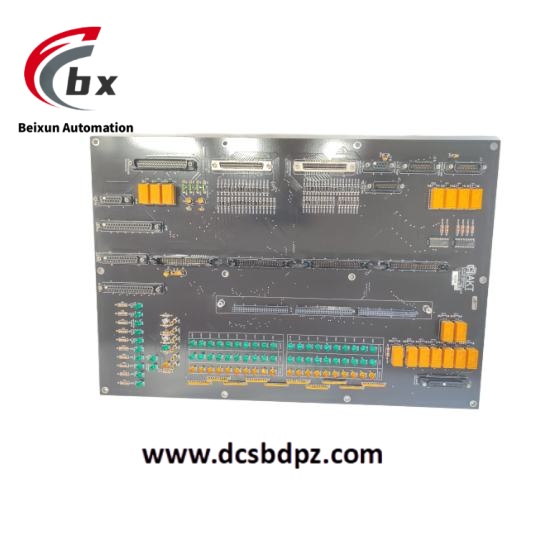

AMAT 0100-71313 High density digital input/output (DI/DO) expansion module
Specific parameters
Electrical characteristics:
Working voltage: 24V DC (± 10%), supports redundant power input (main+backup).
Digital channel: 32 inputs (supporting NPC/PNP compatibility), 32 outputs (maximum load 2A/channel).
Signal type: Supports standard industrial signals (such as 24V DC level), compatible with TTL/CMOS logic.
Communication interface: Communicate with the main controller through a backplane bus (such as VME64x), supporting real-time data transmission.
Physical specifications:
Size: 3U height, compatible with standard 19 inch cabinets
Weight: Approximately 0.7kg (estimated value).
Environmental parameters:
Working temperature: 0 ° C to 50 ° C (typical environment for semiconductor equipment).
Humidity: 5% -95% (non condensing).
Product Performance
High speed response capability:
The response time of the digital channel is less than 0.5ms, meeting the real-time interlocking control requirements in semiconductor processes (such as emergency shutdown and process step switching).
Support batch data transfer mode, which can read/write all channel statuses at once, improving system efficiency.
Reliability and maintenance convenience:
Each channel is equipped with independent LED indicator lights that display signal status (input/output levels, fault alarms) in real-time.
Support channel level diagnostic function, which can remotely detect channel short circuits, open circuits and other abnormalities through the main controller.
Scalability and compatibility:
Support direct connection with AMAT 0100 series backplane modules (such as 0100-71275) to build a distributed I/O system.
Compatible with AMAT 0100-71311 high-speed processing module, enabling collaborative work between complex logic control and signal acquisition.
Safety design:
The output channel supports Fail Safe mode, which can be configured to maintain the current state or forcibly switch to a safe level when power is off.
Complies with the IEC 61131-2 industrial control standard and supports PLC programming logic integration.
application area
Semiconductor manufacturing equipment:
Etching system: Monitor the status signals of vacuum pumps and gas valves, and control the wafer transfer action of the robotic arm.
Ion implantation equipment: Coordinate the switching timing of scanning electrodes to ensure the uniformity of ion beam current.
Thin film deposition equipment: controls the on/off of heating elements to achieve precise adjustment of process temperature.
Industrial automation:
Robot workstation: processes the joint position sensor signals of the robotic arm, outputs control instructions to adjust the motion path.
Intelligent warehousing system: controls the start and stop of shelf motors and conveyor belts to achieve automatic sorting of goods.
Energy and Electricity:
Smart grid substation: Collecting circuit breaker status signals and implementing relay protection actions through digital output.
Photovoltaic cell production line: Control the vacuum valve and pressure sensor interlock of the laminating machine to improve the yield of solar cells.
