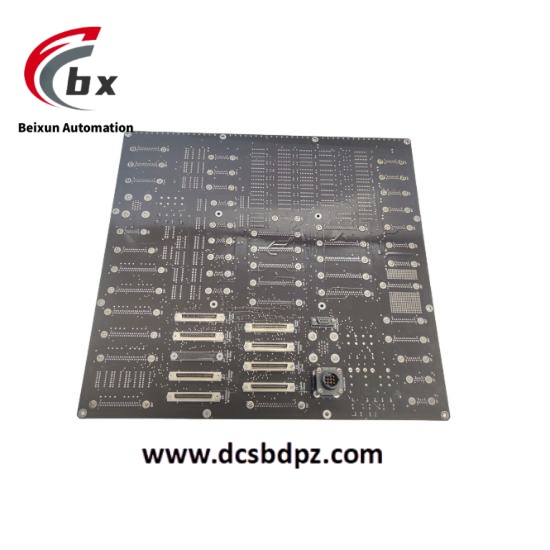

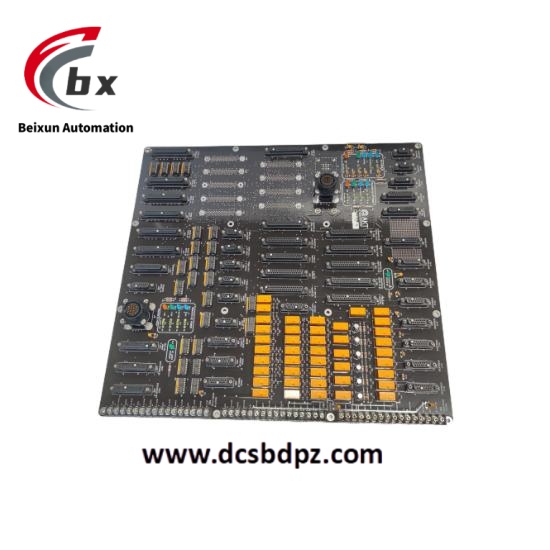

AMAT 0100-71309 Multi functional I/O control module
Specific parameters
Electrical characteristics:
Working voltage: 24V DC (± 10%), supports redundant power input (main+backup).
Digital channel: 16 inputs/16 outputs, supporting drain/source logic (configurable).
Analog Channel: 8 inputs (16 bit resolution)/4 outputs (14 bit resolution), supporting signal ranges such as ± 10V and 0-20mA.
Communication interface: RS-485 (Modbus RTU), Profibus DP, with a maximum baud rate of 12Mbps.
Physical specifications:
Size: 3U height, compatible with standard 19 inch cabinets
Weight: Approximately 0.6kg (estimated value).
Environmental parameters:
Working temperature: 0 ° C to 50 ° C (typical environment for semiconductor equipment).
Humidity: 5% -95% (non condensing).
Product Performance
High precision signal processing:
The analog input channel supports automatic calibration and temperature drift compensation to ensure long-term stability and is suitable for precise control of key parameters in semiconductor processes, such as gas flow rate and RF power.
The response time of the digital channel is less than 1ms, meeting the requirements of real-time interlocking control (such as equipment safety protection).
Redundancy and reliability:
Dual power input automatic switching to avoid control interruption caused by single point failure.
The critical signal path adopts gold-plated contacts and anti-oxidation coatings to reduce maintenance frequency.
Flexibility and Scalability:
Support configuring channel types (DI/DO/AI/AO) through software to adapt to different process requirements.
Compatible with AMAT 0100 series backplane modules (such as 0100-71275), it can be directly inserted to achieve system integration.
Diagnosis and maintenance:
Built in LED indicator lights display channel status and communication connections in real-time, supporting remote diagnostic functions.
Support firmware online upgrade to simplify system maintenance process.
application area
Semiconductor manufacturing equipment:
CVD system: Collect gas flow sensor signals, control valve opening to achieve precise gas ratio in the process.
Etching equipment: Monitor the status of the RF power supply and control the timing of plasma generation through digital output.
Thin film deposition equipment: Coordinate the collaborative work of heating elements and vacuum systems to ensure the uniformity of the thin film.
Industrial automation:
High end CNC machine tools: connect servo motor drivers and position sensors to achieve closed-loop motion control.
Robot workstation: processes analog image data of the vision system, outputs control instructions to adjust the motion of the robotic arm.
Energy and Electricity:
Smart grid substation: Collecting analog data such as current and voltage, and implementing relay protection actions through digital output.
Photovoltaic cell production line: Control the temperature and pressure parameters of the laminating machine to improve the yield of solar cells.
