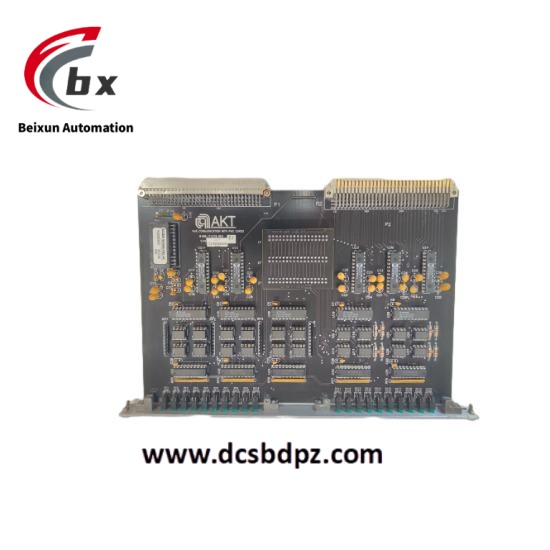

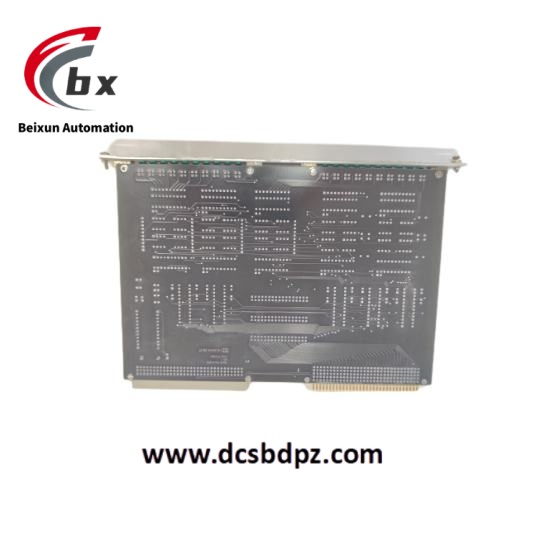

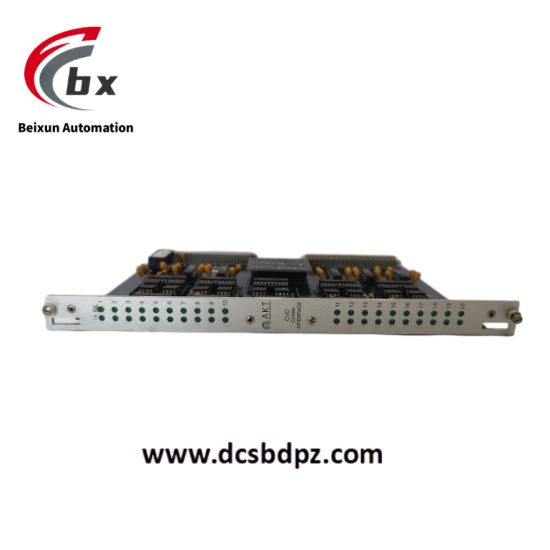

AMAT 0100-71278 VME communication interface module

Specific parameters
Electrical characteristics
Working voltage: 24V DC (± 10%), supports redundant power input (main+backup).
Signal transmission rate: The VME bus bandwidth reaches 160MB/s (VME64x protocol), and the PMC card interface supports PCIe 2.0 (5GT/s).
Protocol support: VMEbus, Modbus RTU, Profibus DP, EtherNet/IP.
Physical specifications
Size: 3U height, compatible with standard 19 inch cabinets (specific size not disclosed, estimated to be 160mm × 100mm).
Weight: Approximately 0.8kg (estimated value).
interface type
VME bus interface: 64 bit data/address multiplexing pin.
PMC card slot: Supports Type II standard PMC cards.
Auxiliary interface: RS-232 debugging port, LED status indicator light.
Environmental parameters
Working temperature: 0 ° C to 50 ° C (typical environment for semiconductor equipment).
Humidity: 5% -95% (non condensing).

Product Performance
High speed data transmission:
Adopting low-power differential signaling (LVDS) technology, it has strong anti-interference ability, supports real-time data synchronization, and is suitable for parallel processing of multi-sensor data in CVD equipment.
The dual path design of VME bus and PMC card interface can achieve data diversion transmission and improve system throughput.
Redundancy and reliability:
Dual power input (main+backup) automatically switches to avoid communication interruption caused by single point failure.
The key signal path adopts electromagnetic shielding design, combined with power filtering and decoupling capacitors, effectively suppressing high-frequency noise.
Compatibility and Scalability:
Compatible with AMAT 0100 series backplane modules (such as 0100-71275), it can be directly inserted into the backplane to achieve system integration.
Support the expansion of functions through PMC cards, such as adding fiber optic communication modules to meet long-distance transmission requirements.
Real time performance and responsiveness:
Support hard real-time operating systems (such as VxWorks) to ensure microsecond level response of control instructions and meet the high-precision requirements of semiconductor processes.

application area
Semiconductor manufacturing equipment:
CVD system: As a VME communication node, it connects components such as process chamber controllers, gas flow sensors, and RF power supplies to achieve real-time acquisition and closed-loop control of process parameters.
Etching equipment: Collaborate with PMC card to process multi-channel sensor data, ensuring etching uniformity and accuracy.
Thin film deposition equipment: Manage the synchronous operation of subsystems such as heating, vacuum, and gas injection to enhance process stability.
Industrial automation:
High end CNC machine tools: connect servo controllers and spindle drives through VME bus to achieve high-precision motion control.
Robot workstation: supports high-speed data exchange between multi axis controllers and vision systems, optimizing robot path planning.
Energy and Electricity:
Smart grid substation: used for centralized control and communication of relay protection devices and data acquisition units (RTUs) to ensure the stability of the power grid.
Photovoltaic cell production line: Coordinate the synchronous operation of equipment such as laminating machines and laser cutting machines to improve production efficiency.
