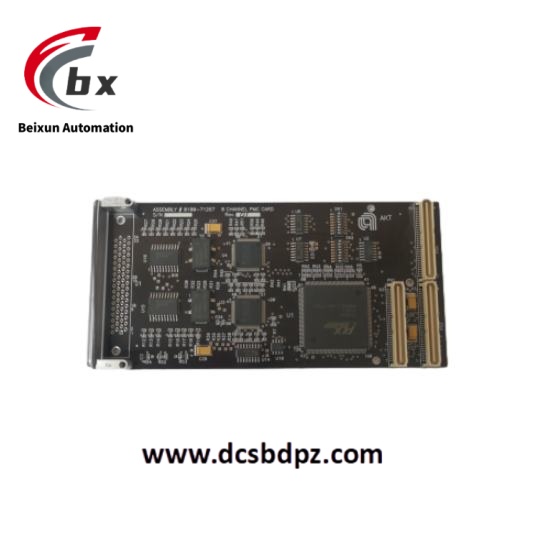

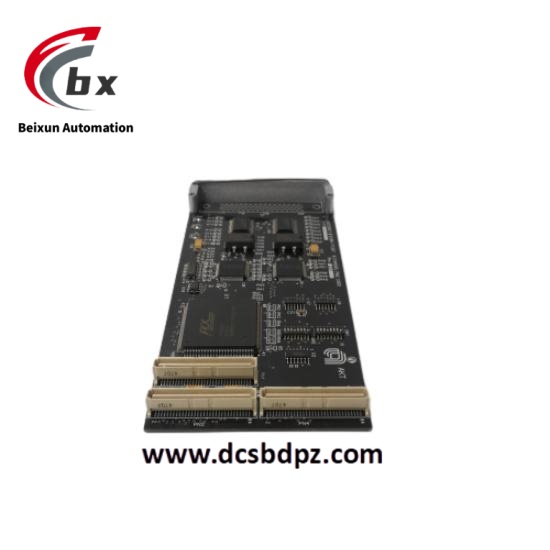

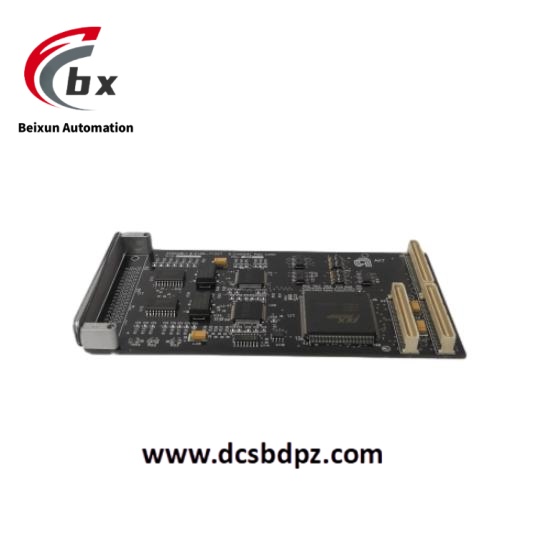

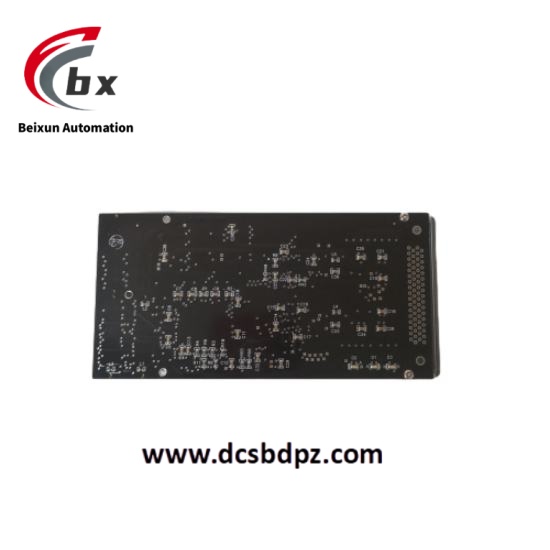

AMAT 0100-71267 Industrial grade counter module

Specific parameters
Input characteristics:
Supports input of pulse signals and level signals.
Communication interface:
RS-232 serial interface
Ethernet interface
Power requirements:
Working voltage: 220V AC (± 10%), frequency 60Hz.
Environmental parameters:
Working temperature: -20 ° C to 60 ° C
Humidity: 5% -95% (non condensing).
Weight: Approximately 1.2kg (estimated value).

Product Performance
High precision and fast response:
By using high-speed counter chips, high-frequency signals can be captured in real time to meet the high-precision requirements of semiconductor production lines and other scenarios.
The resolution reaches 0.01%, ensuring that the counting error is below industry standards.
Reliability design:
The redundant communication link (RS-232+Ethernet) can automatically switch to avoid data interruption caused by a single point of failure.
Built in surge protection and short circuit protection enhance anti-interference capability.
Scalability and compatibility:
Support seamless integration with PLC and DCS systems, and can be used as an I/O expansion module.
Compatible with multiple industrial protocols (such as Modbus RTU) for easy networking of devices from multiple vendors.

application area
Semiconductor manufacturing:
Counting of workpieces, monitoring of conveyor belt speed, and statistics of equipment status (such as vacuum pump start stop times) in wafer production lines.
Cooperate with intelligent sensors to achieve closed-loop control of process parameters such as etching time and deposition times.
Industrial automation:
Counting of products in the packaging production line and statistics of ink consumption in printing machinery.
Motor operation time monitoring and maintenance cycle management.
Energy and Electricity:
Record the opening and closing times of circuit breakers in substations for equipment life assessment.
Statistics on the number of rotations of wind turbine blades to optimize power generation efficiency.
Transportation and Logistics:
Monitoring the number of operations of port container loading and unloading equipment to improve operational efficiency.
Counting and inventory management of goods in and out of the intelligent warehousing system.
