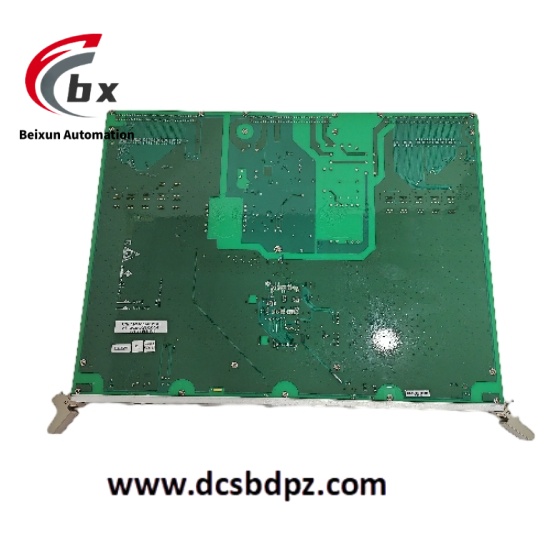

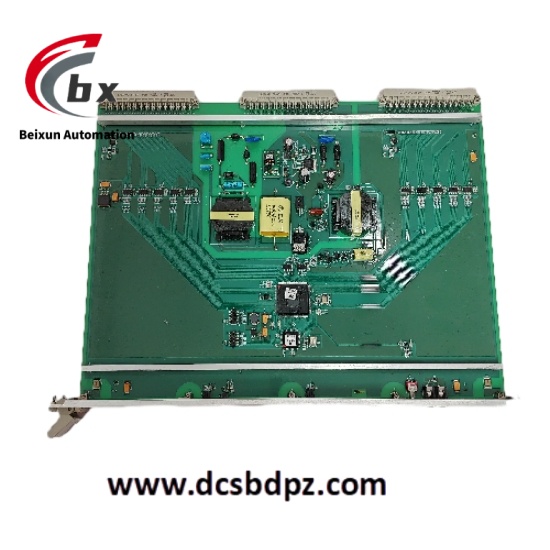

ALSTOM VPS 12004-102-03 V1.0.0 Input output module
ALSTOM VPS 12004-102-03 V1.0.0 is an industrial-grade input/output module, serving as a core component of the GE Mark VIe control system. Designed specifically for industrial automation scenarios, this module connects sensors and actuators, enabling real-time acquisition of process variable feedback and output of control signals to industrial equipment. It establishes a high-speed, stable data interaction channel between control systems and field devices, supporting precise monitoring and control of complex industrial processes.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ALSTOM VPS 12004-102-03 V1.0.0 Input output module
Specific Parameters
- Power Supply Parameters
- Supply Voltage: 24V DC (±10%)
- Maximum Power Consumption: ≤5W
- Digital Channels
- Digital Inputs: 32 channels, configurable as dry/wet contacts
- Digital Outputs: 32 channels, transistor output, maximum load 2A@24V DC
- Analog Channels
- Analog Inputs: 16 channels, supporting -10V DC to +10V DC, 4-20mA
- Analog Outputs: 8 channels, output range configurable as 0-10V DC, 4-20mA
- Resolution: 16-bit
- Accuracy: ±0.1% of full scale (at 25°C)
- Communication Parameters
- Communication Interface: EtherNet/IP
- Data Transfer Rate: 100Mbps
- Supported Protocols: Modbus TCP/IP
- Physical Parameters
- Dimensions: 140mm×100mm×75mm
- Mounting: 35mm standard DIN rail mounting
- Weight: Approximately 0.5kg
- Environmental Parameters
- Operating Temperature Range: -25°C to +70°C
- Storage Temperature Range: -40°C to +85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Protection Class: IP20
Product Performance
- High Channel Density Design: Integrates 32 digital I/O channels, 16 analog inputs and 8 analog outputs. A single module can meet multi-device connection requirements, reducing system wiring complexity and improving space utilization.
- Wide Signal Compatibility: Analog channels support voltage and current signal types; digital channels can be flexibly configured with contact modes. No additional conversion equipment is needed to adapt to different types of sensors and actuators, enhancing system integration flexibility.
- Built-in Diagnostic Functions: Features channel-level fault detection, power monitoring and communication diagnostics, providing real-time feedback on module operation status, supporting fault location and early warning, and reducing maintenance costs.
- Strong Environmental Adaptability: Passes wide-temperature testing from -25°C to +70°C, capable of stable operation in harsh industrial environments with vibration and electromagnetic interference, meeting strict reliability requirements of industrial sites.
- High-Speed Data Transmission: 100Mbps communication rate based on EtherNet/IP protocol ensures real-time transmission of process data, with control command response delay ≤10ms, guaranteeing dynamic control accuracy.
