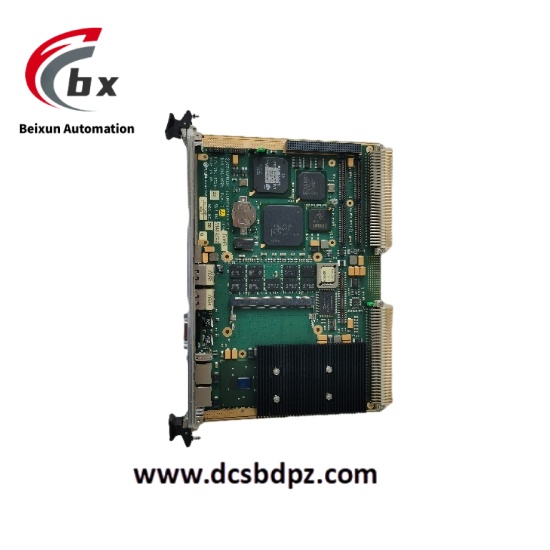

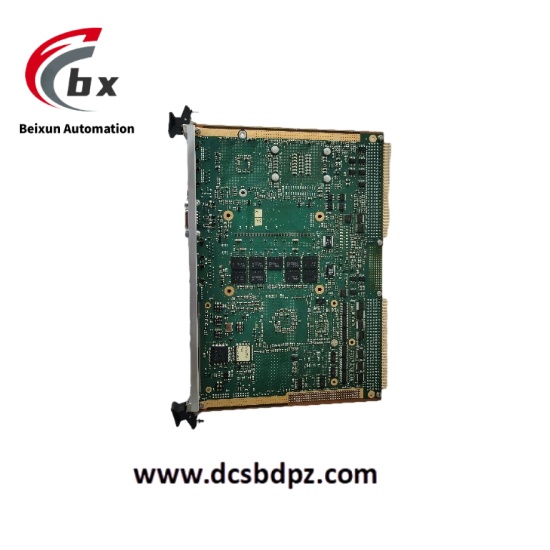

ALSTOM VP32502X Single board processor module

ALSTOM VP32502X Single board processor module

SPECIFIC PARAMETERS​

Brand ALSTOM​

Product Series VP Series Industrial-grade Single Board Processors​

Product Type Embedded Industrial Control Single Board Computer (SBC)​

Model ALSTOM VP32502X​

Working Voltage 5VDC±5% (Core Power Supply) 3.3VDC±5% (I/O Module Power Supply)​

Input Voltage 19-30VDC (Wide Range Adaptation, External Power Supply)​

Working Temperature -40℃ to 70℃​

Storage Temperature -55℃ to 85℃​

Relative Humidity 5% to 95% Non-condensing (No Dew Formation)​

Protection Level IP20 (Rack-mounted Installation)​

Installation Method VME Standard 1-slot Rack Installation (Compatible with VMEbus Architecture)​

Processor Intel Pentium M 1.6GHz Industrial-grade Processor​

Memory Configuration Maximum 2GB 333MHz DDR DRAM​

Storage Support CompactFlash™/Hitachi GST Microdrive™ 2.5-inch Hard Disk (Optional)​

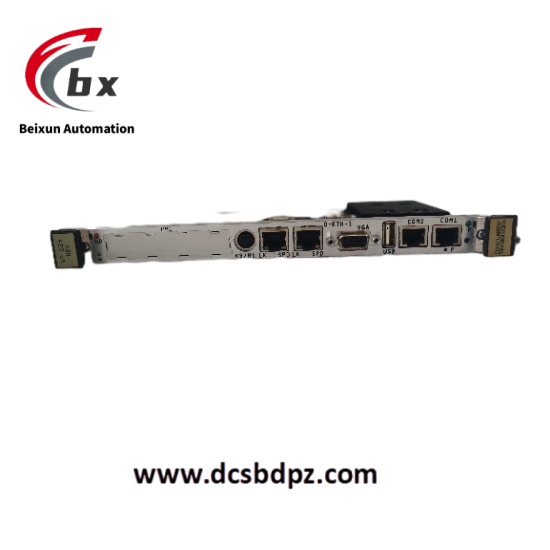

Communication Interfaces 1 Ethernet Port (RJ45) 2 Serial Ports (RS232/RS485 Configurable) 1 USB Interface 1 EIDE Interface (Ultra-DMA 100)​

Expansion Capacity Supports PMC Module Expansion (Enhanced Function Expansion)​

Current Consumption Typical 2.1A (5VDC) Maximum 3.0A (5VDC)​

Size 160mm×233mm×24mm (Length×Width×Height, VME 1-slot Standard Size)​

Weight 1.0kg​

Power Consumption Typical 10.5W (Full Load)​

Certification Qualification CE UL IEC 61373 Class 1 RoHS​

Compatible System VxWorks® Windows XP Embedded Linux® LynxOS® QNX® Industrial Automation Control Systems​

Diagnostic Function Built-in Self-test Function Power Supply Abnormality Alarm Module Fault Diagnosis Data Transmission Verification​

Anti-interference Level Complies with EN 55032/EN 61000-6-2 Industrial EMC Standards​

Vibration and Shock Resistance Complies with IEC 61373 Class 1 (Transportation and Industrial Environments)​

MTBF (Mean Time Between Failures) ≥100,000 Hours (At 40℃ Environment)​

PRODUCT PERFORMANCE​

Adopts Intel Pentium M 1.6GHz industrial-grade processor, combined with maximum 2GB DDR DRAM, providing high-speed data processing and complex logic operation capabilities to meet the needs of embedded real-time control​

Supports various real-time operating systems such as VxWorks, Linux and QNX, adapting to the software environment requirements of different industrial control scenarios​

VME 1-slot architecture design, compatible with standard VME bus, supports PMC expansion modules, enabling flexible expansion of communication interfaces and I/O functions to improve system scalability​

Industrial-grade ruggedized design, operating temperature ranging from -40℃ to 70℃, with extremely strong vibration and shock resistance, adapting to long-term stable operation in harsh industrial environments​

Integrates multiple types of communication interfaces including Ethernet, serial port, USB and EIDE, supporting high-speed data transmission and external device interconnection to meet the needs of multi-device collaboration in industrial control​

Supports Ultra-DMA 100 EIDE interface and CompactFlash storage expansion, providing a reliable local data storage solution to ensure no loss of critical data​

Built-in self-test and fault diagnosis functions, real-time monitoring of module operation status, power supply stability and data transmission integrity, fault information is fed back in a timely manner to facilitate rapid troubleshooting​

Complies with RoHS environmental standards and IEC 61373 Class 1 reliability standards, ensuring the safety and environmental adaptability of long-term product operation​

Compact 1-slot design, occupying small installation space, can be seamlessly integrated into existing industrial control racks, simplifying system deployment and maintenance​
