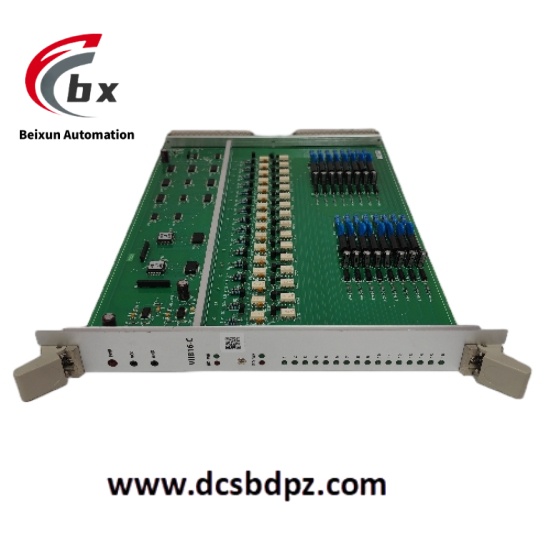

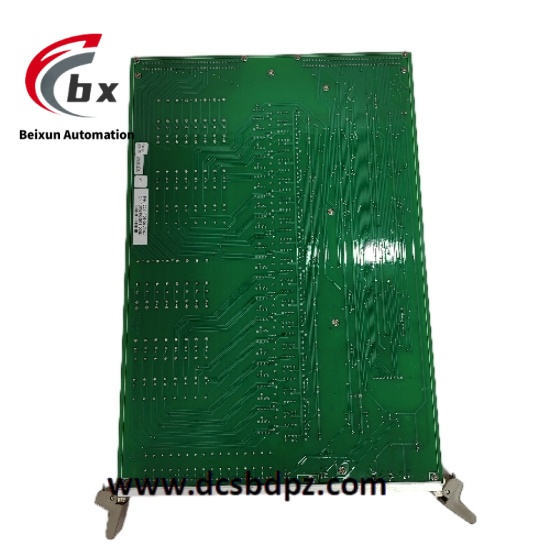

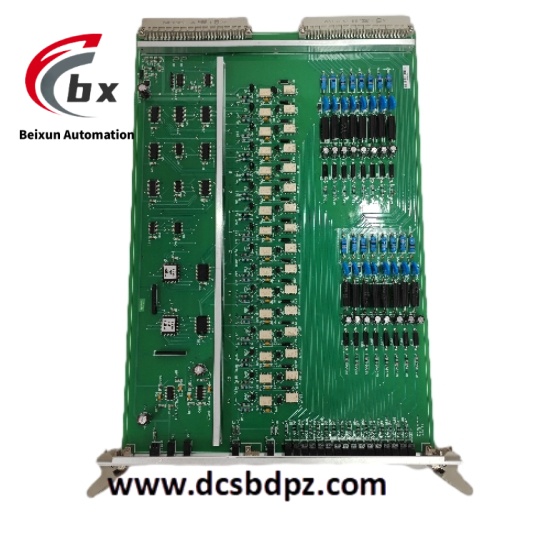

ALSTOM VIIB16-C 12011-105-00 V1.0.0 Digital quantity interface module
Specific Parameters
- Power Supply Parameters
- Supply Voltage: 24V DC (±10%)
- Current Consumption: Maximum 0.12A (when powered by 24V DC)
- Digital Input Channels
- Number of Channels: 8
- Input Type: NPN/PNP compatible
- Input Voltage Range: 0-30V DC
- Input Current: ≤5mA (per channel)
- Input Delay: ≤1ms
- Digital Output Channels
- Number of Channels: 8
- Output Type: Transistor output (NPN)
- Output Voltage: 24V DC
- Output Current: Maximum 0.5A (per channel)
- Output Delay: ≤2ms
- Isolation Characteristics
- Inter-channel Isolation: Available, isolation voltage 1000Vrms
- Power Supply and I/O Isolation: Available, isolation voltage 2000Vrms
- Physical Parameters
- Dimensions: 100mm (length) × 80mm (width) × 65mm (height)
- Weight: Approximately 0.25kg
- Environmental Parameters
- Operating Temperature Range: -20°C to +60°C
- Storage Temperature Range: -40°C to +85°C
- Relative Humidity: 5% to 95% (non-condensing)
Product Performance
- Efficient Data Interaction: Input and output delays are as low as 1ms and 2ms respectively, enabling quick response to on-site signals and control commands. This ensures the real-time performance of the control loop and meets the demand for rapid regulation of equipment actions in industrial production.
- Wide Compatibility: The input supports both NPN and PNP types, and can adapt to different types of on-site digital devices without additional configuration, improving the module’s applicability in multi-brand equipment integration scenarios.
- Strong Isolation Protection: The high-voltage isolation design between channels and between power supply and I/O can effectively block electromagnetic interference, avoid the impact of on-site high-voltage signals on the module and control system, and ensure stable operation of the equipment in complex industrial environments.
- Stable Output Capability: Each channel has a maximum output current of 0.5A, which can directly drive small actuators without intermediate amplification links, simplifying the control loop design and reducing system integration costs.
