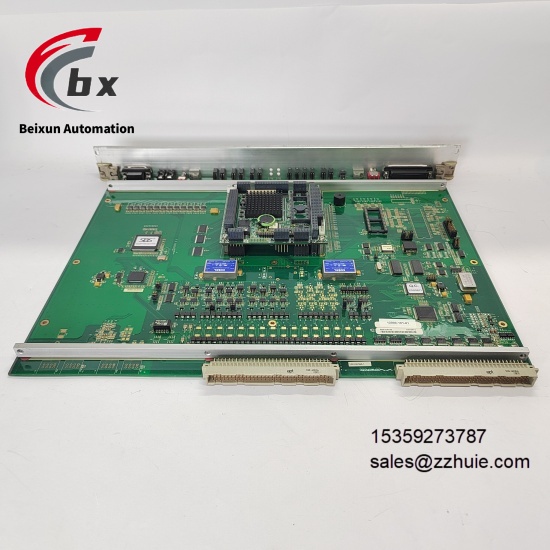

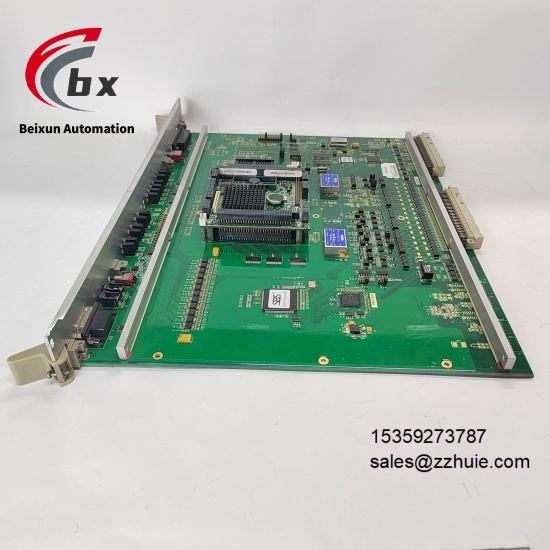

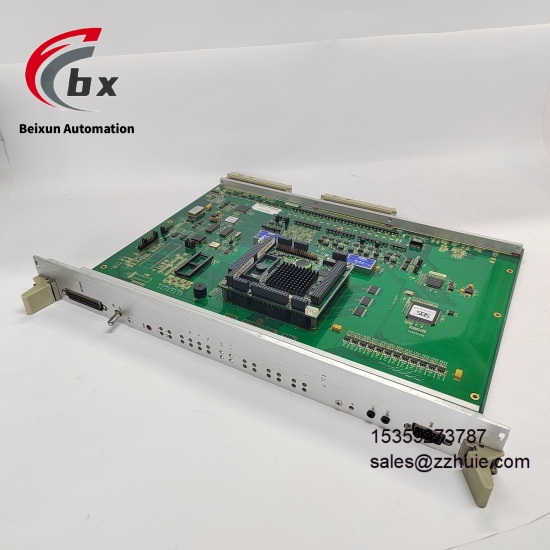

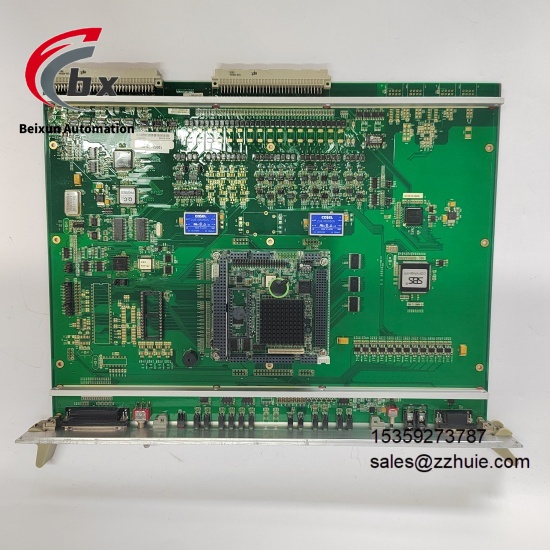

ALSTOM SDK-C0148 12003-101-01 SBS05M09B Traction control module

ALSTOM SDK-C0148 12003-101-01 SBS05M09B Traction control module

SPECIFIC PARAMETERS​

Brand ALSTOM​

Product Series SDK Series Industrial-grade Traction Control Modules​

Product Type High-power Traction Converter Control Module​

Model SDK-C0148 12003-101-01 SBS05M09B​

Channel Configuration 6-channel Analog Input (AI) 4-channel Analog Output (AO) 12-channel Digital Input (DI) 8-channel Digital Output (DO)​

Analog Input Supports 4-20mA/±10V Signals Resolution 16-bit Sampling Rate 200Hz/Channel​

Analog Output Supports 4-20mA/±10V Signals Resolution 16-bit Output Accuracy ±0.05% FS​

Digital Input Supports 24VDC Wet Contacts Response Time <0.5ms​

Digital Output Supports 24VDC/10A Digital Output Supports PWM Pulse Output (Up to 20kHz)​

Working Voltage 24VDC ±15% Redundant Power Input​

Working Temperature -40℃ to 85℃​

Storage Temperature -55℃ to 100℃​

Relative Humidity 5% to 95% Non-condensing (No Dew Formation)​

Protection Level IP65 (Module-level Protection)​

Installation Method Bolt-fixed Installation Standard Traction Converter Mounting Holes​

Size 180mm×150mm×75mm (Length×Width×Height)​

Weight 2.8kg​

Power Consumption Typical 15W Maximum 22W​

Certification Qualification CE UL EN 50121-3-2 IEC 61131-3 IEC 61508 (SIL 3)​

Compatible System ALSTOM MITRAC Traction Control Systems Rail Transit TCMS Systems Industrial DCS/SCADA Systems High-power Drive Platforms Traction Converter Control Systems​

Diagnostic Functions Channel Fault Self-diagnosis Overcurrent/Overvoltage/Overheating Alarm Motor Status Monitoring Communication Link Diagnosis Power Supply Abnormality Protection​

Anti-interference Level Complies with EN 50121-3-2/EN 61000-6-2 Rail Transit and Industrial EMC Standards​

Vibration and Shock Resistance Complies with IEC 61373 Class 3 Standard (Rail Transit Grade)​

MTBF (Mean Time Between Failures) ≥2,000,000 Hours​

Housing Material Aviation-grade Aluminum Alloy + Metal Shield Fully Sealed Structure​

Communication Interfaces Ethernet/IP Profibus DP Supports CANopen Protocol​

Programming Environment ALSTOM Control Suite Supports IEC 61131-3 Standard Programming Languages​

Clock Synchronization Supports IRIG-B Time Synchronization Synchronization Accuracy ±0.1ms​

Insulation Resistance ≥200MΩ (1000VDC)​

Channel Isolation 3000Vac Electrical Isolation Between Input/Output/Power Supply​

Control Algorithms Built-in Vector Control/Direct Torque Control (DTC) Algorithms​

PRODUCT PERFORMANCE​

Adopts 6AI+4AO+12DI+8DO multi-channel configuration, covering all-scenario signal requirements of traction control, capable of simultaneously processing sensor acquisition, actuator drive and fault feedback tasks, adapting to complex traction system control logic​

16-bit high resolution and ±0.05% FS output accuracy, combined with 200Hz high sampling rate, can accurately capture dynamic parameter changes of traction systems, ensuring precise regulation of motor speed and power output​

Built-in dual algorithms of vector control and Direct Torque Control (DTC), which can be flexibly switched according to traction working conditions, realizing efficient motor operation and fast dynamic response, reducing energy loss​

Industrial-grade wide-temperature adaptability, can work stably in the temperature range of -40℃ to 85℃ and 5%-95% non-condensing humidity environment, withstanding high temperature, alpine and high humidity working conditions of rail transit on-board​

IP65 fully sealed protection and aviation-grade aluminum alloy housing, dustproof, waterproof and corrosion-resistant, adapting to rail transit on-board vibration, dust and complex electromagnetic environment​

3000Vac high electrical isolation between input/output/power supply, effectively resisting strong electromagnetic interference and voltage surges in traction systems, ensuring the stability of signal transmission and control command execution​

Redundant power input design, supporting 24VDC±15% wide-range power supply, can resist on-board power supply fluctuations and single power supply failures, improving module operation reliability​

Compatible with multiple industrial buses including Ethernet/IP, Profibus DP and CANopen, flexibly accessing rail transit TCMS systems and industrial automation networks, supporting distributed control deployment​

Seamlessly compatible with ALSTOM MITRAC traction control system, enabling rapid development and debugging of control logic through Control Suite programming environment, simplifying system integration processes​

Complies with IEC 61508 SIL 3 functional safety level, built-in comprehensive overcurrent, overvoltage and overheating protection mechanisms, which can quickly respond to faults and trigger safe shutdown, ensuring the operational safety of traction systems​
