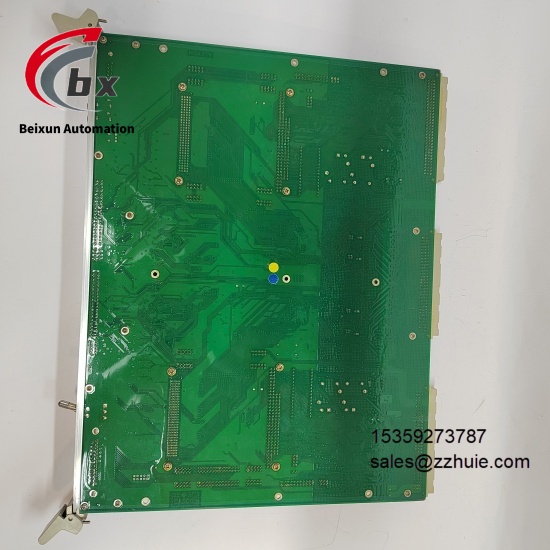

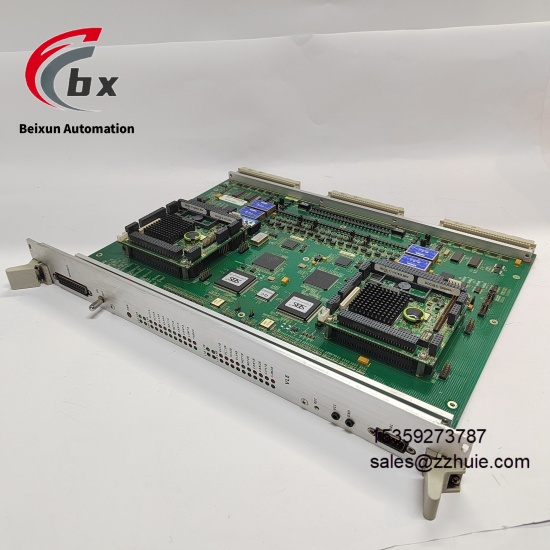

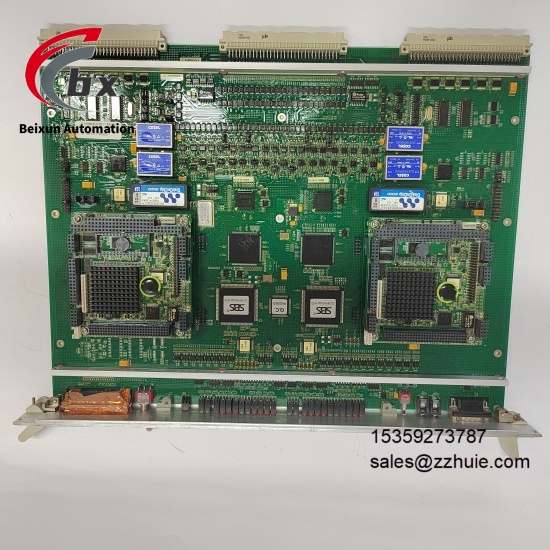

ALSTOM SDK-C0147 12004-101-00 SBS04M17C Signal Conversion and Interface Module

ALSTOM SDK-C0147 12004-101-00 SBS04M17C Signal Conversion and Interface Module

SPECIFIC PARAMETERS​

Brand ALSTOM​

Product Series SDK Series Industrial Signal Conversion and Interface Modules​

Product Type Industrial-grade Multi-channel Signal Conversion Interface Module​

Model SDK-C0147 12004-101-00 SBS04M17C​

Working Voltage 24VDC Adaptation Range: 20.4-26.4VDC​

Working Temperature -40℃ to 70℃​

Storage Temperature -55℃ to 85℃​

Relative Humidity 5% to 95% Non-condensing (No Dew Formation)​

Protection Level IP20 (Board-mounted Installation)​

Installation Method Standard 3U Rack Slot Installation/ DIN Rail Installation (Dual Adaptation)​

Signal Input 8-channel Analog Input (4-20mA/0-10V Dual Compatibility)​

Signal Output 8-channel Digital Output (NPN/PNP Switchable)​

Conversion Accuracy ±0.1% FS (Full Scale)​

Sampling Frequency Up to 100Hz​

Communication Interfaces Ethernet Port (TCP/IP) 2 RS485 Serial Ports (Modbus RTU)​

Data Transmission Rate Ethernet: 10/100Mbps Serial Port: Up to 19200bps​

Current Consumption Typical 180mA (24VDC) Maximum 250mA (24VDC)​

Size 100mm×160mm×48mm (Length×Width×Height)​

Weight 0.75kg​

Power Consumption Typical 4.3W Maximum 6.0W​

Certification Qualification CE UL IEC 61131-3 RoHS TÜV​

Compatible System ALSTOM ALSPA Control Systems Industrial DCS/SCADA Systems Rail Transit TCMS Systems Power Monitoring Equipment Industrial Control Terminals​

Diagnostic Functions Signal Abnormality Detection Module Self-diagnosis Communication Fault Feedback Power Supply Abnormality Alarm Output Short Circuit Protection​

Anti-interference Level Complies with EN 55032/EN 61000-6-2 Industrial EMC Standards​

Vibration and Shock Resistance Complies with IEC 61373 Class 1 Standard​

MTBF (Mean Time Between Failures) ≥1,000,000 Hours​

Housing Material Flame-retardant ABS Engineering Plastic Semi-sealed Structure​

Signal Processing Chip Industrial-grade High-precision AD/DA Conversion Chip​

Wiring Method Spring-type Terminal Blocks Anti-fall-off Design​

Insulation Resistance ≥100MΩ (500VDC)​

PRODUCT PERFORMANCE​

Adopts 8-channel analog input and 8-channel digital output configuration, supporting bidirectional conversion between 4-20mA/0-10V analog signals and NPN/PNP digital signals, adapting to multi-type industrial sensors and actuators, improving system interface compatibility​

±0.1% FS full-scale conversion accuracy and maximum 100Hz sampling frequency, which can accurately capture small signal changes, ensuring data conversion accuracy and real-time performance​

Compatible with Modbus RTU and TCP/IP communication protocols, enabling seamless interconnection with upper control systems and on-site equipment, realizing real-time data transmission and remote control​

Industrial-grade wide-temperature adaptability, can work stably in the temperature range of -40℃ to 70℃ and 5%-95% non-condensing humidity environment, adapting to extreme industrial and rail transit working conditions​

24VDC wide-range voltage input design, compatible with power supply fluctuations in industrial sites, built-in overvoltage/undervoltage protection to avoid module damage caused by abnormal voltage​

Dual installation methods for flexible adaptation, both standard 3U rack integration and independent DIN rail fixing are available, meeting the layout and installation needs of different control cabinets​

Built-in signal abnormality detection and output short circuit protection functions, combined with a comprehensive self-diagnostic mechanism, accurate fault location, greatly reducing operation and maintenance troubleshooting time​

Flame-retardant ABS semi-sealed housing design, dustproof, moisture-proof and anti-electromagnetic interference, adapting to harsh environments such as high dust and strong interference in industrial sites​

Spring-type terminal blocks with anti-fall-off design, convenient wiring and reliable contact, which can effectively avoid wiring loosening caused by vibration​

Seamlessly compatible with ALSTOM’s full range of control systems, no additional adaptation software required, simplifying system integration process and improving the overall stability of control links​
