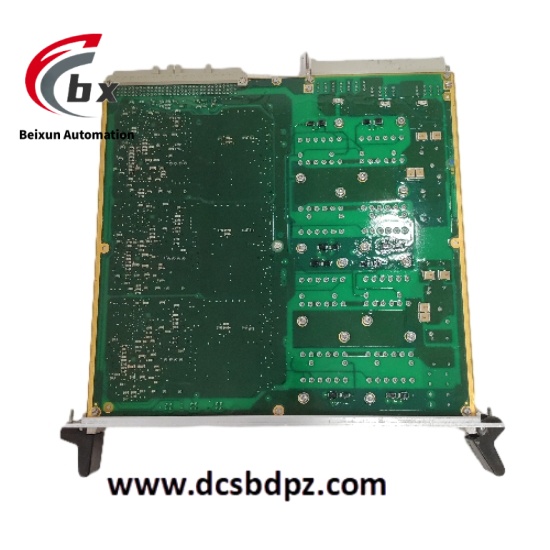

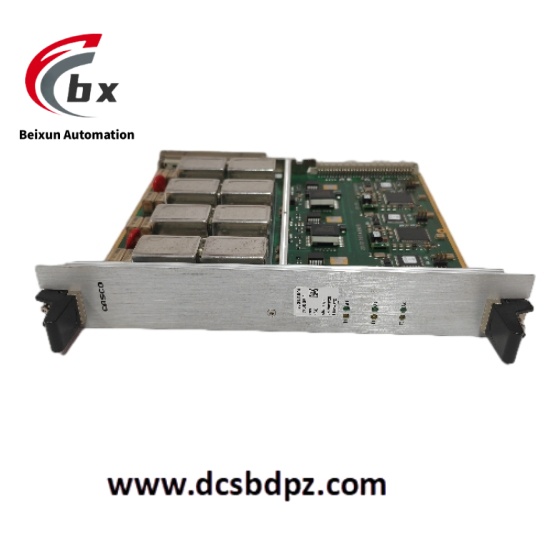

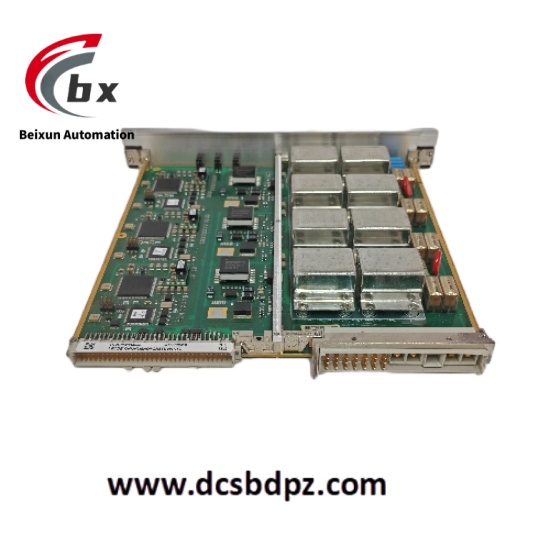

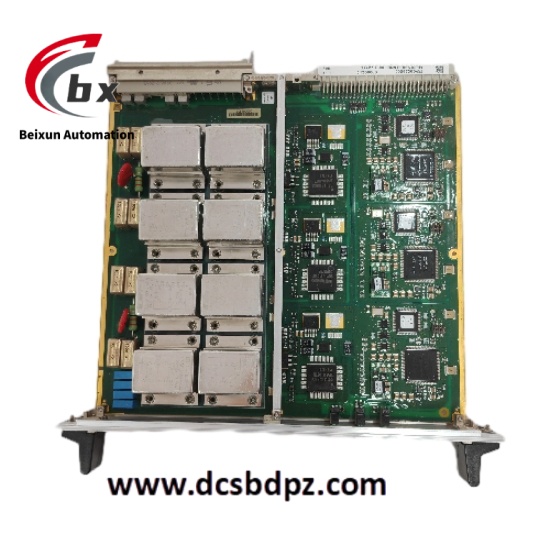

ALSTOM POS1846 TRVC062333000 CP00000310 High precision position detection module
ALSTOM POS1846 TRVC062333000 CP00000310 is a high-precision position detection module, mainly applied in industrial automation and rail transit control systems. Its core function is to collect position signals (such as displacement, angle, etc.) of equipment in real time, process the signals digitally, and then transmit them to the main control system. It provides data support for precise positioning and motion control of equipment, and is a key component for realizing closed-loop position control of automated equipment.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ALSTOM POS1846 TRVC062333000 CP00000310 High precision position detection module
Specific Parameters
- Power Supply Parameters
- Supply Voltage: 24V DC (±5%)
- Operating Current: Maximum 80mA
- Signal Acquisition Parameters
- Detection Type: Absolute position signal
- Signal Input Interface: RS422 differential interface
- Position Resolution: 0.01mm (linear detection)/0.001° (angle detection)
- Sampling Frequency: 1kHz
- Communication Parameters
- Communication Interface: EtherCAT industrial Ethernet
- Communication Rate: 100Mbps
- Data Transmission Delay: ≤1ms
- Environmental Parameters
- Operating Temperature Range: -25°C to +70°C
- Storage Temperature Range: -40°C to +85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Protection Class: IP20 (module body)
- Physical Parameters
- Dimensions: 120mm (length) × 80mm (width) × 35mm (height)
- Weight: Approximately 200g
Product Performance
- High-Precision Detection: With a position resolution of 0.01mm/0.001° and a sampling frequency of 1kHz, it can capture subtle position changes of equipment in real time, meeting the requirements of high-precision positioning scenarios and ensuring the accuracy of equipment motion control.
- High-Speed Data Transmission: It realizes 100Mbps communication through the EtherCAT interface, with a data transmission delay of ≤1ms, ensuring real-time feedback of position data to the control system and adapting to high dynamic response control scenarios.
- Strong Anti-Interference Ability: Adopting RS422 differential signal input and photoelectric isolation design, it can effectively resist electromagnetic interference in industrial environments, and still stably output position signals without data loss or distortion in complex electromagnetic scenarios.
- Wide Environmental Adaptability: It operates stably in the temperature range of -25°C to +70°C and wide humidity range, adapting to various environments such as rail transit outdoor equipment cabins and industrial workshops, without the need for additional temperature control protection.
