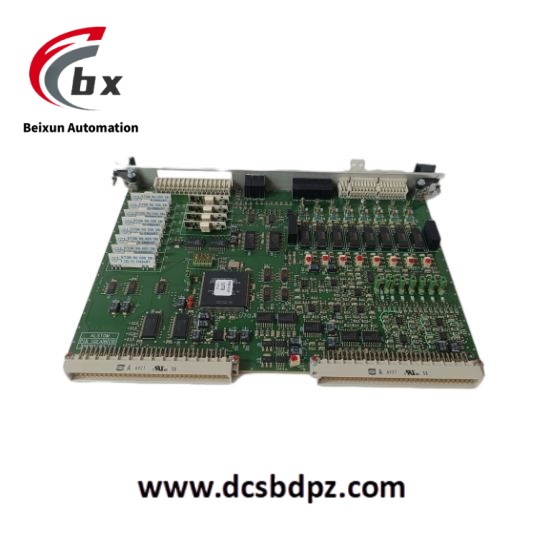

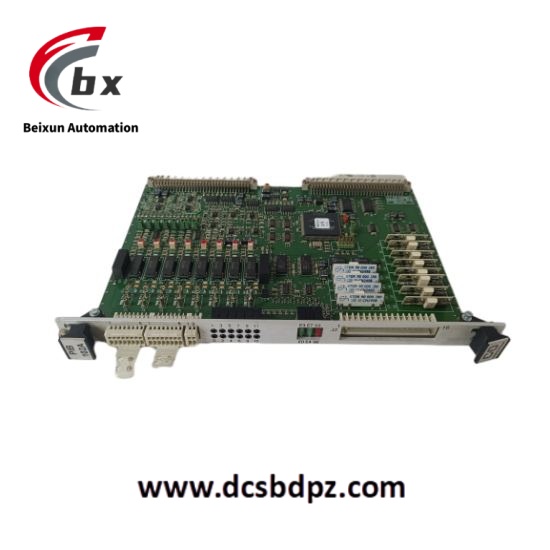

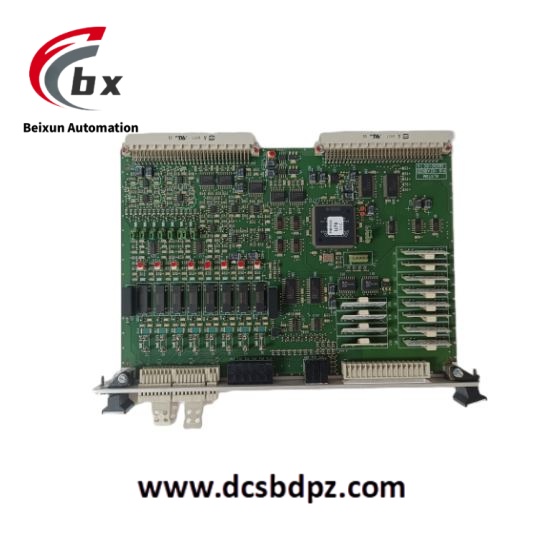

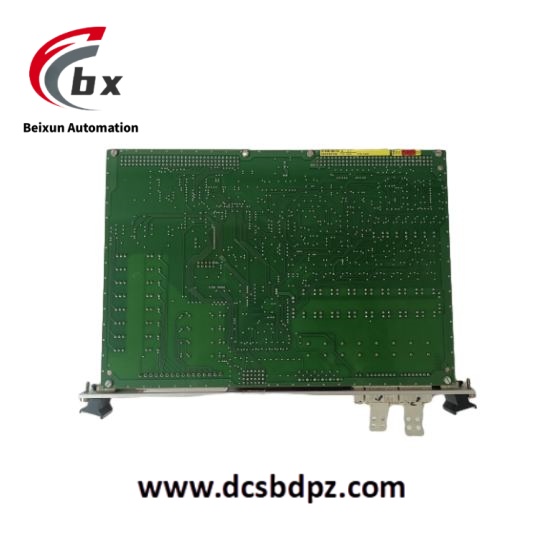

ALSTOM PIB102A 3BEB0180 Power interface board module
Main processor: PowerPC e500v2+FPGA coprocessor
Power input: 24V/110V DC (dual redundancy, fluctuation tolerance ± 25%)
Communication interface: MVB (train bus) × 2, RS-422 × 1 (diagnostic)
Protection level: IP20 (for vehicle installation, a protective box is required)
Data transmission rate: uplink 564 kbps, downlink 28.2 kbps
Working temperature range: -25 ° C to+70 ° C (compliant with EN 50155)
Seismic grade: IEC 61373 Cat. 1 (10Hz~200Hz/5Grms)
MTBF > 100, 000 hours (design lifespan of 15 years)
Weight: 3.2 kg (including installation bracket)
Product Performance
Data transmission: As a fiber optic interface board, it has high-speed and stable data transmission capabilities. Through the fiber optic interface, it can quickly exchange large amounts of data with other devices, reduce latency and interference during data transmission, and ensure the accuracy and integrity of data transmission.
Stability: Thanks to Alstom’s advanced manufacturing processes and strict quality control, this control board can maintain stable operation in various complex working environments and effectively resist harsh conditions such as high temperature, high humidity, and high electromagnetic interference.
Flame control: It has unique functions in application scenarios involving flame control. For example, in a specific program, when operating the “target flame selection” button, holding down the button can close the flame relay contact, allowing the burner to operate without bypassing the burner management system input. However, the operator needs to visually confirm the actual existence of the flame to ensure safety. When the button is released, the status of the flame relay will be determined based on the actual flame signal strength.
