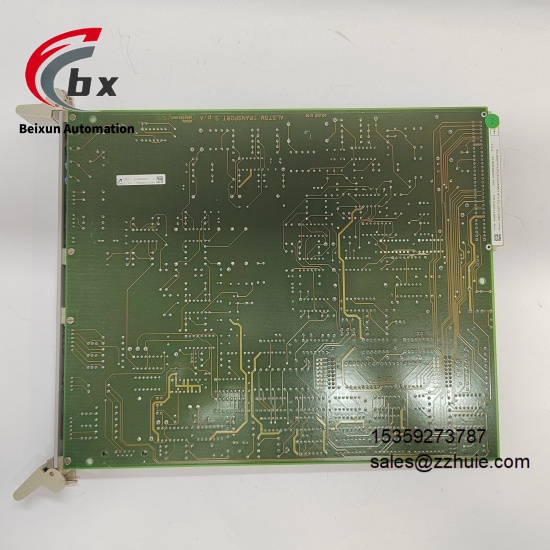

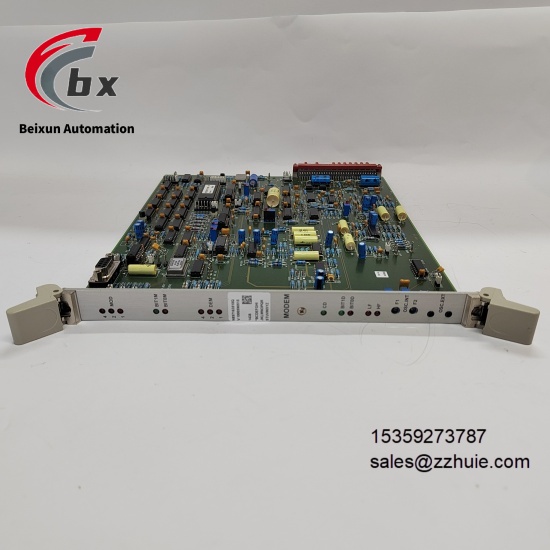

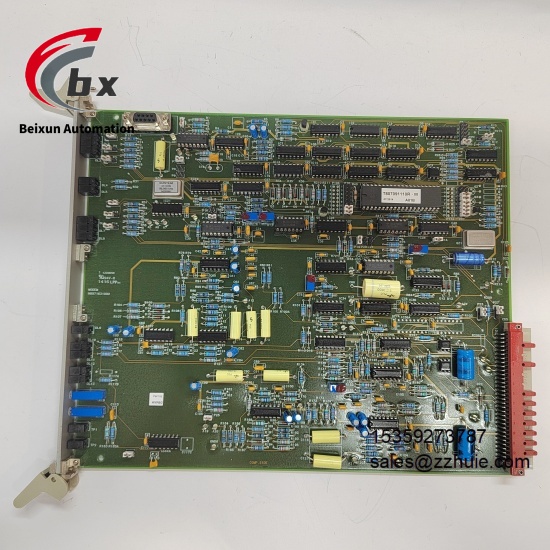

ALSTOM N897163510Q N897163050Q MODEM N897163100U Intelligent diagnostic module

ALSTOM N897163510Q N897163050Q MODEM N897163100U Intelligent diagnostic module

SPECIFIC PARAMETERS​

Brand ALSTOM​

Product Series Industrial Communication Series Modem Modules​

Product Type Industrial-grade Dual-mode Communication Modem Module​

Model N897163510Q N897163050Q MODEM N897163100U​

Working Voltage 220V AC Compatible with 190-240V AC Wide-range Input​

Working Temperature -20℃ to +60℃​

Storage Temperature -55℃ to +125℃​

Relative Humidity 5% to 95% Non-condensing (No Dew Formation)​

Protection Level IP20 (Board-mounted Installation)​

Installation Method Standard 3U Rack Slot Installation (Compatible with ALSTOM Standard Control Backplane)​

Communication Modes Wired Communication Wireless Communication Dual-mode Adaptation​

Frequency Range 30kHz​

Communication Protocols Modbus TCP/IP Modbus RTU DNP3 RS-232 Protocol CAN Protocol​

Interface Types RS-232 Interface Ethernet Port CAN Bus Interface​

Data Transmission Rate Supports High-speed Data Transmission Adapts to Industrial Remote Communication Needs​

Processor Speed 26MHz​

Memory Capacity 128-256MB DDR Memory​

Current Consumption Typical 500mA (220V AC) Maximum 800mA (220V AC)​

Size 160mm×233mm×57mm (Length×Width×Height, 3U Standard Size)​

Weight 1.5kg​

Power Consumption Typical 110W Maximum 176W​

Certification Qualification CE International Industrial Communication Standard Certification​

Compatible System ALSTOM Industrial Automation Systems Smart Grid Monitoring Platforms Third-party DCS/SCADA Systems Industrial Control Terminal Equipment​

Diagnostic Functions Communication Link Fault Detection Data Transmission Abnormality Alarm Module Self-diagnosis Power Supply Abnormality Protection Signal Strength Monitoring​

Anti-interference Level Complies with Relevant Industrial EMC Standards​

Vibration and Shock Resistance Complies with Industrial Equipment Vibration and Shock Resistance Standards​

MTBF (Mean Time Between Failures) ≥500,000 Hours​

PCB Process Ruggedized Material Multi-layer Wiring Anti-interference Design​

PRODUCT PERFORMANCE​

Supports wired and wireless dual-mode connection, adapting to complex wiring scenarios in industrial sites and ensuring redundant backup of data transmission links​

Compatible with multiple industrial communication protocols such as Modbus and DNP3, realizing seamless interconnection with equipment from different manufacturers and monitoring platforms​

Adopts 30kHz frequency range design to ensure stable long-distance data transmission and meet the needs of industrial remote monitoring​

Industrial-grade ruggedized architecture and anti-interference design can resist electromagnetic interference in industrial sites and ensure communication links are not affected by the environment​

Equipped with 26MHz processor and 128-256MB DDR memory configuration, featuring strong data processing and caching capabilities to support high-speed data sending and receiving​

Wide-range voltage input design, compatible with 190-240V AC power grid fluctuations, adapting to unstable power supply environments in industrial sites​

Built-in comprehensive diagnostic mechanism, real-time feedback of communication faults, data abnormalities and other states, facilitating rapid location and troubleshooting​

Compact 3U standard size design, easy to install and disassemble, can be quickly integrated into existing industrial control systems, simplifying the expansion process​

Vibration and shock resistance performance complies with industrial standards, enabling stable operation in vibrating environments such as mining machinery and rail transit supporting equipment​

High data transmission reliability, with retransmission mechanism and error correction function, ensuring accurate transmission of industrial control commands and monitoring data
