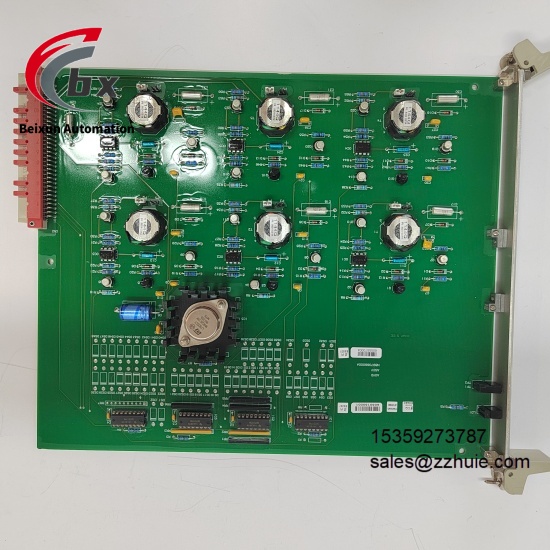

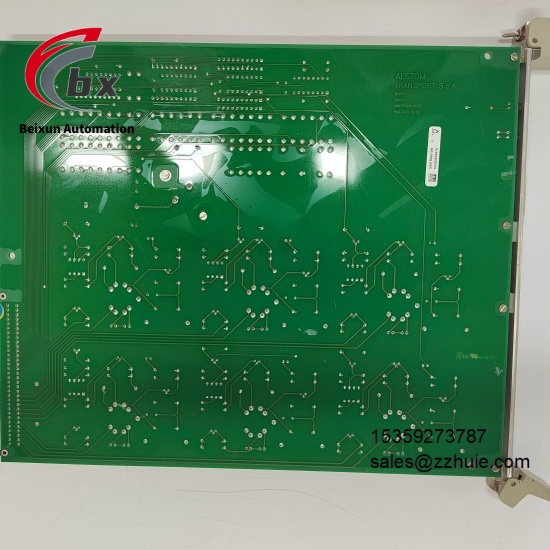

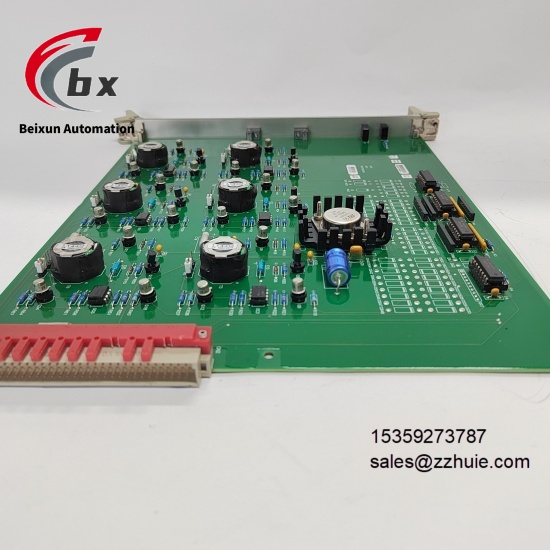

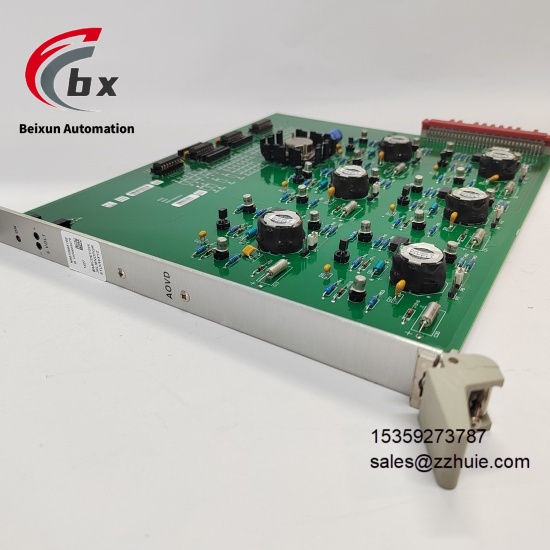

ALSTOM N897066510E N897066010M AOVD N897066000A Analog output module

ALSTOM N897066510E N897066010M AOVD N897066000A Analog output module

SPECIFIC PARAMETERS​

Brand ALSTOM​

Product Series ALSPA Series Analog Output Modules​

Product Type Industrial-grade High-precision Analog Output Module​

Model N897066510E N897066010M AOVD N897066000A​

Working Voltage 24VDC Wide Range Adaptation 19.2-28.8VDC​

Working Temperature -40℃ to 70℃​

Storage Temperature -55℃ to 85℃​

Relative Humidity 5% to 95% Non-condensing (No Dew Formation)​

Protection Level IP20 (Board-mounted Installation)​

Installation Method Standard 3U Rack Slot Installation (Compatible with ALSTOM Standard Control Backplane)​

Output Channels 8 Independent Analog Outputs (Voltage/Current Configurable)​

Output Types 0-10V DC Voltage Output 4-20mA DC Current Output​

Output Accuracy ±0.1% FS (Full Scale)​

Resolution 16-bit​

Output Load per Channel Maximum 1kΩ for Voltage Output Maximum 500Ω for Current Output​

Isolation Level 2500Vdc Electrical Isolation Between Channels/Channels and Backplane​

Communication Interfaces 1 Ethernet Port (TCP/IP/PROFINET) 2 RS485 Serial Ports (Modbus RTU)​

Current Consumption Typical 180mA (24VDC) Maximum 250mA (24VDC)​

Size 160mm×233mm×57mm (Length×Width×Height, 3U Standard Size)​

Weight 1.2kg​

Power Consumption Typical 4.3W Maximum 6.0W​

Certification Qualification CE UL IEC 61131-3 RoHS TÜV​

Compatible System ALSTOM ALSPA Control Systems Industrial DCS/SCADA Systems Rail Transit TCMS Systems Third-party Industrial Automation Platforms​

Diagnostic Functions Channel Short Circuit Protection Overload Protection Wire Breakage Detection Module Self-diagnosis Output Over-range Alarm Fault Status Feedback​

Anti-interference Level Complies with EN 55032/EN 61000-6-2/EN 61000-6-4 Industrial EMC Standards​

Vibration and Shock Resistance Complies with IEC 61373 Class 1 Standard​

MTBF (Mean Time Between Failures) ≥600,000 Hours​

PCB Process Ruggedized FR-4 Material Multi-layer Wiring Independent Channel Shielding Design​

PRODUCT PERFORMANCE​

Adopts 16-bit high resolution and ±0.1% FS full-scale accuracy design, ensuring precise and stable conversion from digital to analog signals, and guaranteeing the control precision of actuators​

8 independent output channels support flexible configuration of voltage/current modes, adapting to various industrial actuators such as solenoid valves, regulating valves and frequency converters​

2500Vdc high electrical isolation between channels effectively avoids signal crosstalk and electromagnetic interference, ensuring the integrity of signal transmission in complex industrial environments​

Industrial-grade wide-temperature adaptability, can work stably for a long time in the temperature range of -40℃ to 70℃ and 5%-95% non-condensing humidity environment, adapting to extreme working conditions​

Integrates short circuit, overload and wire breakage triple protection mechanisms, quickly cutting off output channels under abnormal working conditions to protect the safety of the module and downstream equipment​

Compatible with industrial standard communication protocols such as PROFINET and Modbus, realizing real-time data interaction with upper control systems, and output status and fault information can be monitored remotely​

Modular plug-in structure design, easy to install and disassemble, supporting online maintenance and replacement, reducing system downtime and improving equipment operation and maintenance efficiency​

Seamlessly compatible with ALSTOM ALSPA series control systems, no additional adaptation software required, simplifying system integration process and ensuring low delay of control command response​

Independent channel shielding and anti-electromagnetic interference optimization design, enabling stable operation around frequency converters and high-power equipment, not affected by industrial on-site interference​

Equipped with LED status indicators, real-time feedback of module operation status and channel working conditions, simplifying on-site debugging and fault troubleshooting processes​
