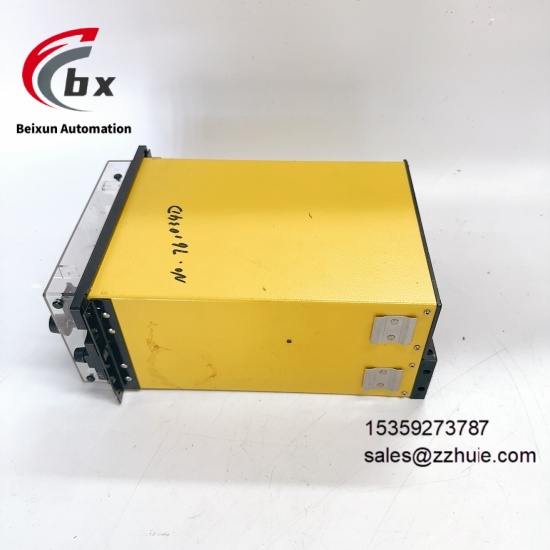

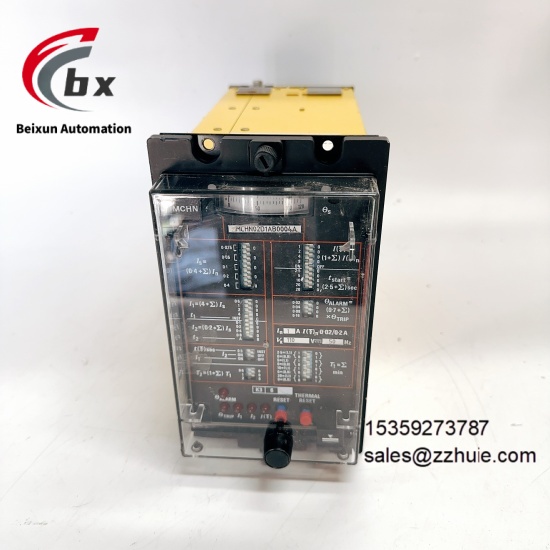

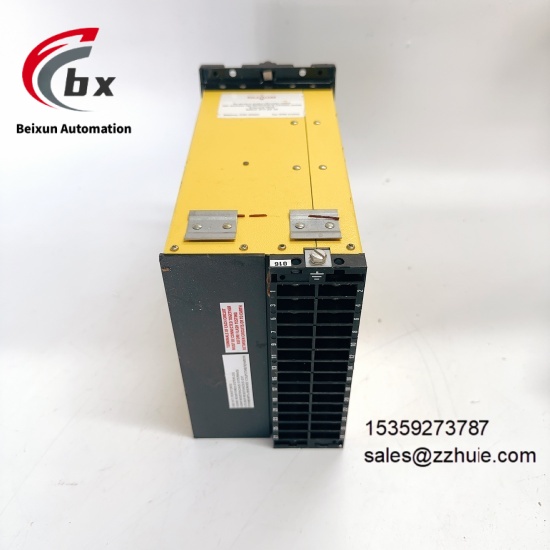

ALSTOM MCHN02D1AB0004A Automation control module
Specific Parameters
Brand ALSTOM (ALSTOM, GEC ALSTOM Series)
Product Series MCHN Series Industrial Automation Control Series
Product Type Industrial-Grade Automation Control Module, Industrial Automation System Spare Part Module
Model ALSTOM MCHN02D1AB0004A
Country of Origin France
Compatible Devices MICOM Series Relay Protection Devices, PLC/DCS Systems, Industrial Automation Control Terminals
Operating Power Supply 24VDC
Operating Current 1.5A
Rated Power Consumption Less Than 7.5W
Input/Output Signals Supports Mixed Processing of Analog Signals (4-20mA) and Digital Signals
Communication Protocols Modbus, Ethernet/IP, RS485 Communication Protocol
Communication Interfaces RS485 Serial Interface, Ethernet Port
Control Functions Precise Control of Industrial Equipment, Logic Control, Signal Transfer
Operating Temperature Range -40℃ to +70℃
Storage Temperature Range -30℃ to +80℃
Relative Humidity 5% to 95%, Non-Condensing
Protection Level IP65
Physical Dimensions 120mm×80mm×40mm (Length×Width×Height)
Physical Weight Approximately 0.5kg
Mounting Method Standard Rail Mounting, Built-in Slot Mounting for Industrial Control Equipment
Special Functions Fault Diagnosis, LED Status Indication, Network Communication, Signal Transfer
Certification Standards IEC 60255, CE, UL, RoHS
Warranty Period 12 Months
Product Performance
Compatible with MICOM series relay protection devices, PLC/DCS systems and various industrial automation control terminals, it adopts 24VDC stable power supply, with an operating current of 1.5A and a rated power consumption of less than 7.5W. It is energy-saving and efficient, can adapt to the 24-hour uninterrupted operation needs of various industrial scenarios, has high operational stability, and can also be used as a spare part for industrial automation systems to quickly complete the replacement of faulty modules.
It mainly has precise control and logic control functions for industrial equipment, supports mixed processing of analog signals (4-20mA) and digital signals, can accurately collect various operating parameters on the industrial site, realize precise control such as equipment start-stop and operation regulation, and provide core support for the efficient operation of industrial automation production lines.
It also has network communication and signal transfer functions, equipped with RS485 serial interface and Ethernet port, supports mainstream industrial communication protocols such as Modbus, Ethernet/IP and RS485, can be seamlessly connected to industrial automation systems, monitoring platforms and various control terminals, and realizes real-time transmission of fault signals, operating status and control data.
Integrated with complete fault diagnosis and LED status indication functions, it can real-time monitor the module operation status, communication links and signal transmission quality, accurately identify fault points and trigger alarms, clearly display operation and fault status through LED lights, facilitating staff to quickly troubleshoot faults and carry out tests, and improving equipment operation and maintenance efficiency.
With a protection level of IP65, it has excellent dustproof and waterproof performance, can be directly applied to outdoor, industrial production lines and dusty, humid harsh industrial sites without additional protective measures, effectively protecting internal components, extending product service life, and adapting to the long-term storage and emergency use needs of spare parts.
The operating temperature covers -40℃ to +70℃, and the storage temperature range is -30℃ to +80℃, with extremely strong environmental adaptability. It can operate stably in extreme industrial environments such as alpine, high temperature and strong electromagnetic interference without performance degradation, meeting the operation needs of complex industrial scenarios.
Adopting standardized modular design, supporting standard rail and built-in slot mounting for industrial control equipment, it is easy to install, can be directly integrated into existing industrial automation systems without additional adaptation and debugging, supports multi-module collaborative work, can be extended to realize distributed control, consistent with ALSTOM’s modular design concept.
Adopting industrial-grade reinforced packaging and anti-electromagnetic interference circuit design, it has outstanding anti-interference ability, can effectively resist strong electromagnetic radiation interference on the industrial site, ensure accurate signal transmission and reliable control actions, no malfunction hidden dangers, and guarantee industrial production safety.
Complies with international certification standards such as IEC 60255, CE, UL and RoHS, the product quality and safety performance meet the specifications of the global industrial automation control field, the material is environmentally friendly, adapts to various harsh industrial safety and environmental protection standards, and can be used globally.
