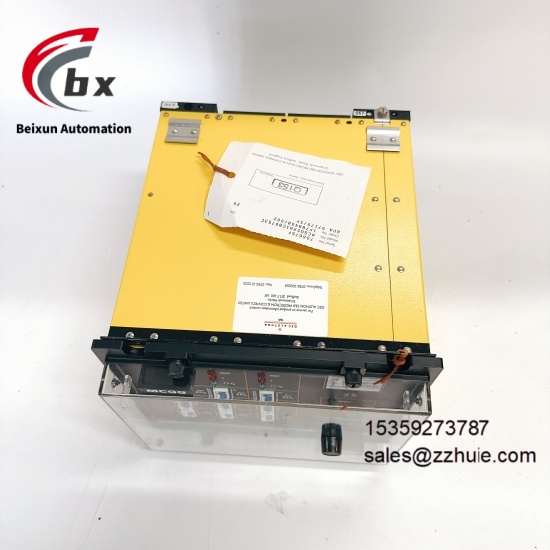

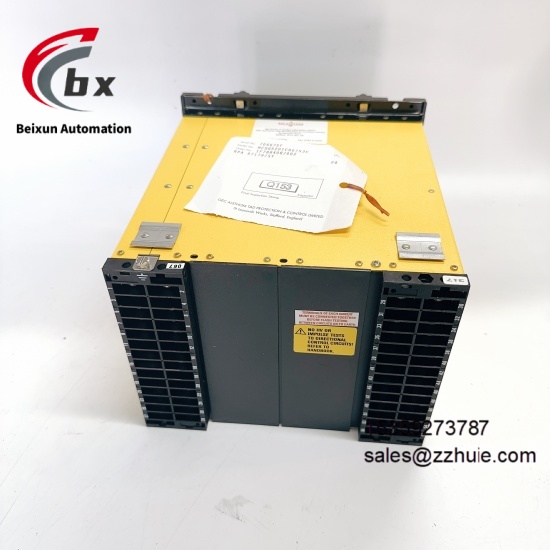

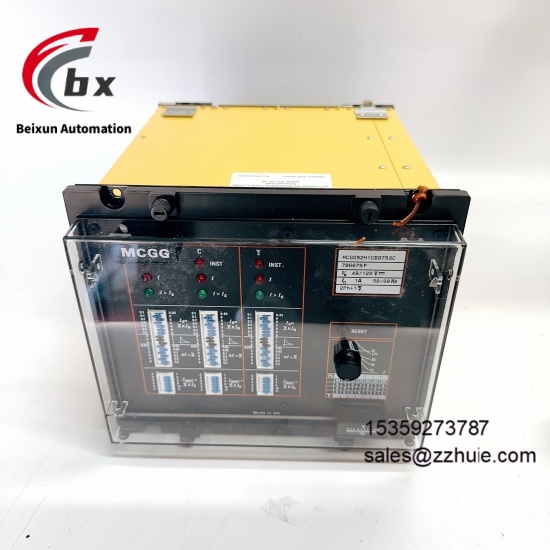

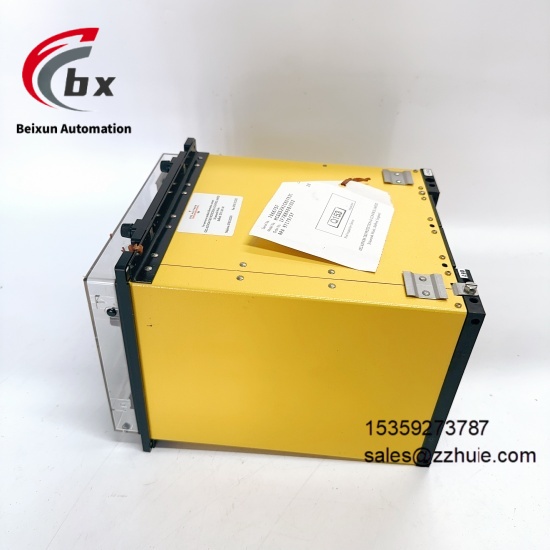

ALSTOM MCGG52H1CB0753C Medium voltage AC motor control module
Specific Parameters
Brand ALSTOM (ALSTOM, GEC ALSTOM Series)
Product Series MCGG Series Medium-Voltage Motor Control and Protection Series
Product Type Industrial-Grade Medium-Voltage AC Motor Control Module, Overcurrent Protection Relay, PLC/DCS System Spare Part Module
Model ALSTOM MCGG52H1CB0753C
Country of Origin USA
Compatible Devices Medium-Voltage AC Motor Control Systems, PLC/DCS Systems, MICOM Series Relay Protection Devices
Operating Power Supply Dual-mode Compatible: 24VDC / 110–250VAC
Rated Power Consumption Less Than 7W
Input/Output Signals Supports Analog Signals (4-20mA) and Digital Signals
Communication Protocols Modbus RTU/TCP, RS485, CAN Communication Protocol
Communication Interfaces RS485 Serial Interface, Ethernet Port, CAN Bus Interface
Protection Type Single-Phase Overcurrent Protection, with Instantaneous Protection Element
Control Range Start-Stop Control and Operation Regulation of Medium-Voltage AC Motors (Thousands of Volts Range)
Operating Temperature Range -40℃ to +70℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, Non-Condensing
Protection Level IP65
Physical Dimensions 140mm×90mm×22mm (Length×Width×Height)
Physical Weight Approximately 0.19kg
Mounting Method Standard Rail Mounting, Built-in Slot Mounting for PLC/DCS Equipment
Special Functions Supports Instantaneous Protection Action, LED Status Indication, Fault Diagnosis, Non-Volatile Storage, Terminal Signal Connection
Certification Standards IEC 60255, CE, UL
Warranty Period 12 Months
Product Performance
Compatible with medium-voltage AC motor control systems, PLC/DCS systems and MICOM series relay protection devices, adopting dual-mode compatible power supply of 24VDC/110–250VAC, with a rated power consumption of less than 7W, it is energy-saving and efficient, can adapt to the 24-hour uninterrupted operation needs of medium-voltage industrial scenarios, has high operational stability, and can also be used as a PLC/DCS system spare part to quickly complete the replacement of faulty modules.
It is mainly compatible with medium-voltage AC motors (thousands of volts range), can accurately realize the start-stop control and operation regulation of medium-voltage motors, and is equipped with single-phase overcurrent protection function and instantaneous protection element, complying with IEC 60255 standards. It can quickly detect circuit overcurrent faults and trigger protection actions, cut off fault circuits, and avoid damage to medium-voltage motors and related equipment.
It also has the signal transfer function of PLC/DCS systems. Its normally open and normally closed contacts can be used infinitely during programming, clearly optimizing the logical structure of the program without directly driving external loads. It also has terminal signal connection function, which can realize efficient signal interaction between medium-voltage motor control systems and PLC/DCS systems.
Equipped with RS485 serial interface, Ethernet port and CAN bus interface, it supports mainstream industrial communication protocols such as Modbus RTU/TCP, RS485 and CAN, and can be seamlessly connected to medium-voltage industrial automation systems, PLC/DCS systems and monitoring platforms to realize real-time transmission of fault signals, motor operating status and equipment parameters.
Supports the input and output processing of analog signals (4-20mA) and digital signals, has high-precision signal conditioning functions, can accurately collect medium-voltage motor operating parameters and circuit status data, and provide reliable data support for motor control, protection actions, signal transmission and system optimization.
With a protection level of IP65, it has excellent dustproof and waterproof performance, can be directly applied to outdoor, medium-voltage substations and dusty, humid medium-voltage industrial sites without additional protective measures, effectively protecting internal components, extending product service life, and adapting to the long-term storage and emergency use needs of spare parts.
The operating temperature covers -40℃ to +70℃, and the storage temperature range is -40℃ to +85℃, with extremely strong environmental adaptability. It can operate stably in extreme medium-voltage industrial environments such as alpine, high temperature and strong electromagnetic interference without performance degradation, meeting the harsh scenario needs of medium-voltage motor control and spare part replacement.
Integrated with complete fault diagnosis and LED status indication functions, it can real-time monitor the module operation status, communication links and medium-voltage motor operating conditions, clearly display delayed actions and instantaneous actions through LED lights, facilitating staff to quickly troubleshoot faults and carry out tests, and improving equipment operation and maintenance efficiency.
Built-in non-volatile storage function, which can save the LED indication status of delayed and instantaneous actions and motor control parameters, without losing key information even if the power is interrupted, and can reproduce the instantaneous fault status after the power is restored, providing support for fault traceability and system recovery.
Adopting standardized modular design, supporting standard rail and built-in slot mounting for PLC/DCS equipment, it is easy to install, can be directly integrated into existing medium-voltage motor control systems and PLC/DCS systems without additional adaptation and debugging, and can be quickly replaced as a spare part, consistent with ALSTOM’s modular design concept.
Complies with international certification standards such as IEC 60255, CE and UL, the product quality and safety performance meet the specifications of the global medium-voltage motor control and PLC/DCS spare part field, with high protection accuracy and reliable operation, no malfunction hidden dangers, and suitable for use in key medium-voltage industrial scenarios and spare part reserves.
