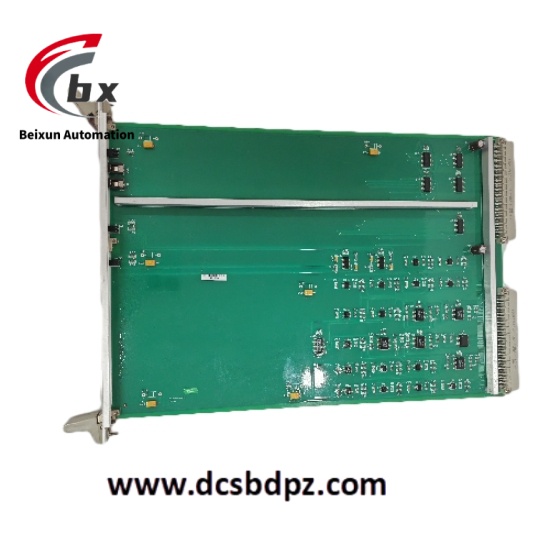

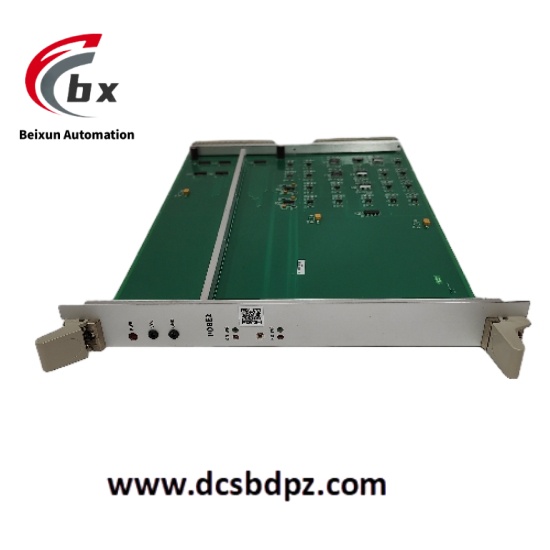

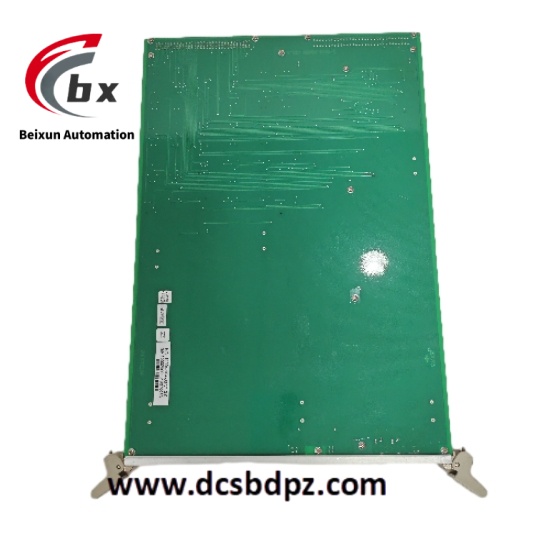

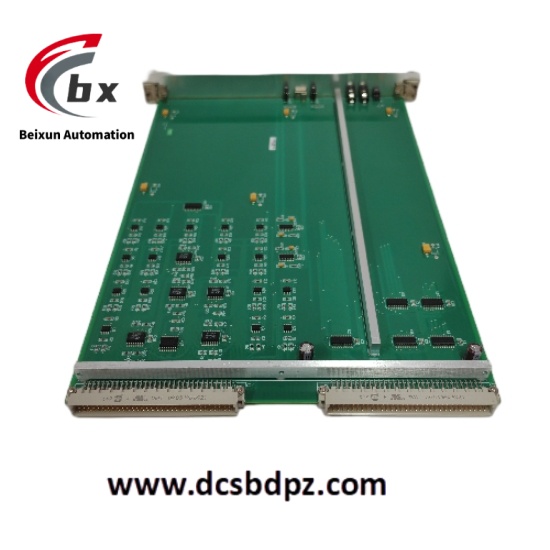

ALSTOM I/OBE2 12004-104-00 V1.0.0 I/O expansion module
ALSTOM I/OBE2 12004-104-00 V1.0.0 is an industrial-grade I/O expansion module, mainly used for on-site signal acquisition and control command output in industrial automation control systems. This module can seamlessly interface with ALSTOM series main controllers, realizing bidirectional transmission of digital and analog signals through standardized interfaces. It undertakes the signal transfer task between on-site equipment and control systems, providing hardware support for real-time monitoring and precise control of industrial production processes.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ALSTOM I/OBE2 12004-104-00 V1.0.0 I/O expansion module
Specific Parameters
- Power Supply Parameters
- Supply Voltage: 24V DC (±10%)
- Current Consumption: Maximum 0.8A (0.3A at no load)
- Digital I/O Channels
- Digital Input Channels: 16
- Digital Output Channels: 16
- Input Signal Voltage: 0-30V DC (high level ≥15V, low level ≤5V)
- Output Signal Type: Transistor output (NPN)
- Output Current: Maximum 2A per channel (continuous), 5A peak (100ms)
- Analog I/O Channels
- Analog Input Channels: 4
- Analog Output Channels: 4
- Input Signal Type: Voltage (0-10V DC), Current (4-20mA)
- Output Signal Type: Voltage (0-10V DC), Current (4-20mA)
- Input Accuracy: ±0.1% of full scale
- Output Accuracy: ±0.2% of full scale
- Isolation Characteristics
- Inter-channel Isolation: Available, isolation voltage 2500Vrms
- Power Supply and I/O Isolation: Available, isolation voltage 2500Vrms
- Environmental Parameters
- Operating Temperature Range: -20°C to +60°C
- Storage Temperature Range: -40°C to +85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Physical Parameters
- Dimensions: 180mm (length) × 120mm (width) × 45mm (height)
- Weight: Approximately 0.8kg
Product Performance
- High Integration: Integrates 16 digital I/O channels and 4 analog I/O channels. A single module can meet multi-type signal processing needs, reducing the number of system hardware configurations and lowering control cabinet space occupation.
- Stable Signal Transmission: Analog signal accuracy reaches ±0.1% of full scale, and digital output response time is ≤1ms, ensuring timeliness and accuracy of signal acquisition and command output, adapting to high-precision control scenarios.
- Strong Anti-interference Ability: Full-channel electrical isolation design, combined with anti-surge and anti-electromagnetic interference circuits, can resist high-frequency noise and voltage fluctuations in industrial sites, maintaining stable operation in complex electromagnetic environments.
- Wide Compatibility: Supports connection with ALSTOM mainstream controllers and third-party standard industrial control systems, compatible with common communication protocols such as Modbus RTU, adapting to multi-brand system integration needs.
