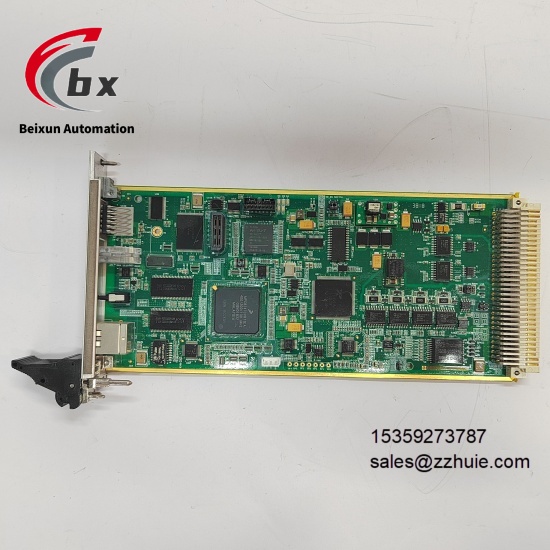

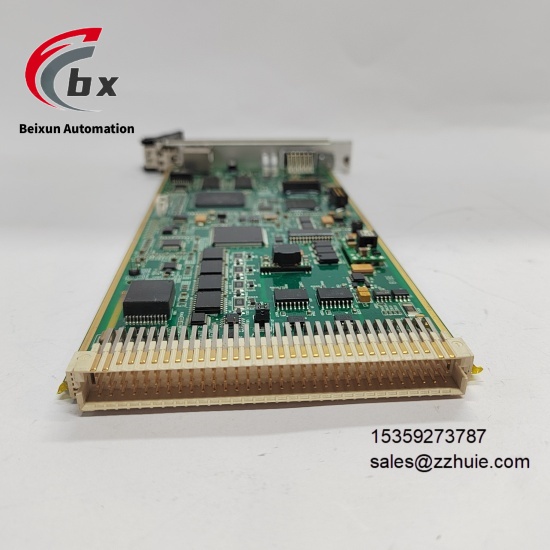

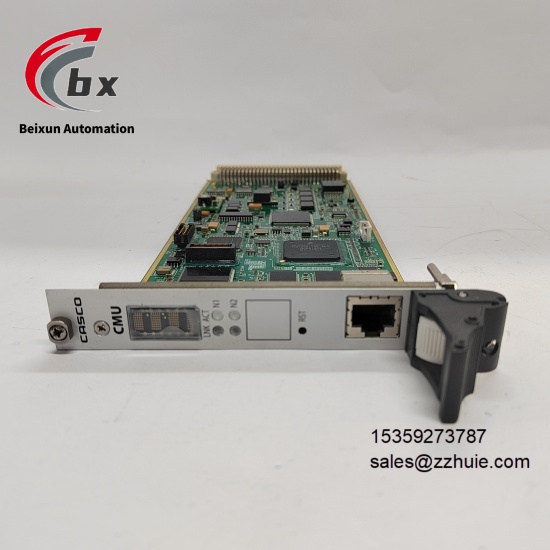

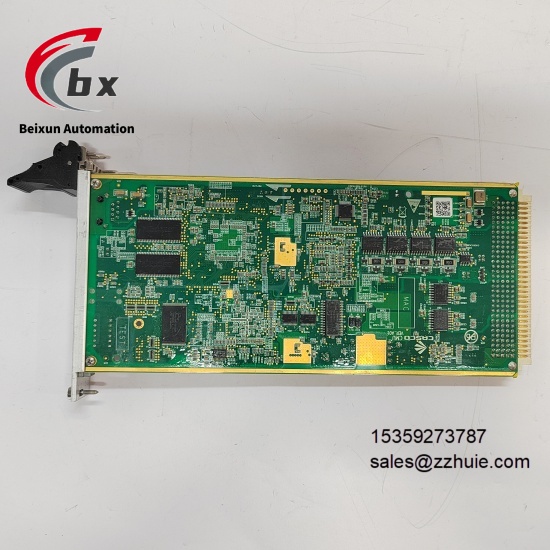

ALSTOM CMU 42015-115-00 Core control module

ALSTOM CMU 42015-115-00 Core control module

SPECIFIC PARAMETERS​

Brand ALSTOM​

Product Series CMU Series Industrial Control Modules​

Product Type Industrial Automation Core Control Module​

Model CMU 42015-115-00​

Working Voltage 220VAC (Wide Range Adaptation 200-240VAC)​

Working Temperature -40℃ to 70℃​

Storage Temperature -55℃ to 85℃​

Relative Humidity 5% to 95% Non-condensing (No Dew Formation)​

Protection Level IP20 (Rack-mounted Installation)​

Installation Method Standard 3U Rack Installation (Compatible with Industrial Control Cabinets)​

Output Frequency 50kHz​

Communication Interfaces Supports Industrial Standard Communication Protocols (Compatible with Modbus/Ethernet Protocols)​

Current Consumption Typical 200mA (220VAC) Maximum 250mA (220VAC)​

Size 160mm×233mm×57mm (Length×Width×Height, 3U Standard Size)​

Weight 1.3kg​

Power Consumption Typical 45VA Maximum 55VA​

Certification Qualification Original Factory Certified Product Complies with Industrial Automation Industry Standards​

Compatible System Industrial DCS/SCADA Systems Automation Control Platforms Various Industrial Control Terminals​

Diagnostic Functions Module Self-diagnosis Fault Status Feedback Power Supply Abnormality Protection Data Transmission Verification​

Anti-interference Level Complies with EN 55032/EN 61000-6-2 Industrial EMC Standards​

MTBF (Mean Time Between Failures) ≥500,000 Hours​

PRODUCT PERFORMANCE​

Adopts original factory precision design and high-reliability component selection, with rugged and durable structure, capable of maintaining stable operation in harsh industrial environments and meeting continuous operation needs​

220VAC wide voltage adaptation and 50kHz output frequency ensure precise transmission of control signals and efficient response of executive mechanisms, improving system control precision​

Supports industrial standard communication protocols, enabling seamless interconnection with upper control systems and peripheral modules, with low data interaction delay, realizing multi-device collaborative control​

Industrial-grade wide-temperature operating range and high humidity adaptability, can work stably for a long time in the environment of -40℃ to 70℃ and 5%-95% non-condensing, not affected by extreme climates​

Built-in comprehensive self-diagnostic and protection mechanisms, real-time monitoring of module operation status, power supply abnormalities, data transmission faults, etc. can be quickly responded to and fed back, reducing system operation risks​

Modular design concept, easy to install and disassemble, can be seamlessly integrated into existing industrial control cabinets, simplifying system deployment and later maintenance processes​

Equipped with advanced control algorithms, capable of realizing complex logic operations and precise control, adapting to diverse control needs of power generation, manufacturing and other industries​

User-friendly design, with complete supporting technical documentation, simple installation and commissioning process, reducing operation threshold​
