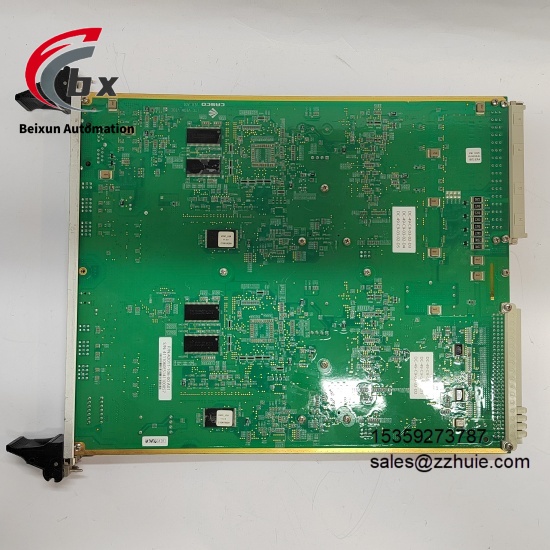

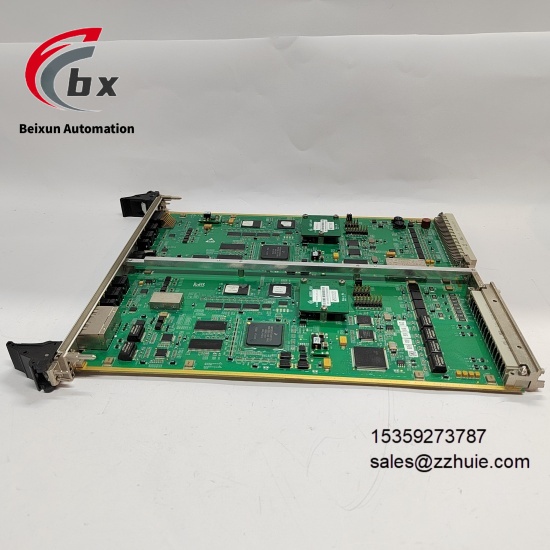

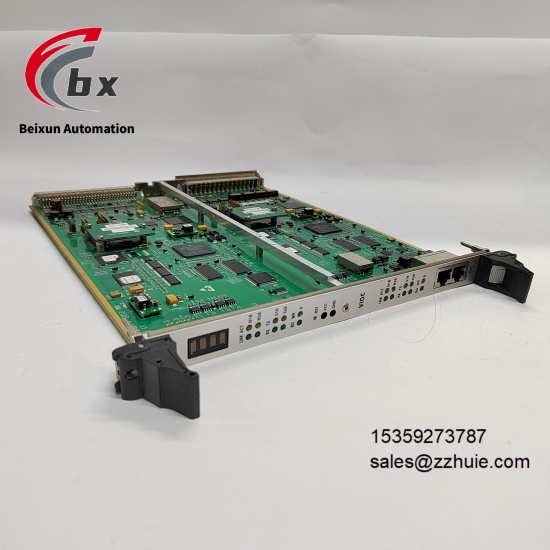

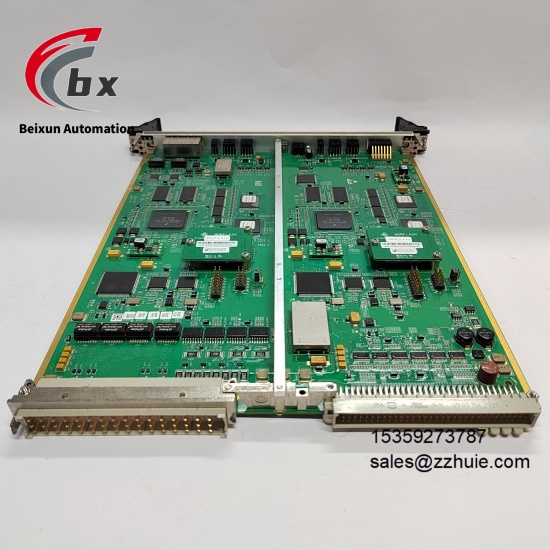

ALSTOM 42011-106-00 A01 ITC_VIOM_VIOC VER.A0 Multi functional interface control module

ALSTOM 42011-106-00 A01 ITC_VIOM_VIOC VER.A0 Multi functional interface control module

SPECIFIC PARAMETERS​

Brand ALSTOM​

Product Series ITC_VIOM_VIOC Series Interface Control Modules​

Product Type Special Interface Control Module for Industrial Automation and Rail Transit​

Model 42011-106-00 A01 ITC_VIOM_VIOC VER.A0​

Working Voltage 220VAC Wide Range Adaptation 200-240VAC​

Working Temperature -40℃ to 70℃​

Storage Temperature -55℃ to 85℃​

Relative Humidity 5% to 95% Non-condensing (No Dew Formation)​

Protection Level IP20 (Board-mounted Installation)​

Installation Method Standard Rack Slot Installation (Compatible with Mark VI System Backplane)​

Operating Frequency 50kHz​

Communication Interfaces 1 Ethernet Port (TCP/IP) 2 RS485 Serial Ports (Modbus RTU) 1 CAN Bus Interface​

Signal Types 8 Digital Inputs/Outputs 4 Analog Inputs (4-20mA) 2 Analog Outputs (0-10V)​

Current Consumption Typical 150mA (220VAC) Maximum 200mA (220VAC)​

Size 160mm×233mm×57mm (Length×Width×Height, 3U Standard Size)​

Weight 1.1kg​

Power Consumption Typical 33VA Maximum 45VA​

Certification Qualification CE Complies with IEC 61131-3 Standard​

Compatible System ALSTOM Mark VI Control System Rail Transit TCMS System Industrial Automation DCS System Power Control Equipment​

Diagnostic Function Module Self-diagnosis Signal Short Circuit Detection Communication Fault Alarm Power Supply Abnormality Protection​

Anti-interference Level Complies with EN 55032/EN 61000-6-2 Industrial EMC Standards​

MTBF (Mean Time Between Failures) ≥500,000 Hours​

PRODUCT PERFORMANCE​

Adopts ruggedized hardware design and high-reliability electronic component selection, with extremely strong vibration and shock resistance, adapting to harsh operating environments of rail transit and industrial sites​

Seamlessly compatible with ALSTOM Mark VI control system and rail transit TCMS system, enabling rapid integration without additional adaptation modules, simplifying system deployment process​

Supports multi-protocol communication and multi-type signal interaction, can flexibly connect with sensors, actuators and upper control systems, meeting signal conversion and data transmission needs of complex control scenarios​

50kHz operating frequency ensures real-time data processing and fast response of control commands, with low signal transmission delay, improving overall system control precision and operational efficiency​

Industrial-grade wide-temperature operating range and high humidity adaptability, can work stably for a long time in the environment of -40℃ to 70℃ and 5%-95% non-condensing, not affected by extreme climates​

Built-in comprehensive self-diagnostic and fault protection mechanisms, real-time monitoring of module operation status, signal links and power supply stability, fault information is accurately fed back to facilitate rapid troubleshooting and maintenance​

Complies with IEC 61131-3 industrial control standard and CE certification requirements, product quality and performance have been strictly verified to ensure long-term operational reliability and safety​

Compact 3U standard size design, compatible with standard industrial rack installation, occupying small space, can be flexibly integrated into existing control cabinets, improving installation and layout flexibility​
