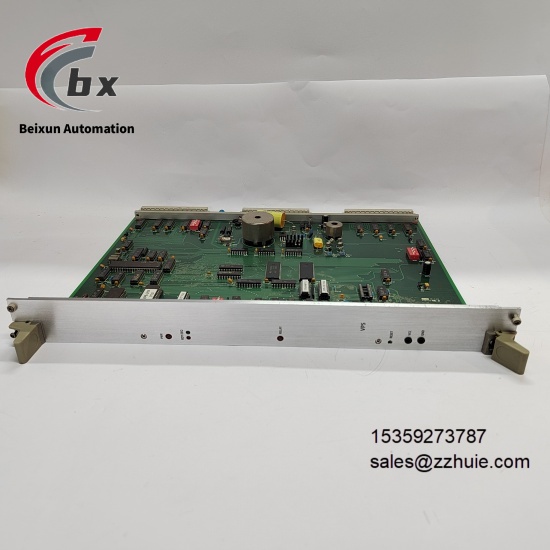

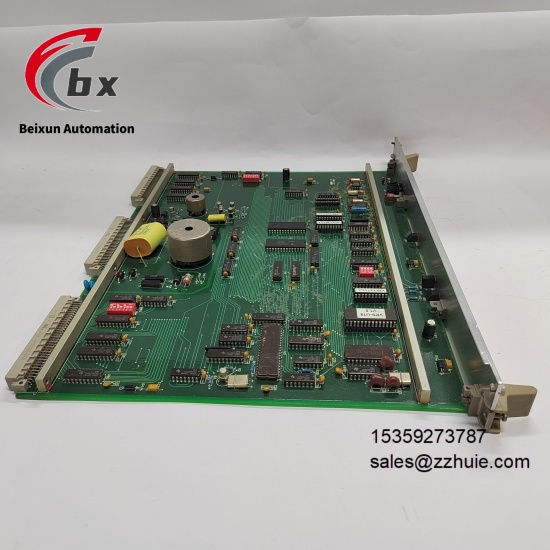

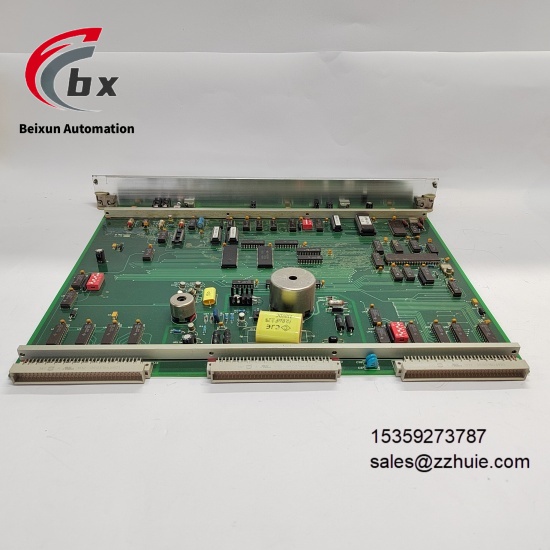

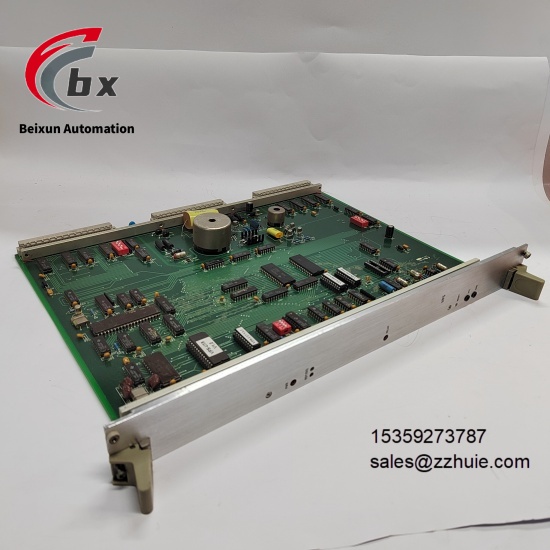

ALSTOM 12004-102-01 VPS BOARD VER.C Power distribution and signal interface board

ALSTOM 12004-102-01 VPS BOARD VER.C Power distribution and signal interface board

SPECIFIC PARAMETERS​

Brand ALSTOM​

Product Series Industrial Control VPS Board Series​

Product Type Power Distribution and Signal Interface Board​

Model 12004-102-01 VPS BOARD VER.C​

Working Voltage Input: 24VDC±10% Output: 5VDC/12VDC/24VDC (Multi-channel Stable Output)​

Working Temperature -40℃ to 70℃​

Storage Temperature -55℃ to 85℃​

Relative Humidity 5% to 95% Non-condensing (No Dew Formation)​

Protection Level IP20 (Board-mounted Installation)​

Installation Method Industrial Standard Rail Installation/Cabinet Backplane Slot Installation​

Power Output 5VDC (3A) 12VDC (2A) 24VDC (1.5A) Three Independent Stable Outputs​

Signal Interfaces 8 Analog Signal Inputs/Outputs (4-20mA) 16 Digital Signal Inputs/Outputs (Dry Contact)​

Isolation Level 2500Vdc Electrical Isolation Between Power Outputs/Signal Channels​

Communication Interfaces 2 RS485 Serial Ports (Modbus RTU) 1 Ethernet Port (TCP/IP)​

Current Consumption Typical 250mA (Input 24VDC) Maximum 350mA (Input 24VDC)​

Size 150mm×100mm×25mm (Length×Width×Height)​

Weight 0.4kg​

Power Consumption Typical 6.0W Maximum 8.4W​

Certification Qualification CE UL IEC 61131-3 IEC 61373 RoHS​

Compatible System ALSTOM Industrial Controllers High-frequency Power Modules Industrial Automation DCS/SCADA Systems Rail Transit Signal Control Systems​

Diagnostic Function Power Overvoltage/Undervoltage Protection Signal Short Circuit Detection Module Self-diagnosis Channel Fault Alarm​

Anti-interference Level Complies with EN 55032/EN 61000-6-2/EN 61000-6-4 Industrial EMC Standards​

Vibration and Shock Resistance Complies with IEC 61373 Class 1 Standard​

MTBF (Mean Time Between Failures) ≥600,000 Hours​

PCB Process Ruggedized FR-4 Material Double-layer Wiring Design​

PRODUCT PERFORMANCE​

Integrates three independent stable power outputs, which can simultaneously provide precise power supply for controllers, sensors and actuators, with high power regulation accuracy and low ripple coefficient, ensuring stable equipment operation​

8 analog and 16 digital signal interfaces, supporting bidirectional signal transmission, combined with 2500Vdc high isolation design, effectively resisting electromagnetic interference and ground loop impact in industrial sites​

Strictly complies with industrial standard communication protocols, realizing seamless data interaction with upper control systems and on-site equipment, with low signal transmission delay and timely command response​

Industrial-grade wide-temperature adaptability, can work stably for a long time in the temperature range of -40℃ to 70℃ and 5%-95% non-condensing humidity environment, adapting to harsh industrial working conditions​

Ruggedized PCB and high-reliability electronic component selection, with extremely strong vibration and shock resistance, complying with IEC 61373 Class 1 reliability standard​

Built-in multiple safety mechanisms such as power overvoltage/undervoltage protection and signal short circuit detection, real-time monitoring of board operation status, fault information is accurately fed back to facilitate rapid troubleshooting​

Compatible with ALSTOM full-series industrial control equipment and third-party automation systems, no additional adaptation modules required, simplifying system integration process and reducing deployment costs​

Compact board-type design, supporting dual installation methods of rail and backplane slot, easy to install and disassemble, can be flexibly integrated into existing control cabinets, saving installation space​
