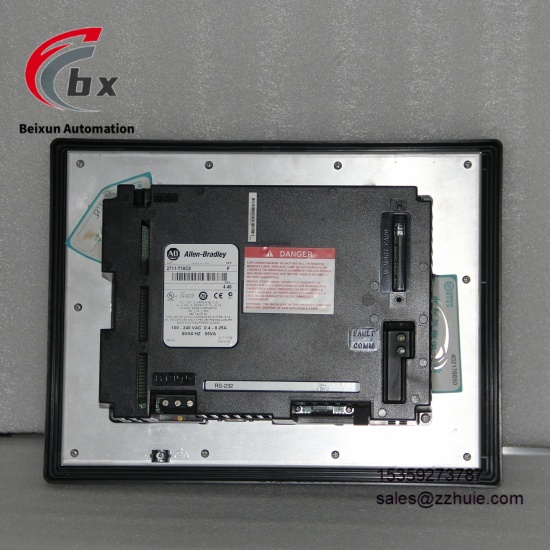

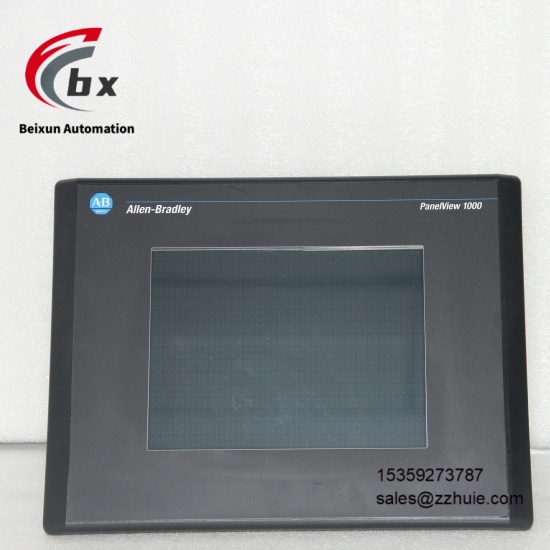

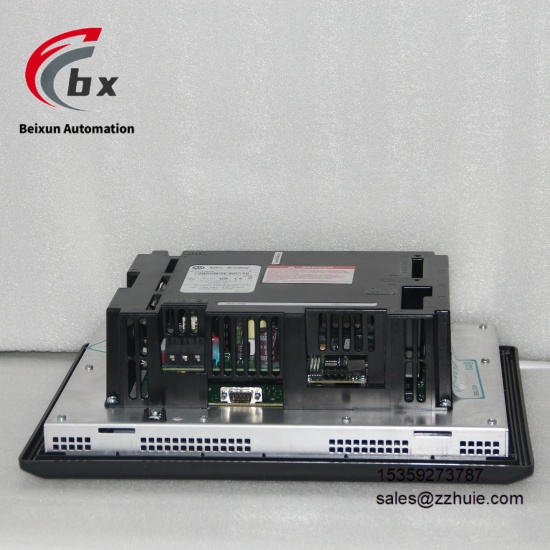

Allen-Bradley 2711-T10C8 Industrial Human Machine Interface (HMI)
Specific Parameters
Brand Allen-Bradley (Rockwell Automation, American Brand)
Product Series PanelView 1000 Series
Product Type Industrial Human-Machine Interface (HMI), Operator Terminal
Model 2711-T10C8
Display Type Monochrome CRT display, amber or green
Screen Size 10.4 inches
Resolution 640×480 pixels
Touch Type Resistive touch screen, supporting glove operation
Communication Interface Supporting DH-485, DF1 (RS-232/422) protocols
Supply Voltage 85-264V AC, built-in switching power supply
Tag Capacity Up to 500 tags
Protection Level Front panel reaches IP65 after installation, compliant with NEMA Type12/13
Operating Temperature Range 0℃ to +55℃
Storage Temperature Range -20℃ to +60℃
Relative Humidity 5% to 95%, no condensation
Certification Compliant with UL, CSA, CE standards, compatible with industrial EMC standards
Programming Software Supporting PanelBuilder 32 software
Real-Time Clock Achievable with external 2711-RTC battery module
Product Performance
Adopts a monochrome CRT display with high brightness, wide viewing angle and strong resistance to ambient light interference, suitable for industrial sites with complex lighting conditions.
Natively supports DH-485 and DF1 protocols, which can be directly connected to Rockwell series PLCs without additional gateways, featuring strong integration.
The resistive touch screen supports glove operation, and the IP65 protection level is dustproof, splashproof and oilproof, adapting to harsh factory environments.
Supports discrete and analog limit alarms, can store alarm history, and can accurately record event timestamps with a real-time clock.
85-264V AC wide voltage input design, built-in switching power supply simplifies wiring, and runs stably in the temperature range of 0℃-55℃.
The graphical interface can be quickly configured through PanelBuilder 32 software, supporting multi-language switching to meet the operation and maintenance needs of different regions.
Solid and reliable structure, excellent anti-electromagnetic interference performance, can maintain stable signals and smooth operation in industrial strong interference environments.
Compatible with a variety of existing PLCs, as a mature product, it can directly replace faulty equipment of the same series, reducing maintenance costs.
