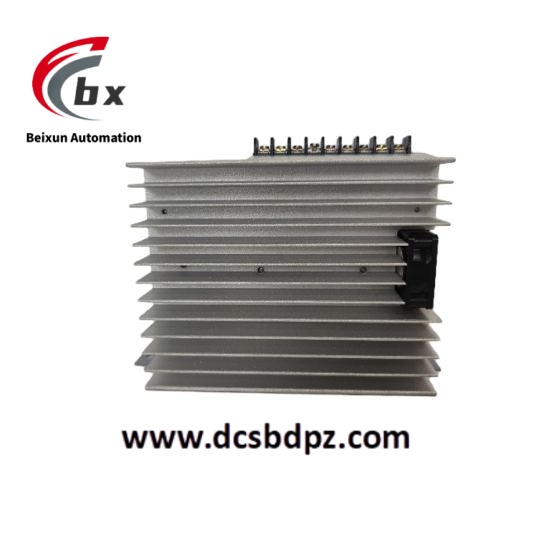

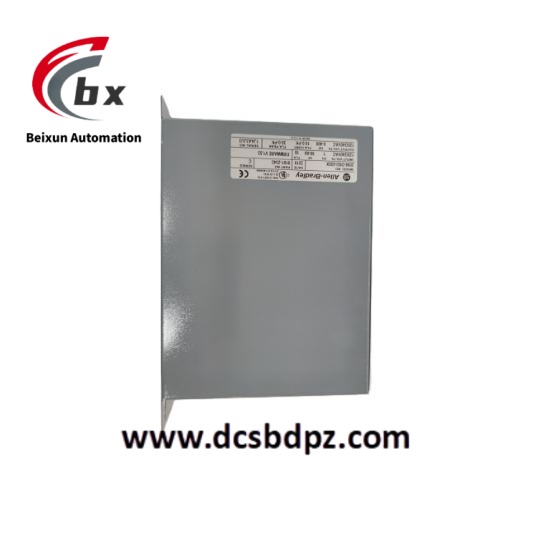

Allen-Bradley 2098-DSD-020X Digital servo drive

Allen-Bradley 2098-DSD-020X   Digital servo drive

Specific parameters

Power parameters: Input voltage is 100-240V AC RMS, single-phase, input frequency is 47-63Hz, nominal input current is 18A RMS.
Output parameters: Output voltage 120/240V AC RMS, three-phase, programmable frequency range 0-400Hz, maximum continuous output current 10A, maximum peak output current 30A. In terms of power output, a continuous output power of 1.0kW is generated when 115V AC is input, and a continuous output power of 2.0kW is generated when 230V AC is input.
Other parameters: Bus capacitance 1880 μ F, bus overvoltage 400V DC. The working temperature is 0-55 ℃, the storage temperature is -40-70 ℃, and the relative humidity is 5-95% without condensation. Work shock 15g (3 pulses, 11 milliseconds), non operational shock 30g (3 pulses, 11 milliseconds), able to withstand 2.5g vibration. The dimensions are 198.12mm × 144.27mm × 98.1mm, and the weight is approximately 2.1kg.

Product Performance
Precise control: accepts feedback position data from Allen Bradley sine/cosine encoders, as well as data from various incremental external encoders, to achieve precise position, speed, and torque control of servo motors.
Strong communication capability: Integrated DeviceNet communication interface, capable of high-speed communication with other DeviceNet supported devices, enabling data exchange and system integration.
Rich features: With built-in indexing function, it can store pre configured servo motor movements, and users can choose pre-defined step modes to simplify the operation process.
Adapting to harsh environments: It has high impact resistance and good vibration resistance, and can maintain optimal function under 2.5g vibration. The impact resistance under working and non working conditions is 15g and 30g respectively, which can adapt to complex and harsh industrial environments.
