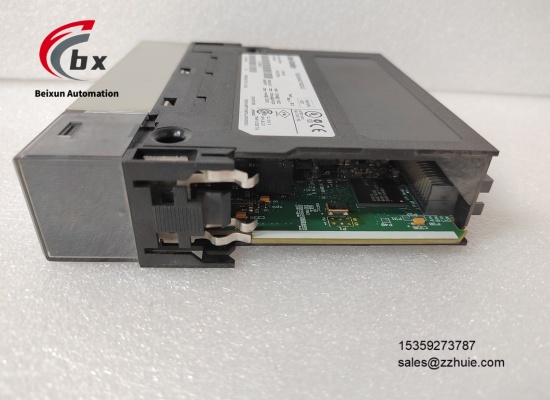

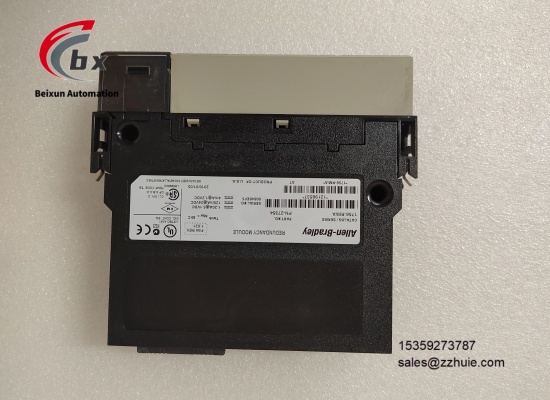

Allen-Bradley 1756-RM/A Redundancy Manager Module
Specific Parameters
Brand Allen-Bradley (Rockwell Automation, American Brand)
Product Series ControlLogix Series Redundancy Module
Product Type Redundancy Manager Module
Model 1756-RM/A
Installation Method Single-slot installation in ControlLogix standard chassis, compatible with 1756-A4/A7/A10/A13/A17 chassis
Power Supply Powered by chassis backplane, 1.2VDC/4mA, 5.1VDC/1.2A, 24VDC/120mA
Power Consumption 9W, heat dissipation 31 BTU/hour
Synchronous Interface DB-9 sync port, matching 1786-TPS and 1786-RPCD fiber optic components
Communication Compatibility Supporting Ethernet/IP, ControlNet network monitoring and diagnosis
Switching Time Less than 50 milliseconds
Operating Temperature Range 0℃ to 60℃
Storage Temperature Range -40℃ to 85℃
Relative Humidity 5% to 95%, no condensation
Protection Level IP20
Compatible Controllers 1756-L55/L60/L61/L62/L63/L64/L65/L71/L72/L73/L74 series, etc.
Programming Software Supporting Studio 5000 Logix Designer, RSLogix5000 software
Physical Weight Approximately 0.29 kg
Certification Compliant with UL, CSA, CE certifications, compatible with industrial EMC standards
Product Performance
High-speed synchronous link design can real-time mirror all data of master and standby controllers, ensuring complete consistency of their states and laying the foundation for seamless switching.
Millisecond-level fault switching capability can quickly trigger switching after detecting master controller failure, and the whole process is transparent to on-site I/O without process interruption.
Supports manual switching function, facilitating system maintenance, upgrade and testing, and enabling master-standby switching without shutdown.
Integrated multi-dimensional status monitoring, intuitively displaying operation, synchronization and master-standby status through front-panel LED indicators, enabling efficient fault diagnosis.
Deeply compatible with ControlLogix series power supplies and I/O modules, supporting redundant power supply configuration to build a system without single points of failure.
Wide temperature adaptation and industrial-grade protection allow long-term stable operation in harsh environments such as high dust and vibration, with reliability meeting the needs of critical control scenarios.
Supports network-level heartbeat monitoring, which can synchronously monitor the communication status of remote I/O and key equipment, further improving the overall availability of the system.
Standardized backplane interface requires no additional wiring for installation, with simple configuration and commissioning, reducing system integration and debugging costs.
