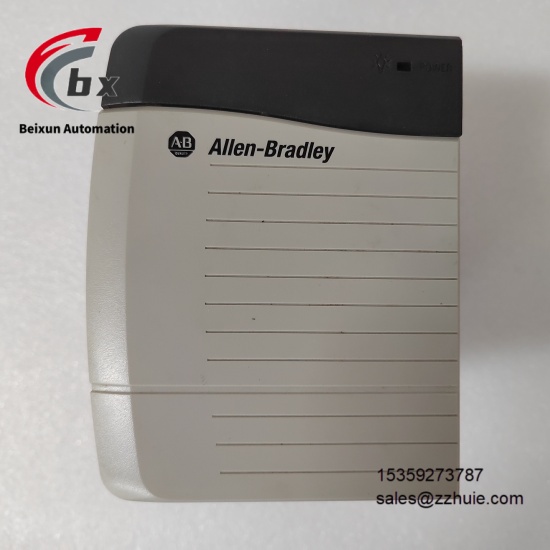

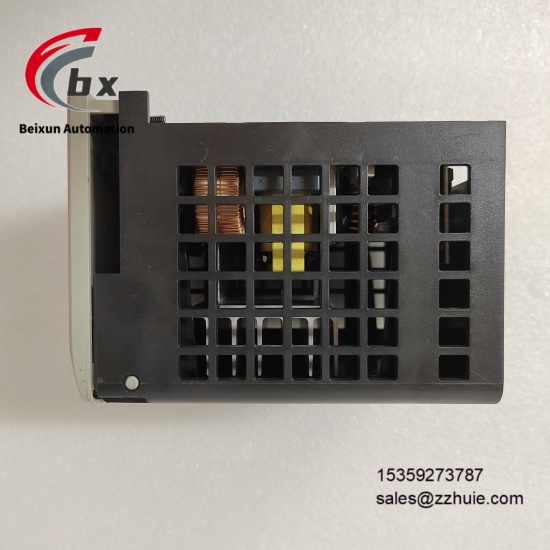

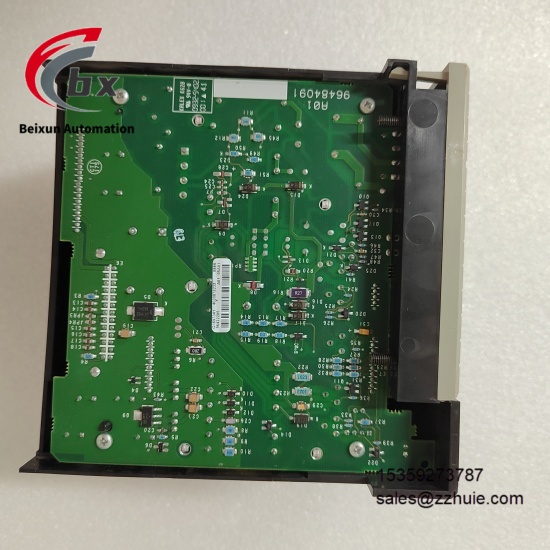

Allen-Bradley 1756-PA72/C AC input power module

Specific Parameters

Brand Allen-Bradley (Rockwell Automation, American Brand)

Product Series ControlLogix Series Power Supply Module

Product Type AC Input Power Supply Module

Model 1756-PA72/C

Input Voltage 85-265VAC, Frequency 47-63Hz (auto-adaptive)

Output Power 75W (under 0-60℃ environment)

Output Voltage and Current 3.3VDC/4A, 5.1VDC/10A, 24VDC/2.8A

Hold-Up Time 5 cycles at 85VAC/50-60Hz, 6 cycles at 120/200/240VAC

Inrush Current 20A

Operating Temperature Range 0℃ to 60℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, no condensation

Protection Level IP20

Isolation Voltage 250V continuous voltage, 3500VDC reinforced insulation test for 60 seconds

Installation Method Dedicated power slot on the far left of ControlLogix chassis, no control slot occupied

Compatible Chassis 1756-A4/A7/A10/A13/A17 and other series standard chassis

Cooling Method Natural convection cooling, fanless design

Protection Functions Overcurrent protection, overvoltage protection, short circuit protection, overheating protection

Physical Dimensions 14.0×11.2×14.5 cm, weight approx. 0.95 kg

Certification Compliant with UL, CE, cUL certifications, compatible with IEC 61131-2 standard

Product Performance

The wide voltage input range can adapt to different industrial power grids around the world, stably output within the range of voltage fluctuation and frequency deviation, without additional adaptation devices.

Multi-voltage level output design can simultaneously supply power to the chassis backplane logic circuit, external 24V sensors and small actuators, simplifying system wiring.

Built-in multiple electrical protection mechanisms, automatically cut off output when abnormalities are detected, preventing fault spread to other control modules and ensuring system safety.

Fanless natural convection cooling design reduces mechanical wear and fault points, adapting to harsh industrial environments such as high dust and high vibration, with long service life.

Exclusive power slot installation does not occupy control slot resources, and can be flexibly matched with various I/O and communication modules, improving chassis space utilization.

High output voltage accuracy and low ripple noise provide stable power supply for high-speed control modules and analog modules, ensuring control accuracy and data correctness.

Industrial-grade protection and wide temperature adaptability can operate stably for a long time under 0-60℃ environment, meeting the installation needs of various industrial sites.

Deeply compatible with ControlLogix series products, seamless integration without additional configuration, reducing system integration cost and debugging cycle.
