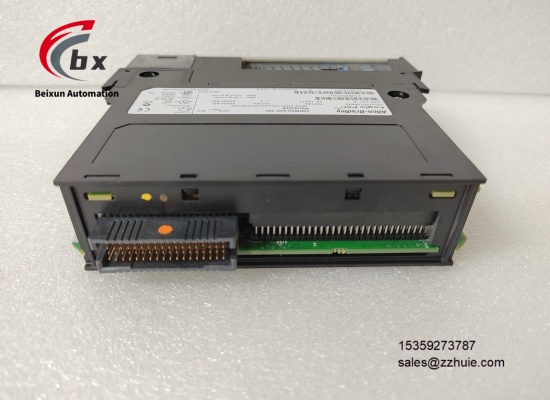

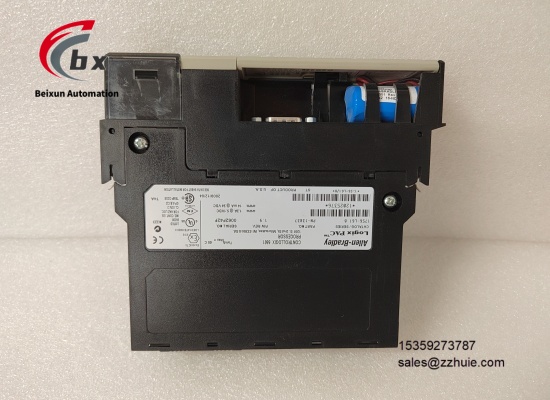

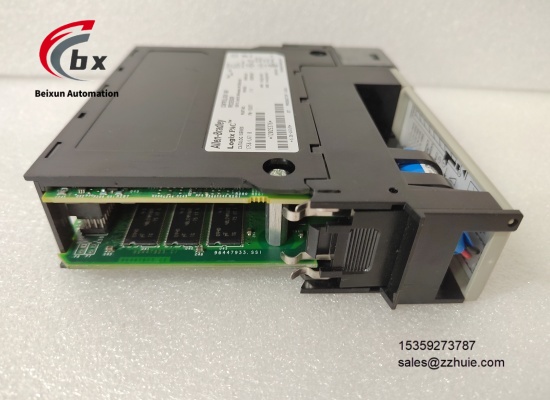

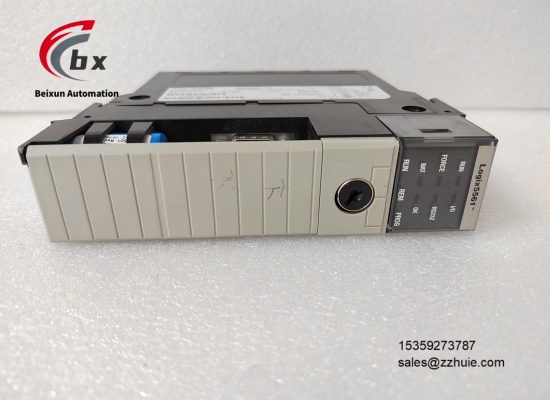

Allen-Bradley 1756-L61/B Programmable Logic Controller

Specific Parameters

Brand Allen-Bradley (Rockwell Automation, American Brand)

Product Series ControlLogix Series PLC

Product Type Programmable Logic Controller (PLC)

Model 1756-L61/B

Operating Voltage 5.1VDC (powered by chassis backplane)

Rated Current 1200mA at 5.1VDC, 14mA at 24VDC

Power Consumption 3.5W, heat dissipation 11.9 BTU/hr

Operating Temperature Range 0℃ to 60℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, no condensation

Isolation Voltage 30V continuous basic insulation, tested at 720VDC for 60 seconds

Vibration Level 2g at 10 to 500Hz

Shock Level 30g during operation, 50g non-operation

Structural Design Modular design, single-slot installation, conformal coating protection

Compatible Chassis 1756 series standard chassis (1756-A4/A7/A10, etc.)

Programming Software Supporting Studio 5000 Logix Designer software

Supported Protocols EtherNet/IP, ControlNet, DeviceNet and other industrial protocols

Certification Compliant with UL, CSA, CE certifications, compatible with industrial EMC standards

Product Performance

Adopting a high-performance processor with fast instruction execution speed, it can efficiently handle complex logic control and process control tasks, ensuring real-time system response.

Conformal coating design combined with wide temperature adaptability can resist moisture, dust and other pollutants, and operate stably in harsh industrial environments with vibration and shock.

Modular architecture supports flexible expansion, and can be matched with digital, analog I/O modules and communication modules on demand to adapt to automation systems of different scales.

Supports multi-industrial protocols and cross-network communication, and can be seamlessly integrated with HMI, SCADA systems, inverters and other equipment to achieve data interconnection.

Equipped with complete fault diagnosis and alarm functions, it can quickly locate fault points with software, simplifying operation and maintenance processes and reducing maintenance costs.

Supports redundant configuration design, which can build a highly reliable control system, avoid system shutdown caused by single point of failure, and improve production continuity.

Compatible with multiple programming languages, including ladder diagram, function block diagram, etc., to meet different programming habits and shorten project development and debugging cycles.

Excellent electrical isolation performance, effectively resisting electromagnetic interference in industrial fields, ensuring signal transmission integrity and control accuracy.
