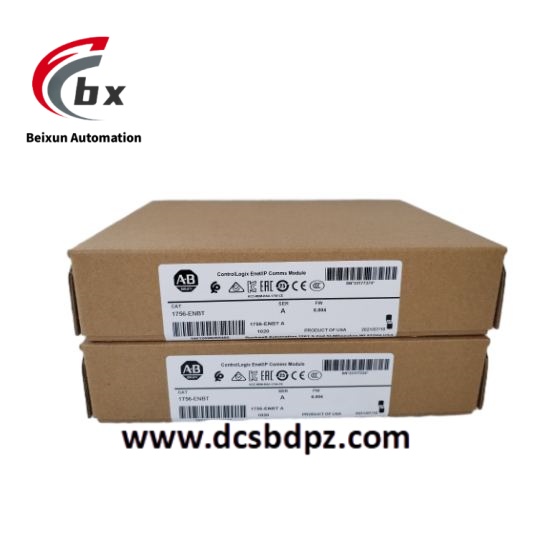

Allen-Bradley 1756-ENBT ControlLogix Ethernet/IP Bridge Module

Specific parameters
Communication capability: capable of handling 64 TCP and 128 CIP connections, with a communication rate of 10/100 Mbps.
Memory: Typically available with 2 MB user memory and 478 kb I/O memory, with an optional 128 MB non-volatile storage memory (using 1784-CF128 CompactFlash memory card).
Current consumption and power consumption: 700 mA at 5.1V DC and 3 mA at 24V DC. Power consumption is 3.7 W and heat dissipation is 12.6 BTU/hour.
I/O capacity: 128000 digital I/O, 4000 analog I/O, total I/O is 128000.
Working temperature: 0 to 60 degrees Celsius, storage temperature is -40 to 85 degrees Celsius.
Physical characteristics: The dimensions are approximately 100 mm x 84 mm x 36 mm, and the weight is 0.71 pounds (0.32 kilograms).

Product Performance
High speed data transmission: capable of transmitting data at a rate of 10/100 Mbps, supporting a large number of TCP and CIP connections, capable of processing up to 5000 I/O packets and 900 HMI/MSG packets per second, meeting the demand for high-speed data exchange in industrial automation.
Powerful control function: supports high-speed processor interlocking, can effectively control distributed I/O, can be used as a remote I/O adapter, convenient for users to remotely control, collect and configure ControlLogix modules.
Easy to diagnose and maintain: Module settings and internal diagnostics can be performed through a standard web browser, such as viewing IP traffic TCP、UDP、 Conflict histograms, connection management, and other information can also be obtained, as well as detailed information such as module versions, addresses, and running times, making it easy to discover and solve problems in a timely manner.
Compatibility and Scalability: It is part of the ControlLogix system and has good compatibility with other modules and devices in the system, as well as backward compatibility, which can protect users’ initial investment and facilitate system expansion and upgrades.
