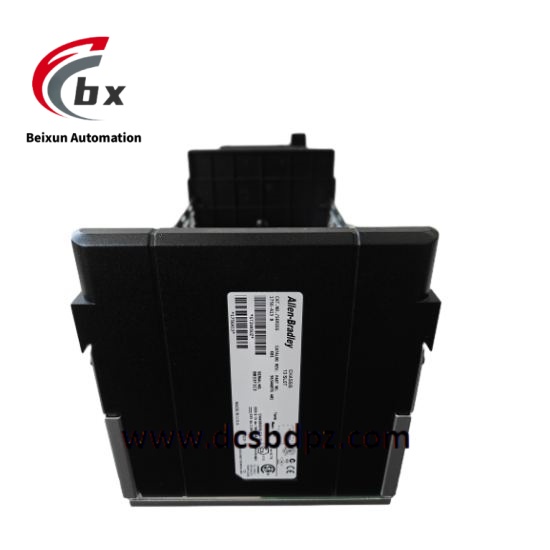

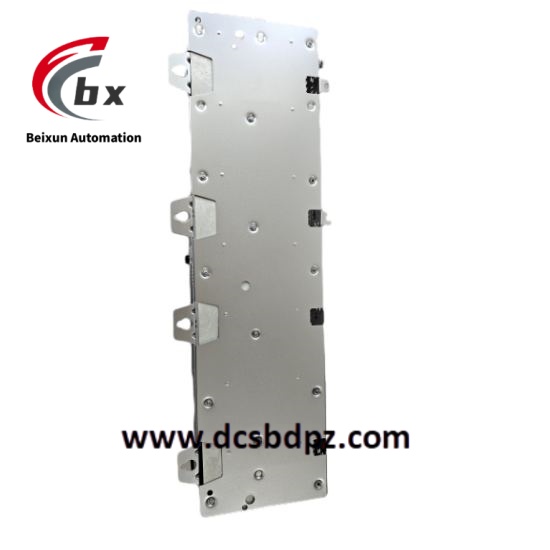

Allen-Bradley 1756-A13 Controllogix Series 13 Slot Chassis

Size: 21.2cm × 59cm × 16.8cm.
Weight: 1.90kg (4.2lb).
Input Voltage: Supports multiple input voltage ranges, typically AC power, and can adapt to different power grid environments.
Working temperature: Series B ranges from 0 ° C to+60 ° C (+32 ° F to+140 ° F); Series C ranges from -25 ° C to+60 ° C (-13 ° F to+140 ° F).
Storage temperature: -40 ° C to+85 ° C (-40 ° F to+185 ° F).
Relative humidity: 5% to 95% (without condensation).
Backplane current: 1.5A at 1.2V DC; 4A at 3.3V DC; 15A at 5.1V DC; 2.8A at 24V DC.
Power consumption: maximum 5.4 watts.
Wiring specifications: 8.3mm ² (8AWG) solid or stranded copper wire for functional grounding, rated temperature of 90 ° C (194 ° F) or higher; The protective grounding is 2.1mm ² (14AWG) solid or stranded copper wire with a rated temperature of 90 ° C (194 ° F) or higher.

Product Performance
High reliability: May support redundant power supply design, can connect two power sources, when one fails, the other takes over the power supply, improving system reliability and stability, suitable for critical industrial control systems.
Stable power supply: It can provide stable output voltage required by the control system, operate reliably under a wide range of power conditions, and adapt to different industrial environments around the world.
High speed communication: The backplane provides a high-speed communication path, ensuring efficient and stable data transmission between modules, which helps improve the response speed and operational efficiency of the entire control system.
Durable and sturdy: able to work normally under certain vibration and impact conditions, with a wide range of temperature and humidity adaptability, and can adapt to harsh industrial environments.
